Automatic A1 Online Newspaper Thermal CTP Machine with 45 Plates Per Hour and 256-Channel Laser Autoloader System

1SET
MOQ
Negotiable
Price
Automatic A1 Online Newspaper Thermal CTP Machine with 45 Plates Per Hour and 256-Channel Laser Autoloader System
Features Gallery Product Description Request A Quote
Features
Specifications
Resolution: 2400dpi
Printing Plate Type: 830nm Thermal CTP Plate Or Chemical Free Processless Plate
Output Speed: 35 To 55pph
Laser Channels: 256CH
Power Consumption: 4KW
Max Plate Size: 1163x940mm
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: T800XA
Document: 256CH High Speed Online The...ix.pdf
Payment & Shipping Terms
Packaging Details: Standard export packing by plywood case
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 500SET
Product Description
Automatic A1 Online Newspaper Thermal CTP 45PPH with Autoloader
Product Overview

EcooGraphix Thermal CTP (Computer To Plate) Plate Making Machine is the essential prepress solution for quick short-run offset printing. It directly outputs computer images to printing CTP plates, eliminating film and reducing labor requirements.

Customers benefit from excellent output image quality, highly reliable stability, compact footprint, and enhanced flexibility.

Technical Specifications
Production Model EcooSetter T-800XA Offline Easy to Use Thermal CTP
Laser Wavelength 830nm
Plate Type Positive Thermal CTP Plate
Exposing Method External Drum
Imaging System 256-channel
Throughput 48 plates per hour (1030mm×800mm at 2400dpi)
Plate Size Max. 1163×940mm, Min. 300×400mm
Plate Thickness 0.15mm to 0.3mm
Resolutions 2,400dpi
Repeatability ±5μm (continuous exposing for four times or above at 23ºC and 60% humidity)
Interface USB 2.0
Weight 900KG
Dimensions 2530×1050×950mm (W×D×H)
Power Supply Single-phase: 220V AC +6%/-10%; Power Consumption: 4KW
Operating Environment Recommended: 21-25ºC, Maximum: 18-26ºC, Humidity: 40-70%
Key Features
256-channel laser light valve for superior imaging quality
High publishing speed - folio version reaches 38-48 sheets per hour (1,030×800 mm, plate sensitivity 100mJ/cm²)
Square light spot imaging increases color saturation by 21% and delicate accuracy by 10 times
Linear motors provide high-precision positioning and long service life, reducing operation and maintenance costs
Detailed Model Specifications
Model T-800F T-800S T-800E
Imaging Diodes 64-channel 48-channel 32-channel
Throughput 28 plates/hour 22 plates/hour 16 plates/hour
Plate Loading Manual or semi-automatic Manual or semi-automatic Manual or semi-automatic
Technology Advantages
  • Superior dot quality reproduction proven by worldwide market: 1%-99% dot reproduction up to 300lpi screening
  • World-class components supplied by international well-known suppliers from Japan, USA, and Germany
  • Long lifetime and warranty: laser diodes lifetime exceeding 10,000 imaging hours (approximately 200,000 plates)
  • 3-year comprehensive warranty with free replacement of all parts
  • Guaranteed service: installation and training by factory technical engineers, regular remote maintenance, and 7x24 hours service response
  • Proven worldwide market leader: Over 6,000 units installed worldwide in the past 10 years
Our Factory

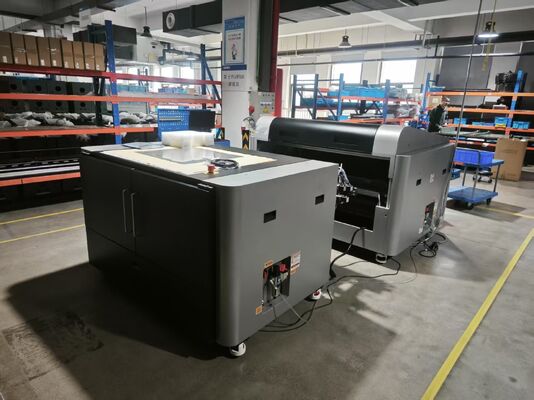

EcooGraphix factory facility showing manufacturing area EcooGraphix production line with CTP machines Quality control station at EcooGraphix factory EcooGraphix technical team working on CTP assembly Finished CTP machines ready for shipment EcooGraphix research and development laboratory Customer training session at EcooGraphix facility
Frequently Asked Questions
What are your main products?
Our main products include Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset printing blankets, and Postpress Packing equipment. We provide complete equipment and consumables solutions with comprehensive after-sales service.
Is there any certification for your CTP machine?
Yes, all our CTP machines are certified by SGS and CE standards.
Can you also supply the Workflow and RIP?
Yes, we provide Workflow Brain New and RIP Compose V13 software solutions.
Where is your factory located?
Our factory is in Hangzhou city, approximately 1 hour by train from Shanghai.
What is the production time?
Standard production time is 20 days, slightly longer for customized models.
What is the warranty period for the machine?
3-year warranty for CTP machines. If customers use EcooGraphix CTP plates, all CTP parts are guaranteed for lifetime with no service charge.
