Name: Lifetime Warranty Thermal CTP Printing Plate Machine OEM
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-G
Price: 3.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Application: Commercial Printing

Long Impression: 100,000 Impressions Actual Run Length Depends On Printing Conditions

100,000 Impressions Actual Run Length Depends On Printing Conditions: 130-150 Mj/ M²

Spectral Sensitivity: 800-850 Nm

Image Color: Blue

Highlight:

800-850 nm Thermal CTP Plate

100 000 impressions Thermal CTP Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO,CE

Model Number: ECOO-G

Document: EcooGraphix Solutions.pdf

Payment & Shipping Terms

Packaging Details: Standard Exporting Plywood Boxes

Delivery Time: 30 DAYS

Payment Terms: T/T

Supply Ability: 200, 000 Square Meter/Year

Gallery

Lifetime Warranty Thermal CTP Printing Plate Machine OEM

Product Description

Lifetime Warranty Thermal CTP Printing Plate Machine OEM

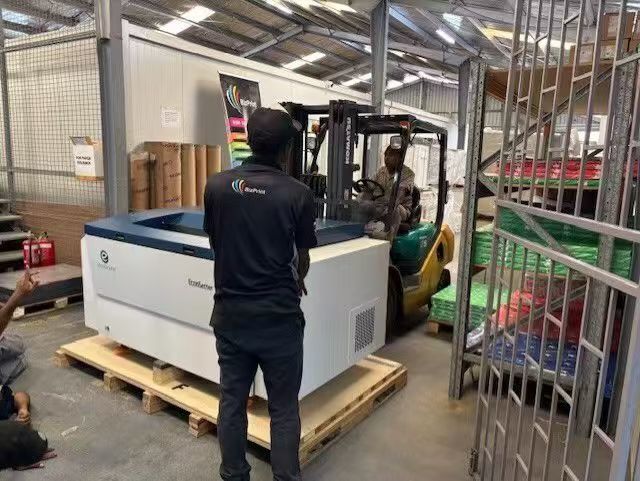

African Market has been an integral part and critical for EcooGraphix global strategy. A well established distributionchannel and service infrastracture are fundamental for customer satisfaction. EcooGraphix relentlessly grow andestablish service infrastruature globally. By 2026 beginning, EcooGraphix already set up supply chain and servicenet work across African Continent with 16 countries. Mainly for EcooSetter CTP equipments and plates and etc.EcooGraphix is pleased to have 5 local technicians servicing our CTP customers in Africa. They are Mr.Corrie inSouth Africa, Mr.Ben in Ghana, Mr.Kokou Cotediva, Mr.Yusuf in Nigeria and Mr. Hamza in Tunise. EcooGraphix iscommitted to providing 7x24 hours CTP NO-down time service with complete satisfaction guarentee.

Technical Specifications

EcooSetter T800/400 Series Thermal CTP Specifications
Model	T-800F	T-800S	T-800E	T-400F	T-400S	T-400E
Exposing Mothod	External Drum
Imaging System	64-channel	48-channel	32-channel	48-channel	32-channel	24-channel
	Discrete 830nm laser diode
Throughput	28PPH	22PPH	16PPH	28plates/hour	22plates/hour	16plates/hour
	1030mm x 800mm, 2400dpi			800mm x 660mm ,2400dpi
Plate Sizes	Max.1163mm x 940mm Min.300mm x 260mm			Max.800mm x 660mm Min. 260mm x 300mm
Exposing Size	Max.1160mm x 930mm Min.260mm x 284mm			Max.800mm x 646mm Min. 260mm x 284mm
Media Type	830nm thermal CTP plate
Plate Thickness	0.14mm to 0.30mm
Resolution	2400dpi
Repeatablity	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	USB 2.0
Plate Loading	semi automatic
Net Weight	900kg			800kg
Machine Size (WxLxH)mm	2530x1050x950			1900x1200x1000
Power Supply	single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment	recommended:21-25℃, Max.18-26℃, humidity:40-70%

Complete Product Range

• All formats available:

– 400 format(800X660mm plate size),

– 800 format (1130X920mm plate size),

– VLF(very large format) (1680X1350 plate size)

- Photopolymer Cliche CTP for Flexo Printing

• Manual loading/unloading and full automatic models available

Ordering & Support Information

Lead Time	30 calendar days from deposit confirmation
Payment Term	30% deposit via T/T, 70% balance before shipment
Packaging Term	Export-grade cartons with ECOO labels, custom packaging available
Shipment Term	FOB, CIF, or DDU options available
Free Samples	Up to 10 sample plates available for testing
