Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating

1SET
MOQ
Negotiable
Price
Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Varnishing Coating Machine
Application: Paperboard, Paper Printed
Max.sheet Size: 730x1060mm
Min.sheet Size: 310X406mm
Max. Coating Size: 720x1040mm
Sheet Thickness: 80-500gsm
Production Speed: 9000sheets/hour
Weight: 8T
Dimension: 10460x2725x1930mm
Power: 44KW
Highlight:

9000 sheets/hour UV Varnishing Machine

,

730x1060mm UV Coating Machine

,

Teflon conveying belt Varnishing Coating Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoo SD-1060
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 300 Sets Per Year
Product Description
Automatic Coating Machine For Superior UV Spot And Overall Varnish Coatings
UV Coating Machine model: Ecoo-SD-1060

The High-Speed UV Spot and Overall Coating machine operates at a maximum speed of 9000 sheets per hour using an upper-swaygripper-pass-sheet method. Its UV curing system is equipped with a Teflon conveying belt which ensures higher speed, precise orientation, higher efficiency in UV curing, and lower power consumption. With this machine, you can achieve high-speed production and quality UV coating.
By using a UV coater and a Teflon belt, we can ensure that sheets are treated without causing damage or deformation to the grippers. This prevents any potential maintenance issues and allows for easy upkeep. Plus, we can rest easy knowing that high temperatures from UV light won't cause any harm. All in all, this solution makes for a smoother and more efficient process.

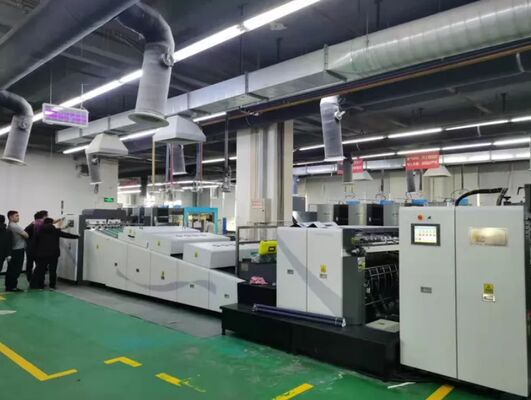

Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating 0
Key Features
High-Speed Feeder
Equipped with four suction cups and four forwarding suction cups, our feeder ensures smooth and efficient sheet feeding.
Sheet Transferring Unit
Our upper swing sheet transferring method guarantees precise and seamless transfer of sheets at high speed to the pressure cylinder.
Enhanced Varnish Delivery System
Our advanced varnish delivery system is equipped with steel and rubber rollers, along with a metering roller that allows for easy control over varnish consumption and volume. Additionally, our innovative doctor blade design ensures consistent and precise application of the varnish, meeting the demands of your products. (Varnish consumption and volume can be determined by the LPI of the ceramic anilox roller.) With this system, you can operate smoothly and efficiently without any hassle.
Transferring Unit
The gripper transfers sheets from the pressure cylinder and the air volume blowing function ensures smooth and scratch-free transfer.
Conveying Unit
The upper and lower conveyor belts gently curve thin sheets for smooth delivery without any surface damage.
Sheet Delivery
The Sheet Delivery system is designed to make sheet pile delivery effortless and efficient. It uses an automatic pneumatic patting mechanism that is controlled by a photoelectric detecting sensor to ensure that sheets are stacked neatly. Additionally, the electronic control allows for the safe and quick retrieval of sheet samples for inspection. With this system in place, sheet delivery is sure to be smooth and hassle-free.
Specifications
Model Ecoo SD-1060
Max. sheet size 730x1060mm
Min. sheet size 310X406mm
Max. coating size 720x1040mm
Sheet thickness 80-500gsm
Coating registration accuracy ±0.2mm
Production speed 9000sheets/hour
Weight 8T
Dimension 10460x2725x1930mm
Power 44KW
Remark: Production speed depends on sheet weight, size, and quality
Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating 1 Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating 2 Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating 3
Machine Spare Parts List
No. Description Specification Qty Remark
1 Rubber Roller Φ165.3×1118 1PC The ceramic roller is not equipped.
2 Doctor Blade 0.15*50*1150 1PC
3 Floor Pad Plate 12PCS
4 Chain Link 5/8" 1PCS
5 Chain Link 1/2" 1PCS
6 Chain Link 3/4" 1PCS
7 Tool Box 1PCS
8 Inner Hexagon Spanner 1.5,2,2.5,3,4,5,6,8,10 1SET
9 Spanner 12" 1PCS
10 Screw Driver 1PCS
11 Screw Driver 1PCS
12 Fixing Spanner 5.5-7,8-10-9-11,12-14,13-16,14-17,17-19,22-24 1SET
13 Wooden Piece 4PCS
14 Grease Port (Straight) M6x1 5PCS
15 Grease Pipe Jointer (Straight) M6x1xΦ6 5PCS
16 Grease Pipe Jointer (curve) M6x1xΦ6 5PCS
17 Screw M10x80 10PCS
18 Operation Manual 1SET
19 User Manual to Inverter 1SET
20 Pump Instruction Manual As per supplier 1SET
Production and Packaging
Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating 4 Automatic UV Varnishing Machine with Teflon Conveying Belt for 9000 Sheets/Hour and 730x1060mm Coating 5
Frequently Asked Questions
What is your warranty?
Normally 1 year.
What is the Lead Time?
Usually 45 days, and we will try our best to meet your demands.
What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. If you have any problems or questions, we will be at your disposal 7x24 hours.
