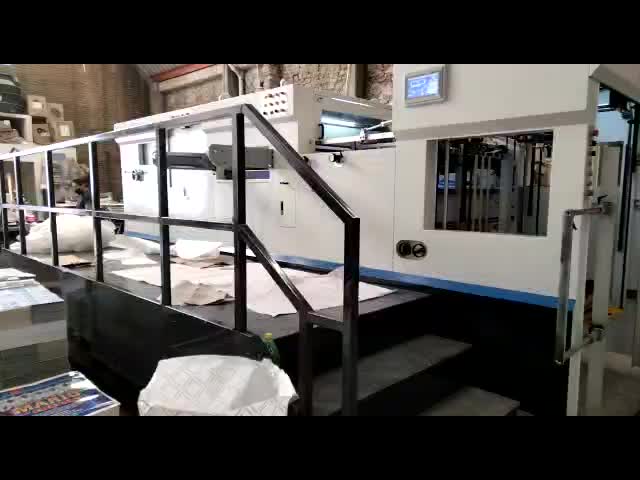

EcooGraphix Die Cutting And Stripping Machine
Max. Sheet 1080mm Die Cutting and Stripping Machine
The fully automatic flat-bed die-cutting machine with waste stripping is meticulously crafted to provide exceptional precision and efficiency in the production of labels and packaging. Featuring a cutting-edge integrated waste stripping system, it guarantees the clean and accurate removal of excess material, significantly reducing the need for manual intervention and ensuring consistently high-quality results.
Product Parameters
| Model | Ecoo-1080BQ |
| Max. Sheet size(mm) | 1080 x 780 |
| Min. Sheet size(mm) | 400 x 330 |
| Max. Die cutting size(mm) | 1075 x 770 |
| Inside chase size(mm) | 1100 x 790 |
| Cutting plate size | 1080 x 780 |
| Min.gripper margin(mm) | 7 |
| Die cutting accuracy(mm) | ≤ ±0.1 |
| Max.pressure(T) | 300 |
| Max.machine speed(s/h) | 7000 |
| Feeding pile height(mm) | 1550 |
| Delivery pile height(mm) | 1400 |
| Stock range | White board paper: 0.1～2 mm; corrugated paper: ＜4 mm |
| Power | 17.8kw |
| Dimension(mm) | 5880(+1650) x 2100(+1600) x 2350 |
| Weight(T) | 17.6 |
Key Features
1. Die-Cutting Plate Frame and Bottom Plate Mechanism
The die-cutting plate frame and bottom plate mechanism feature a humanized design, enabling quick and convenient plate loading and adjustment. This user-friendly system minimizes setup time and enhances operational efficiency, ensuring smooth and precise die-cutting performance.
2. (Optional) Three-Frame Linkage Mechanism with Waste Removal Function
The optional three-frame linkage mechanism includes a waste removal function, designed for ease of use. Its humanized design allows for fast and convenient installation and adjustment of the waste removal plate, streamlining the production process and improving workflow efficiency.
3. Pneumatic Plate Locking Device
The pneumatic plate locking device ensures the plate frame is securely fastened, providing firm and accurate positioning. This feature saves time during setup and enhances the precision of the die-cutting process, contributing to consistent and high-quality output.
4. Front Gauge, Side Gauge, and Paper Feeder Fine-Tuning Device
Equipped with front gauge, side gauge, and paper feeder fine-tuning devices, the machine ensures highly accurate paper positioning. These components work together to optimize alignment, reducing errors and improving the overall quality of the finished product.
5. Photoelectric Level Control for Double Sheets, Crooked Sheets, and Empty Sheets
The photoelectric level control system detects and corrects issues such as double sheets, crooked sheets, and empty sheets, ensuring accurate and stable paper feeding. This feature minimizes material waste and enhances production efficiency, making it ideal for high-precision applications.
Technical Specifications
The worm gear and worm are constructed from top-grade, high-strength materials, offering superior wear resistance and extended operational longevity. Engineered to endure the challenges of high-intensity usage, these components provide consistent and dependable performance while minimizing maintenance requirements, even under the most extreme working conditions.
The machine incorporates a two-sided push-pull dual-purpose side regulation system, enabling precise alignment adjustments from both sides for optimal accuracy. It includes an electromechanical double sheet detector to ensure flawless sheet feeding and eliminate double-sheet issues. The main paper feeding table can be switched seamlessly without halting operations, maintaining continuous production flow. Furthermore, the super wear-resistant polyurethane paper conveying rollers offer exceptional durability and ensure smooth, reliable paper handling, even during high-volume and demanding production runs.
The pressure-bearing parts are high-strength ductile iron QT500, which has high strength and never deforms. Alloy steel crankshaft treated with special process.
