Name: VD3350 Digital Label Die Cutter With Slitting And Laminating
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: VD3350
Price: 50,000.00 USD
Availability: InStock

VD3350 Digital Label Die Cutter With Slitting And Laminating

1SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Max Roller Diameter: 450mm

Max Label Width: 330mm

Cutting Blades: Max 4pcs

Cutting Speed: Max 27m/min

Warranty: One Year

Weight: 1400KGS

Max Width: 288 To 330mm

Applications: Die Cutting,Laminating,Slitting ,Sheet Cutting

Highlight:

Digital Label Die Cutter

Slitting Digital Label Die Cutter

Laminating Digital Label Die Cutter

Basic Infomation

Place of Origin: CHINA

Brand Name: ECOOGRAPHIX

Certification: CE

Model Number: VD3350

Payment & Shipping Terms

Packaging Details: standard export packing

Delivery Time: about 20days

Payment Terms: L/C, T/T

Supply Ability: 300SET

Gallery

VD3350 Digital Label Die Cutter With Slitting And Laminating

Product Description

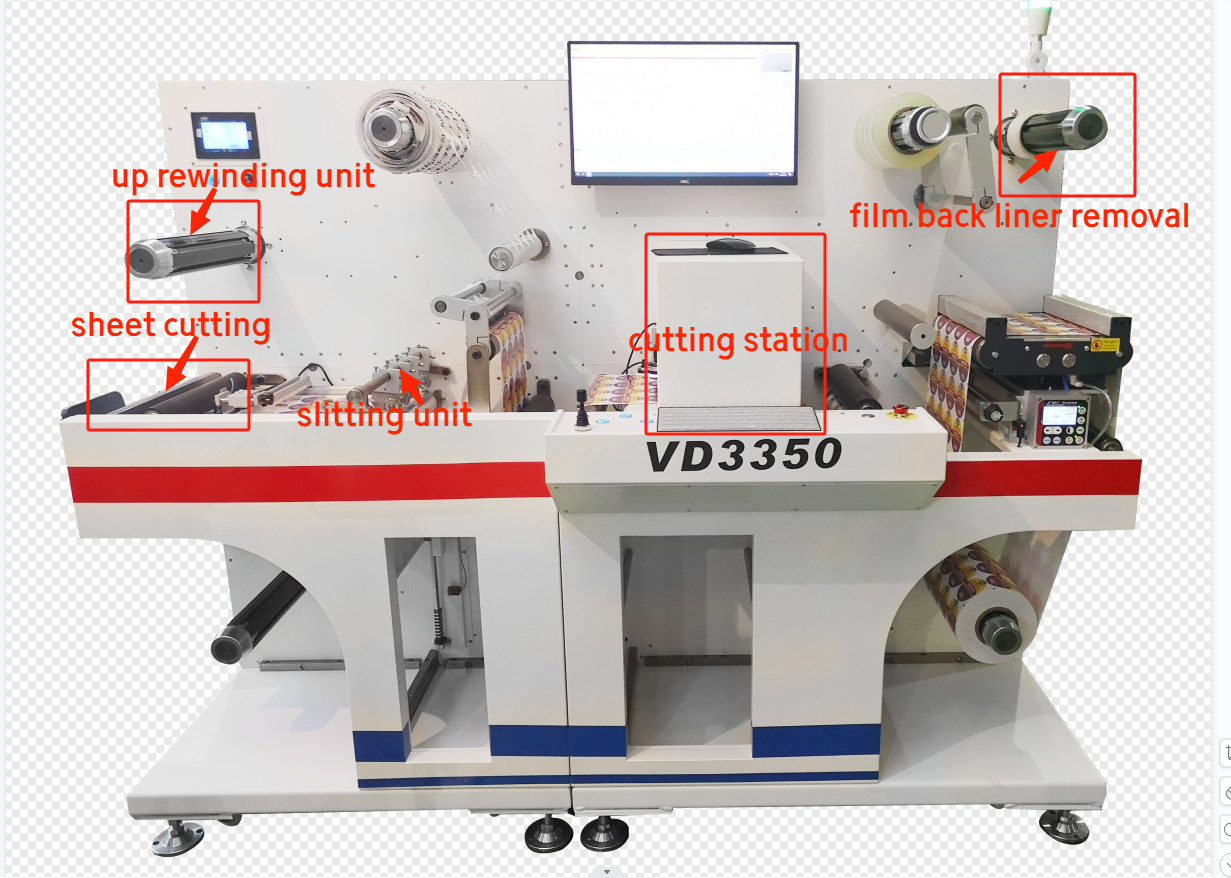

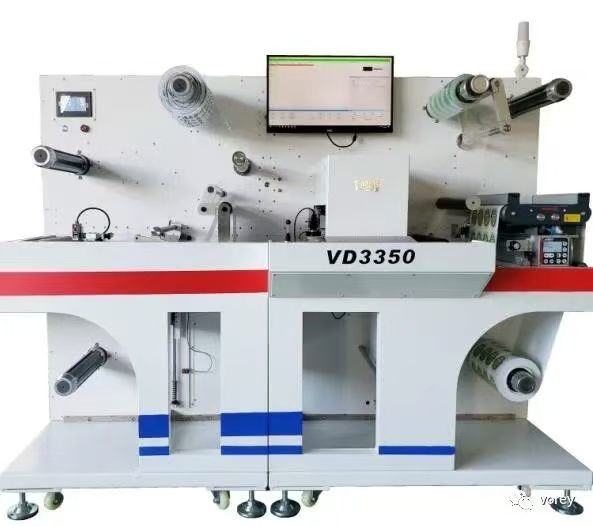

Digital Label Die Cutter with Slitting and Laminating VD3350

Use the unique and intelligent digital die-cutting technology of our VD3350 high speed digital label due cutter, automatically choose cutting file and adjust te heads distance. Cutting by four heads*3 units simultaneously. You do not need to worry about the production of small and medium batch labels. What is more important is it reduces the manual intervention and greatly improves the work efficiency compared with the previous digital cuttings.

Product Details:

1. High precisions feeding system

Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.

2. Cold laminating

It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.

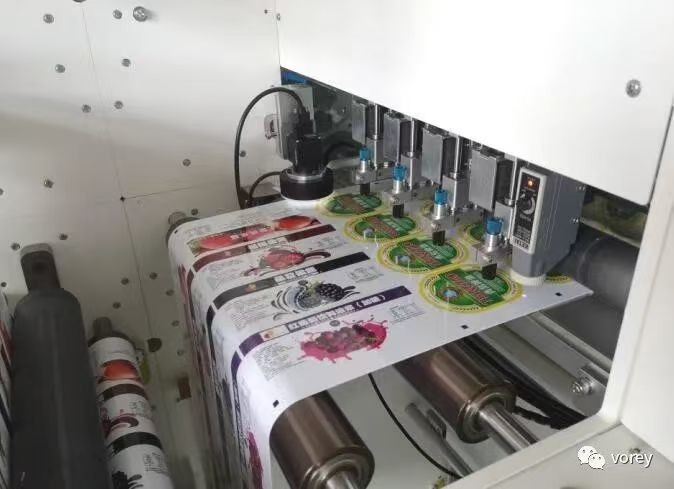

3. Digital die-cutting system

VD3350 utilizes high precision screw transmission system.

Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.

4. CCD identify system

The CCD camera position and identify system,can recognize the sequence, to reach the function of changing file and cutting next graphics automatically.

5. The waste removing system

Dual mechanical force expansion control, multi-angle waste discharge frame, can uniformly remove waste, avoid uneven strength caused by intermittent waste discharge, make the product clean and tidy.

6.Built-in sheet cutting system

Optional built-in PC350 slitter to realize wired cutting and

synchronous die-cutting and sheet cutting.

VD3350 Digital Label Die Cutter With Slitting And Laminating 0

VD3350 Digital Label Die Cutter With Slitting And Laminating 1

VD3350 Digital Label Die Cutter With Slitting And Laminating 2

VD3350 Digital Label Die Cutter With Slitting And Laminating 3

VD3350 Digital Label Die Cutter With Slitting And Laminating 4
