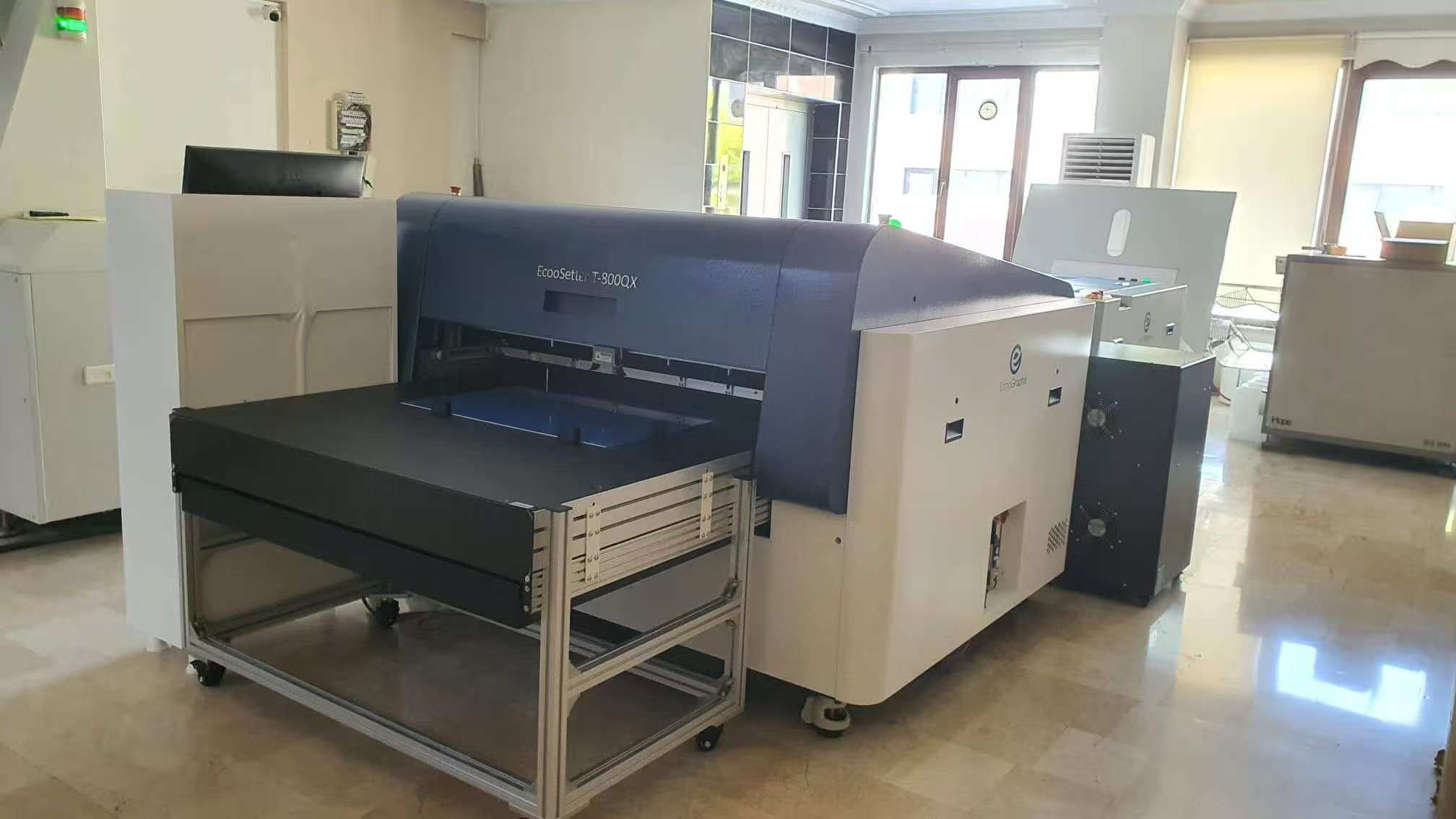

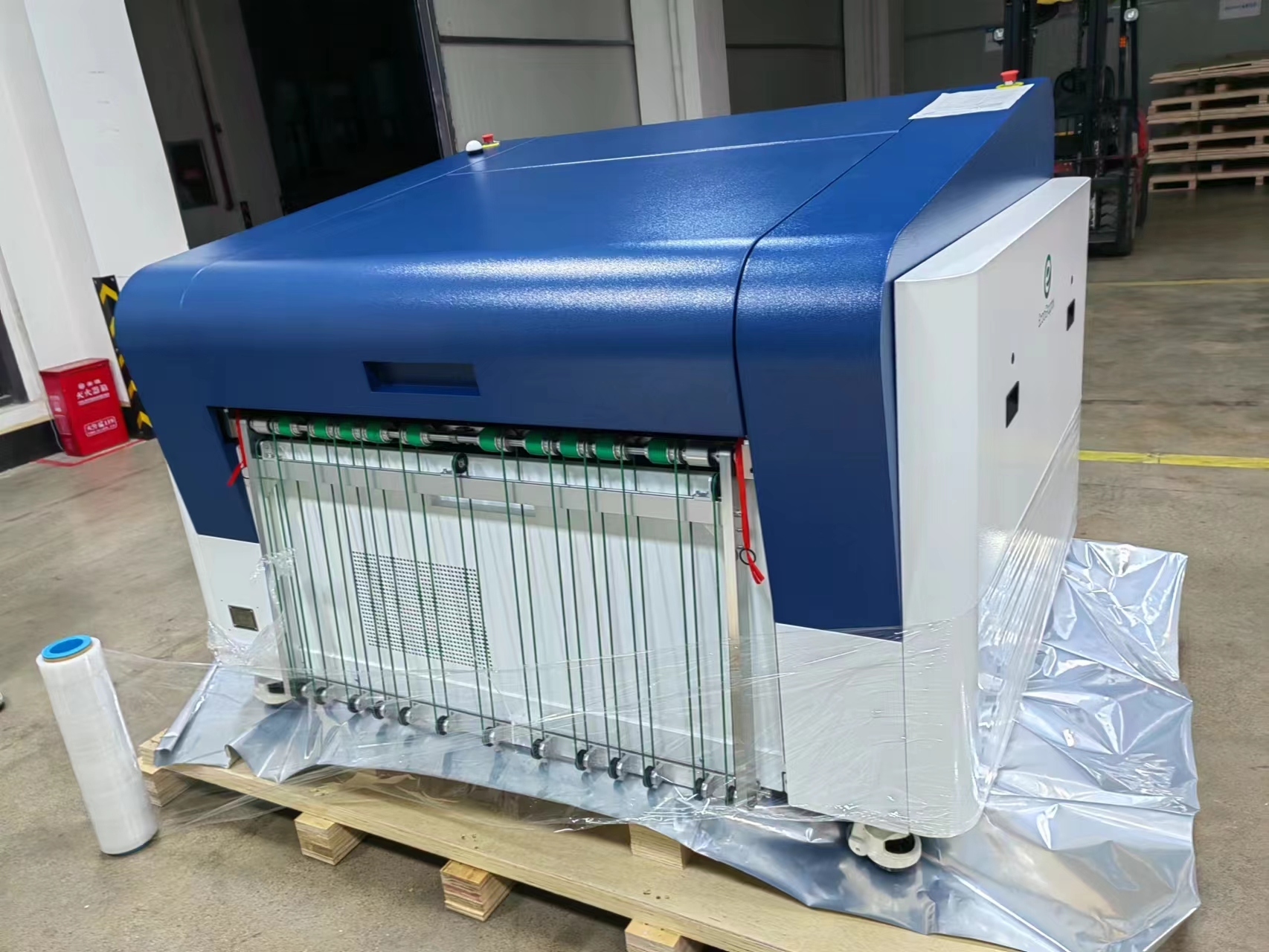

High-Performance Automatic Thermal CTP Plate Making Machine
Model: T-800Q
Specification:
| Model |
T-800QE |
T-800QS |
T-800QH |
| Exposing Method |
External Drum |
| Imaging System |
32-channel |
48-channel |
64-channel |
| Discrete 830nm laser diode |
|
Throughput
|
16PPH |
22PPH |
28PPH |
| |
1030mm x 800mm, 2400dpi |
| Plate Sizes |
Max.1163mm x 940mm
Min.400mm x 300mm |
| Exposing Size |
Max.1163mm x 924mm; Min.400mm x 284mm |
| Plate Thickness |
0.15mm to 0.30mm |
| Resolution |
Standard resolutions 2,400dpi |
| Repeatability |
±0.01mm |
| Interface |
Optical fiber / GB Ethernet |
| Plate Loading |
Automatic load: Single cassette |
|
Plate Loading Quantity
(0.27mm Plate)
|
Single cassette unit: 100 plates
|
| Auto slip Paper Collection Bin |
Included in Autoloader |
| Bridge to Processor |
Included |
| Punching System |
Option: Internal punching (Max. four sets of plate holes) |
| Net Weight |
985kg |
| Machine Size (WxLxH)mm |
1,900 X 2,431 X 1,356 mm (LXWXH) |
| Power Supply |
Single phase: 220V, Power: 4.2KW(Peak value), 2KW (Average) |
| Environment |
Operating temperature range: 15-30°C
Recommended temperature:21-25°C Humidity: 40%-70%
|
Overall Performance Improvement:
Linear motor:
In addition to high acceleration, linear motor drive offers extremely stable operation and high positioning accuracy.
Motor direct drive drum:
The application of direct motor driving drum technology makes start-up time accelerated and greatly improves production efficiency.
Full-automatic plate making with Inline punch option:
Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function (as an option), it can work continuously without interruption to maximize the performance.
Automatic plate loading cassette:
Large capacity automatic plate loading system can load 100 plates at the same time, and also a manual plate insert path is included.
FAQ:
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processo. There are over 3000 sets CTPs installed worldwide.
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!
3. What is your warranty for the CTP?
Three years' laser head and main spare parts for the CTP, one year for the processor.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training.
The buyer should take the round air plane tickets and service charge and the local accommodation cost.
Any problems or questions, we will be at your disposal 7x24 hours.
