Home /Products/CTP Plate Machine/High-Performance 64-Channel Automatic Thermal CTP Plate Making Machine with 2400dpi Resolution and 28 Plates/Hour Output

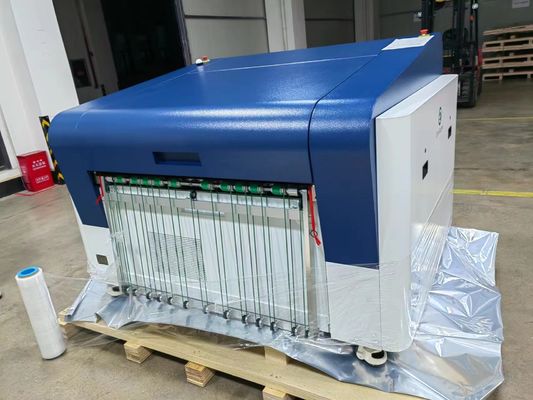

High-Performance 64-Channel Automatic Thermal CTP Plate Making Machine with 2400dpi Resolution and 28 Plates/Hour Output

1SET
MOQ
Negotiable
Price
High-Performance 64-Channel Automatic Thermal CTP Plate Making Machine with 2400dpi Resolution and 28 Plates/Hour Output
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Online Plate Making Machine
Imaging System: 32/48/64 Channel
Max. Output Speed: 16/22/28 Plates/hour; 1030mm X 800mm, 2400dpi
Plate Size: Max.1163mm X 940mm Min.400mm X 300mm
Resolutions: Standard Resolutions 2,400dpi
Plate Thickness: 0.15mm To 0.30mm
Interface: Optical Fiber /GB Ethernet
Plate Loading: Automatic Load: Single Cassette
Plate Loading Quantit (0.27mm Plate): Single Cassette Unit (SCL):100 Plates
Bridge To Processor: Included
Device Size: 1,900 X 2,431 X 1,356 Mm (LXWXH)
Highlight:

Automatic CTP plate making machine

,

High-resolution thermal CTP machine

,

Industrial CTP plate machine with warranty
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: EcooSetter T-800Q
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 500 SETS/YEAR
Product Description
High-Performance Automatic Thermal CTP Plate Making Machine With High Resolution
High-Performance Automatic Thermal CTP Plate Making Machine
T-800Q Thermal CTP Plate Making Machine
Model: T-800Q
Specifications
Model T-800QE T-800QS T-800QH
Exposing Method External Drum
Imaging System 32-channel 48-channel 64-channel
Laser Type Discrete 830nm laser diode
Throughput 16PPH 22PPH 28PPH
Plate Sizes Max. 1163mm x 940mm
Min. 400mm x 300mm
Exposing Size Max. 1163mm x 924mm
Min. 400mm x 284mm
Plate Thickness 0.15mm to 0.30mm
Resolution Standard resolutions 2,400dpi
Repeatability ±0.01mm
Interface Optical fiber / GB Ethernet
Plate Loading Automatic load: Single cassette
Plate Loading Quantity (0.27mm Plate) Single cassette unit: 100 plates
Auto Slip Paper Collection Bin Included in Autoloader
Bridge to Processor Included
Punching System Option: Internal punching (Max. four sets of plate holes)
Net Weight 985kg
Machine Size (WxLxH)mm 1,900 X 2,431 X 1,356 mm (LXWXH)
Power Supply Single phase: 220V, Power: 4.2KW (Peak value), 2KW (Average)
Environment Operating temperature range: 15-30°C
Recommended temperature: 21-25°C
Humidity: 40%-70%
Overall Performance Improvement
  • Linear motor: In addition to high acceleration, linear motor drive offers extremely stable operation and high positioning accuracy.
  • Motor direct drive drum: The application of direct motor driving drum technology makes start-up time accelerated and greatly improves production efficiency.
  • Full-automatic plate making with Inline punch option: Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function (as an option), it can work continuously without interruption to maximize the performance.
  • Automatic plate loading cassette: Large capacity automatic plate loading system can load 100 plates at the same time, and also a manual plate insert path is included.

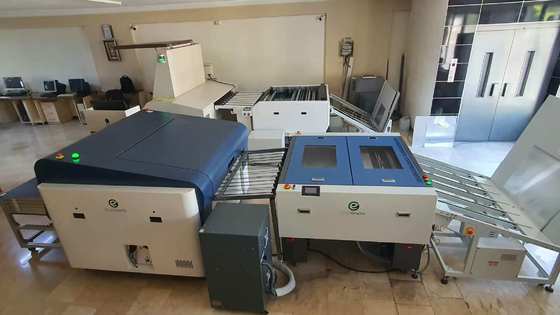

CTP Machine Performance Features CTP Machine Operation View
Frequently Asked Questions
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processo. There are over 3000 sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. We also have five offset plates production lines producing the thermal CTP plate (single and double layers), positive CTCP plates (single and double layers) and Chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!
3. What is your warranty for the CTP?
Three years' laser head and main spare parts for the CTP, one year for the processor.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
