Name: Plate Thickness Ranging From 0.14mm To 2.84mm For FL-600 Flexo CTP Plate Making Machine
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoosetter FL-600
Price: 150000.00 USD
Availability: InStock

Plate Thickness Ranging From 0.14mm To 2.84mm For FL-600 Flexo CTP Plate Making Machine

1SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Application: Label And Trademark

Plate Type: Heat Corrosivefilm, Digital Water Washed Letterpress, Digital Water Washed Flexoplate, Digital Solvent Washed Flexoplate, Thermal PS Plates

Imaging System: 16/32-Channel

Speed: 1.25/2.5 M2 Plates/Hour

Resolutions: 4000 Dpi

Max.Output Size: 430mm X 680mm

Plate Thickness: 0.14mm To 2.84mm

Focus Adjust: Manual Load And Unload

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: CE; ISO

Model Number: Ecoosetter FL-600

Payment & Shipping Terms

Packaging Details: Standard Exporting Package

Delivery Time: 30 DAYS

Payment Terms: T/T

Supply Ability: 500 SETS/YEAR

Gallery

Plate Thickness Ranging From 0.14mm To 2.84mm For FL-600 Flexo CTP Plate Making Machine

Product Description

EcooGraphix Flexo CTP Plate Machine FL-600

Plate Thickness Ranging From 0.14mm To 2.84mm For FL-600 Flexo CTP Plate Making Machine 0

Production Description:

Maximum engraving size: 680mm x 430mm;

Plate type: Heat corrosivefilm, Digital water washed letterpress, Digital water washed flexoplate, Digital solvent washed flexoplate, Thermal PS plates;

Application: Label, logo printing and publishing solutions;

Perfect rendering of details, comparable to offset printing quality;

Average laser life of 10,000 hours.

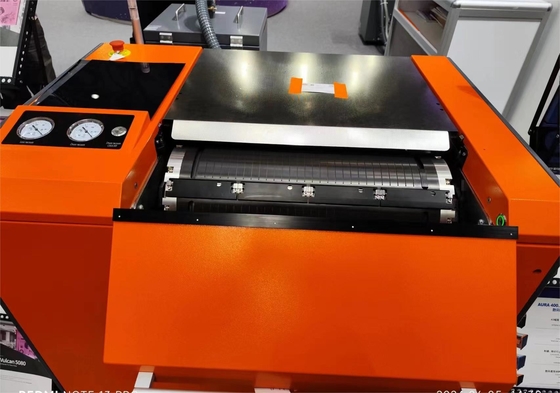

Plate Thickness Ranging From 0.14mm To 2.84mm For FL-600 Flexo CTP Plate Making Machine 1

Specification:

Model	FL-600
Exposing Mothod	External Drum
Imaging System	16-channel; 32-channel
Throughput	1.25 m²plates/hour; 2.5 m²plates/hour
Max.output Size	26"x17"/680mmx430mm
Media Type	Heat corrosive film, Digital water washed letterpress, Digital water washed flexo plate, Digital solvent washed flexo plate, Thermal PS plate* * Plate thickness is 0.15mm max and adhesive tape is needed on three sides edge
Plate Thickness	0.14mm to 2.84 mm
Resolution	4000dpi
Application	Label and trademark
Interface	USB 2.0
Plate Loading	Manual load and unload
Focus Adjust	Autofocus
Laser Power	High power semiconductor laser diode
Net Weight	About 470kg
Machine Size(LxDxH)mm	1165 x 830 x 1030mm
Power Supply	220v/50hz, 60hz mainframe 1.5kw, vacuum 2.0kw
Operation Environment	recommended:18-30ºC, Max.18-26ºC, humidity:10-80%

More Details:

DigitalFlexo Plate Making Process:

Back exposure, laser drawing, main exposure, wash-out, drying, post-exposure and de-tacking.

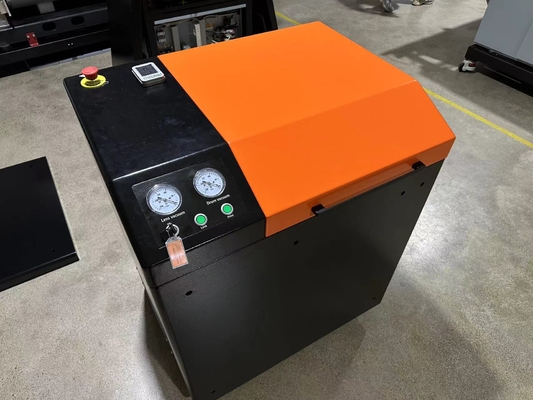

Plate Thickness Ranging From 0.14mm To 2.84mm For FL-600 Flexo CTP Plate Making Machine 2

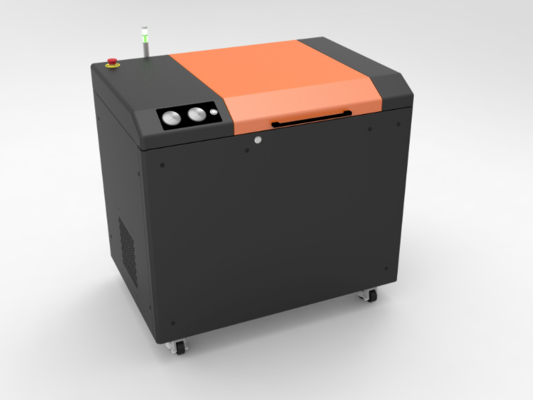

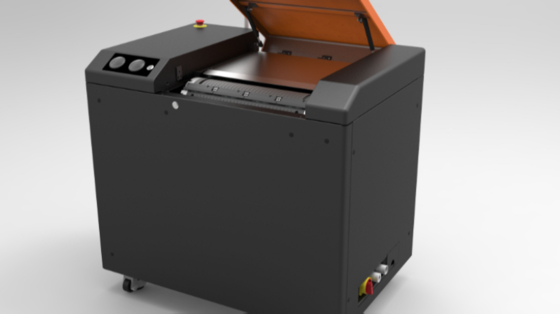

Plate Thickness Ranging From 0.14mm To 2.84mm For FL-600 Flexo CTP Plate Making Machine 3
