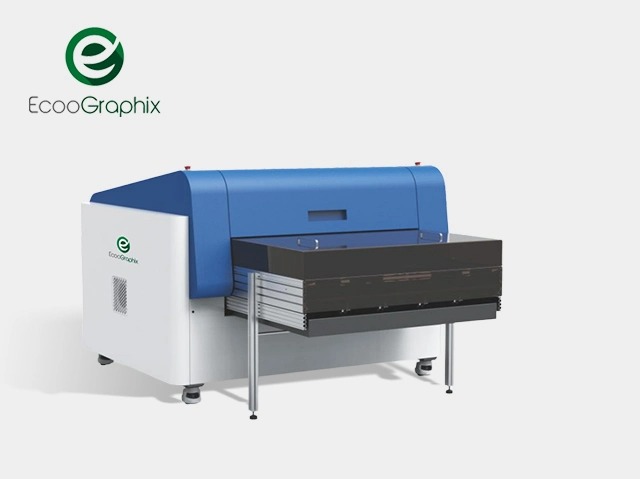

Super High Speed Automatic Plate Making Machine Thermal CTP
Model: T-800Q Series
Product Description
Features: Super fast, Supreme Imaging Quality, Full Automation (Inline punch built in)
Overall Performance Improvement:
1. New Laser head: Technology makes the plate making performance stable. At the same time, the speed is improved by leaps and bounds.
2. Linear motor: In addition to high acceleration, linear motor drive also has extremely stable operation and high positioning. Accuracy, providing the guarantee for high precision and accurate printing.
3. Motor direct drive drum: The application of direct motor driving drum technology makes our star-up time accelerated and greatly improves productions efficiency.
4. Full-automatically continuous printing with Inline punch: Equipped with automatic plate loading and unloading, automatic feeding and automatic punching function, it can work continuously without interruption to maximize the performance.
5. Automatic plate feeding cassette: Large capacity automatic plate feeding system can load 400 plates at the same time and support four specifications of automatic plate switching, which saves manpower and improves printing speed for you, easily achieving full-automatically continuous plate printing.
6. Digital square spot imaging: Digital square screen ensure the integrity of the image and the sharp feature of the picture quality. The transmission from digital information to paper greatly reduces the image loss and significantly increase the printing resistance.
Specification
| T-800 Q (F, V, X) Specifications |
| Model |
T-800QF |
T-800QV |
T-800QX |
| Exposing Method |
External Drum |
| Imaging System |
830nm laser |
|
Throughput
|
35plates/hour |
45plates/hour |
55plates/hour |
| |
1030mm x 800mm, 2400dpi, Plate sensitivity 100mj/cm² |
| Plate Sizes |
Max.1163mm x 940mm
Min.400mm x 300mm |
| Plate Thickness |
0.15mm, 0.30mm |
| Resolution |
Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi.(Optional)
Variable high resolution option: maximum up to 10,000dpi at fast scan direction
|
| Repeatability |
0.01mm |
| Interface |
Optical Fiber/ GB Ethernet |
| Plate Loading |
Manual load(P); Automatic load: Single cassette(SCL); Multiple cassette (MCL-8) |
|
Plate Loading Quantity
(0.27mm Plate)
|
Single cassette unit(SCL): 100 plates
Multiple cassette unit(MCL-8): 400 plates (4x100 plates/cassette)
|
| Auto slip Paper collection Bin |
Included in Autoloader |
| Bridge to Processor |
Included |
| Punching System |
Optional: internal punching(maximum four sets of plate holes) |
| Net Weight |
CTP manual load(P): 890KG
CTP with single cassette(SCL): 985KG
CTP with multiple cassette(SCL): 1350KG
|
Machine Size
(WxLxH)mm |
CTP manual load(P):1,900X2,510 X1,356mm.(LXWXH)
CTP with single cassette:1,900X2,431X 1,356mm.(LXWXH)
CTP with multiple cassette:1,900X2,687X 1,356mm.(LXWXH)
|
| Power Supply |
CTP manual load(P): Single phase: 220V, Power: 3.8KW(Peak value), 1.5KW (Average)
CTP with single cassette:Single phase: 220V, Power: 4.2KW(Peak value), 2KW (Average)
CTP with multiple cassette:Single phase: 220V, Power: 4.6KW(Peak value), 2.5KW (Average)
|
| Operation Environment |
Operating temperature range:15-30℃ Recommended temperature:21-25℃
Humidity:40%-70%
|
Producing and Packing

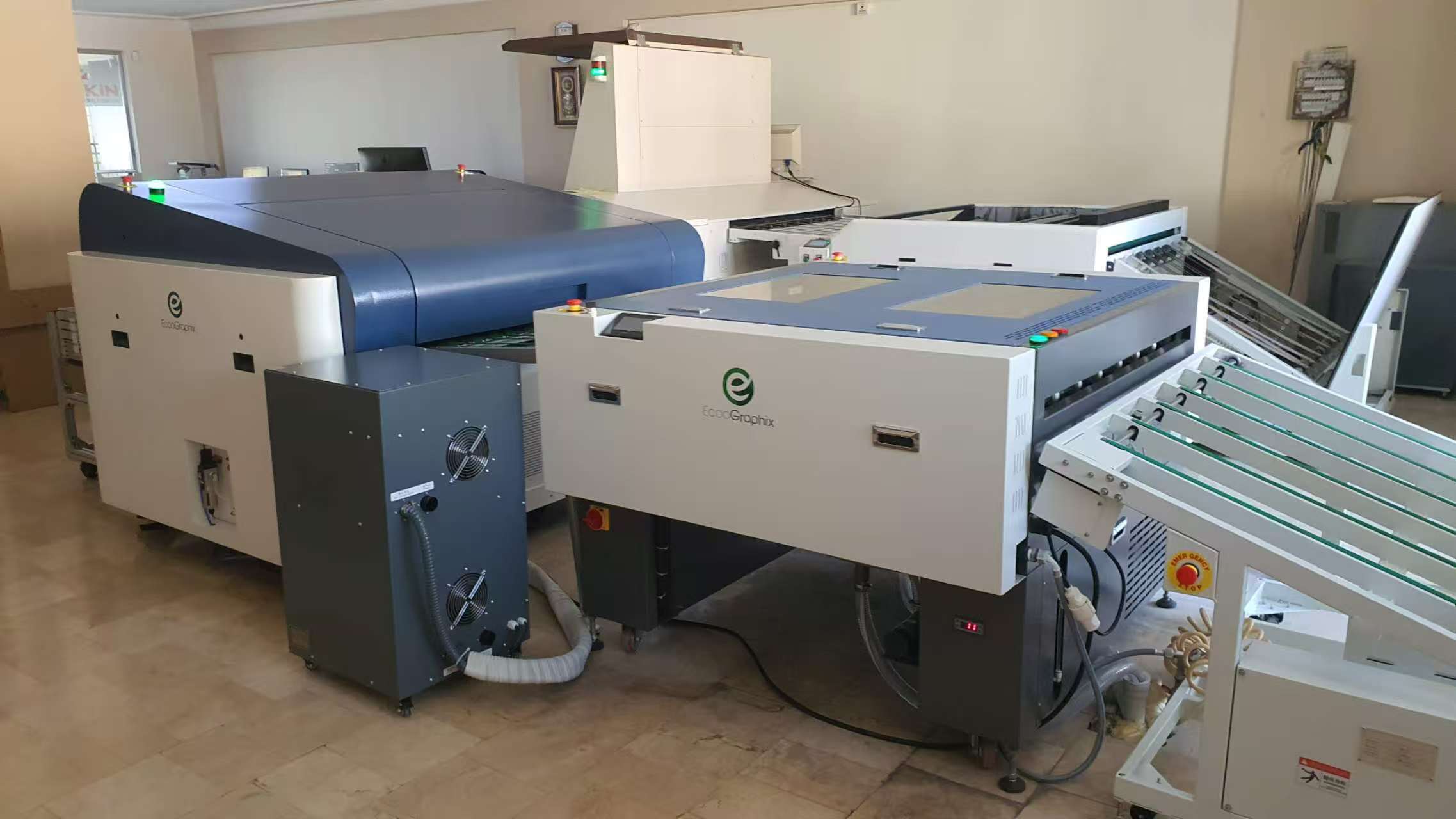

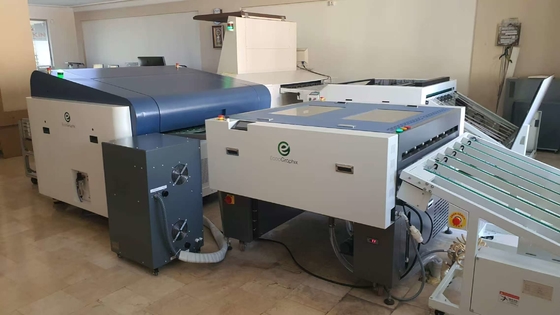

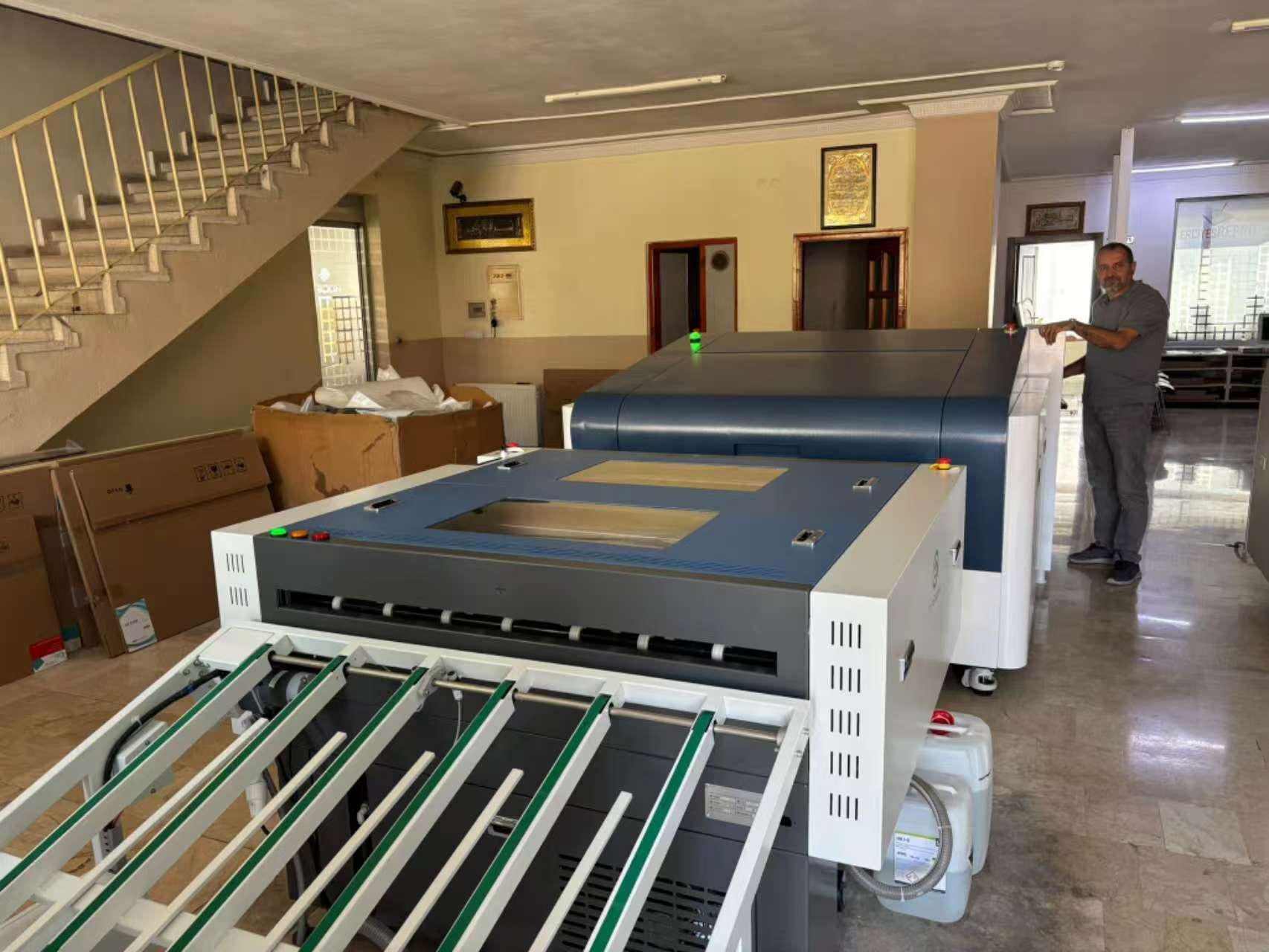

CTP Installation Worldwide
More details
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates ,inks, Blankets, Postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. If machine user uses our plate at the same time, we offer lifelong warranty.
4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
