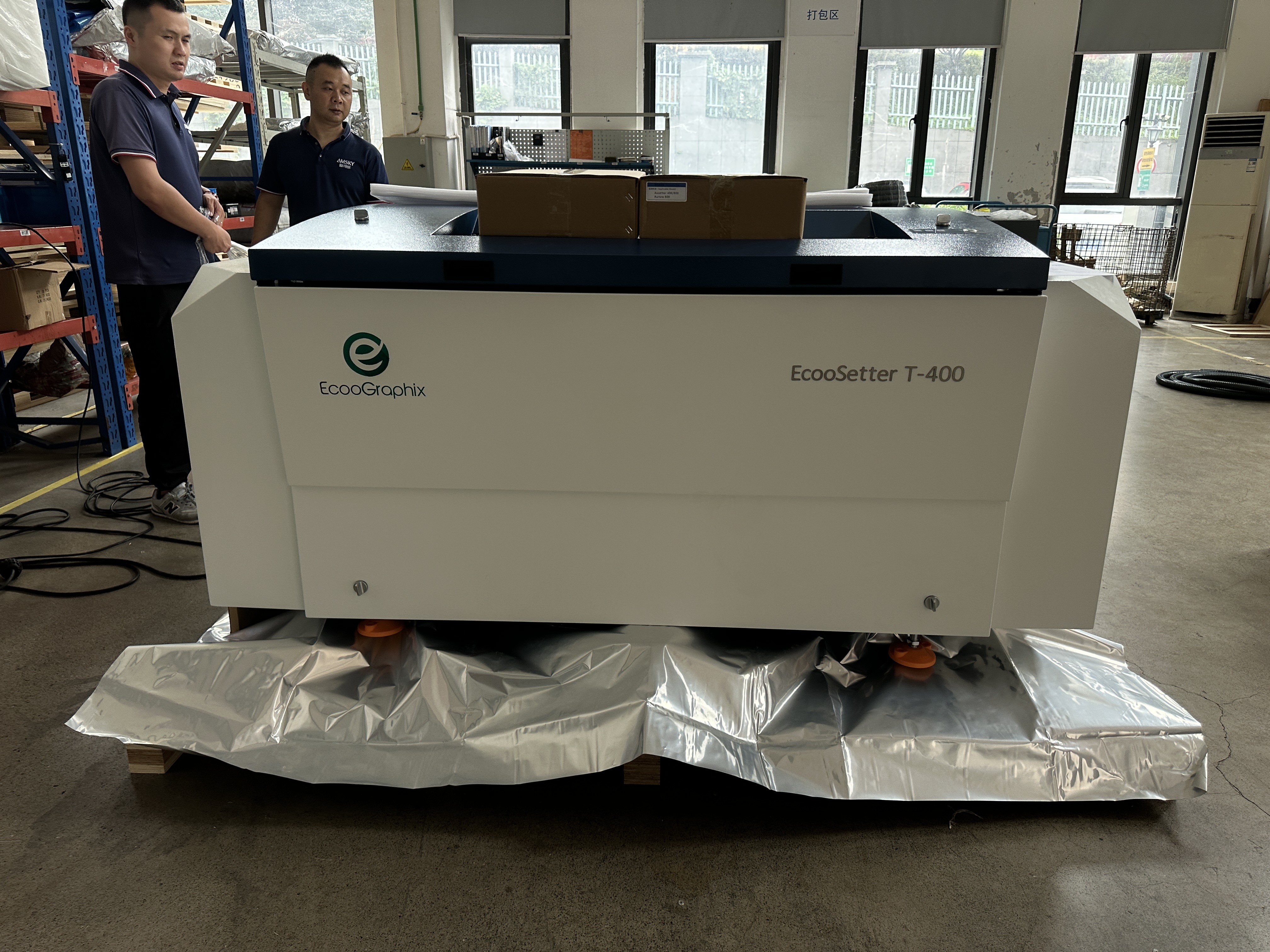

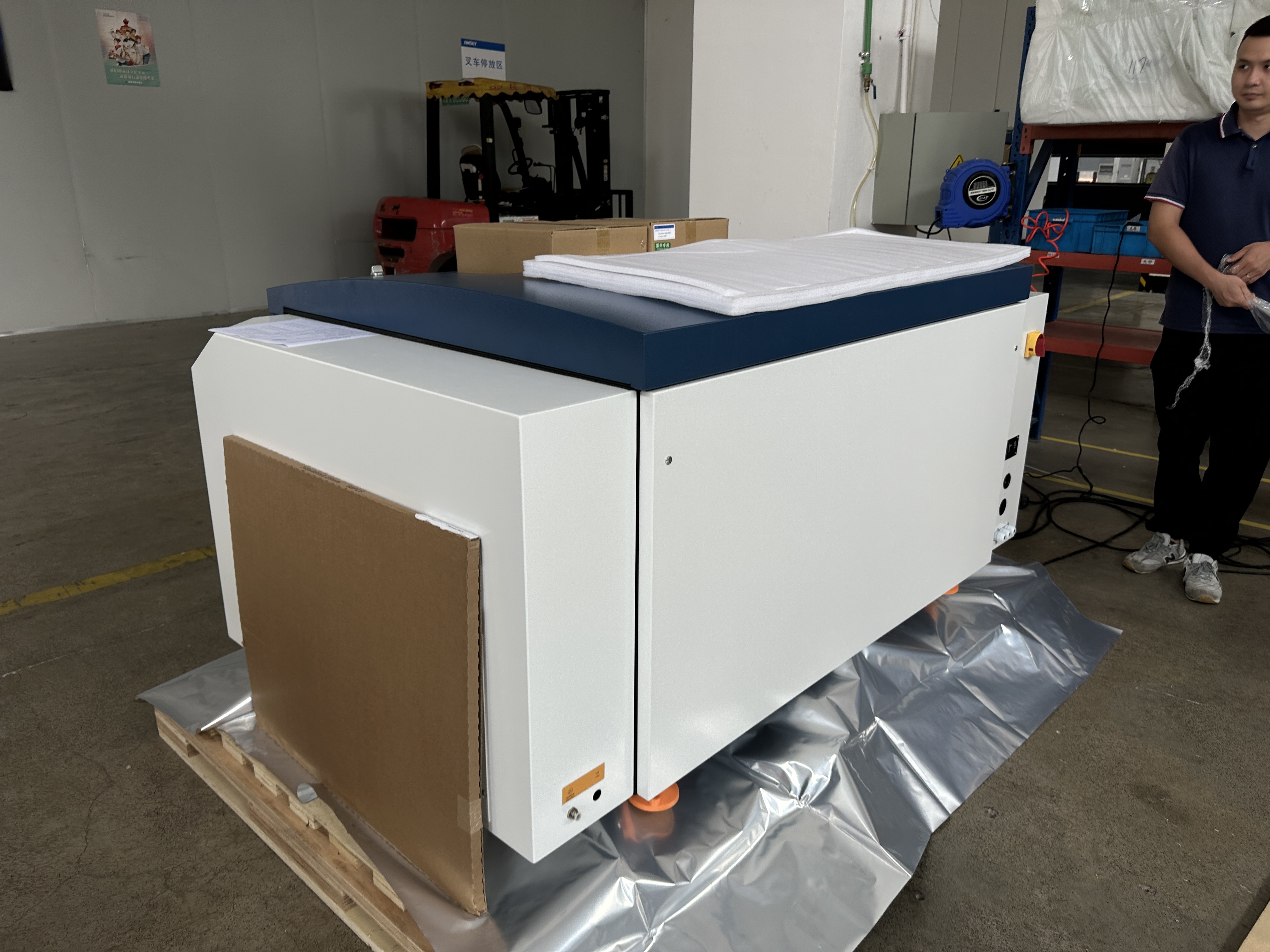

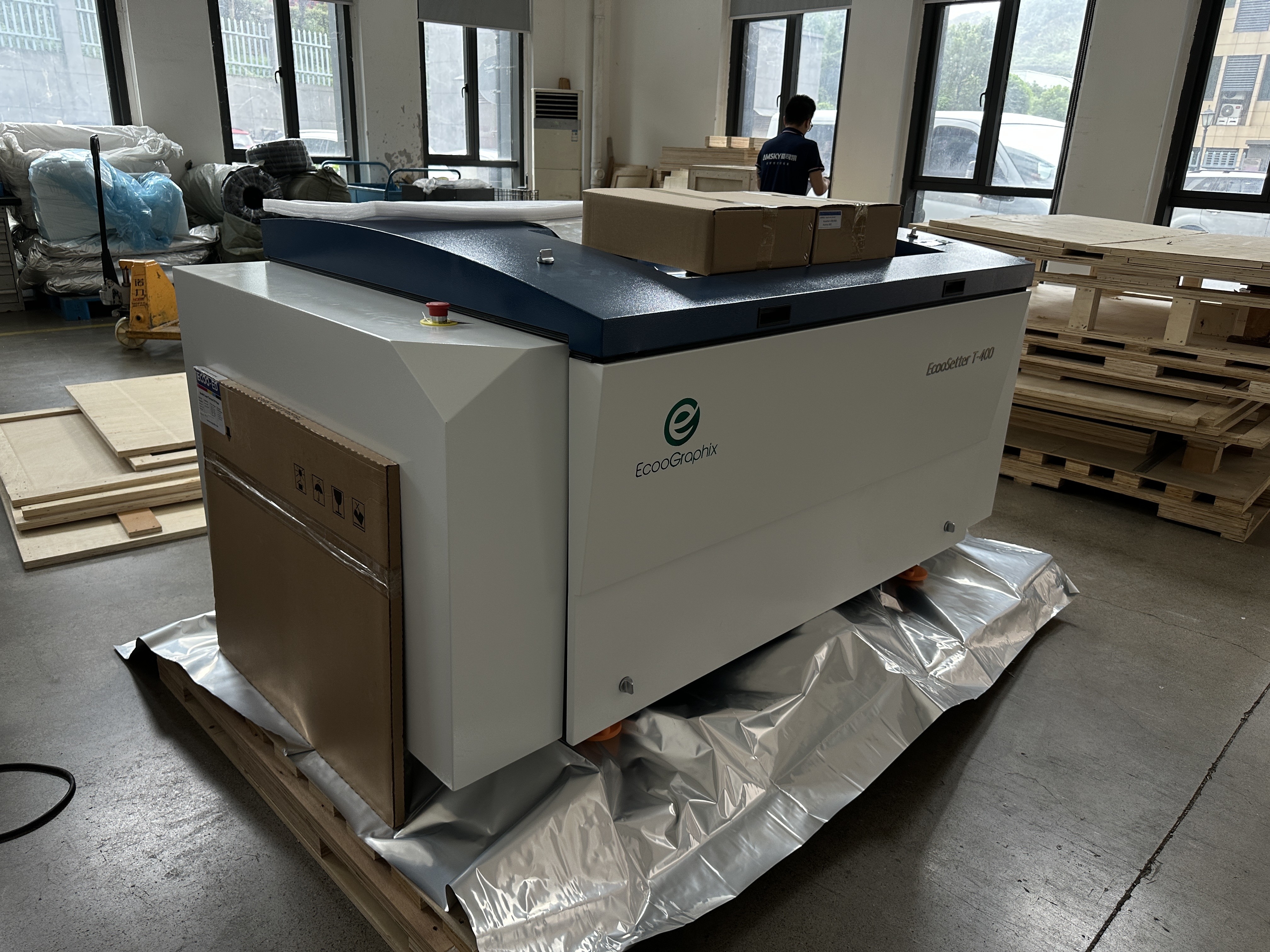

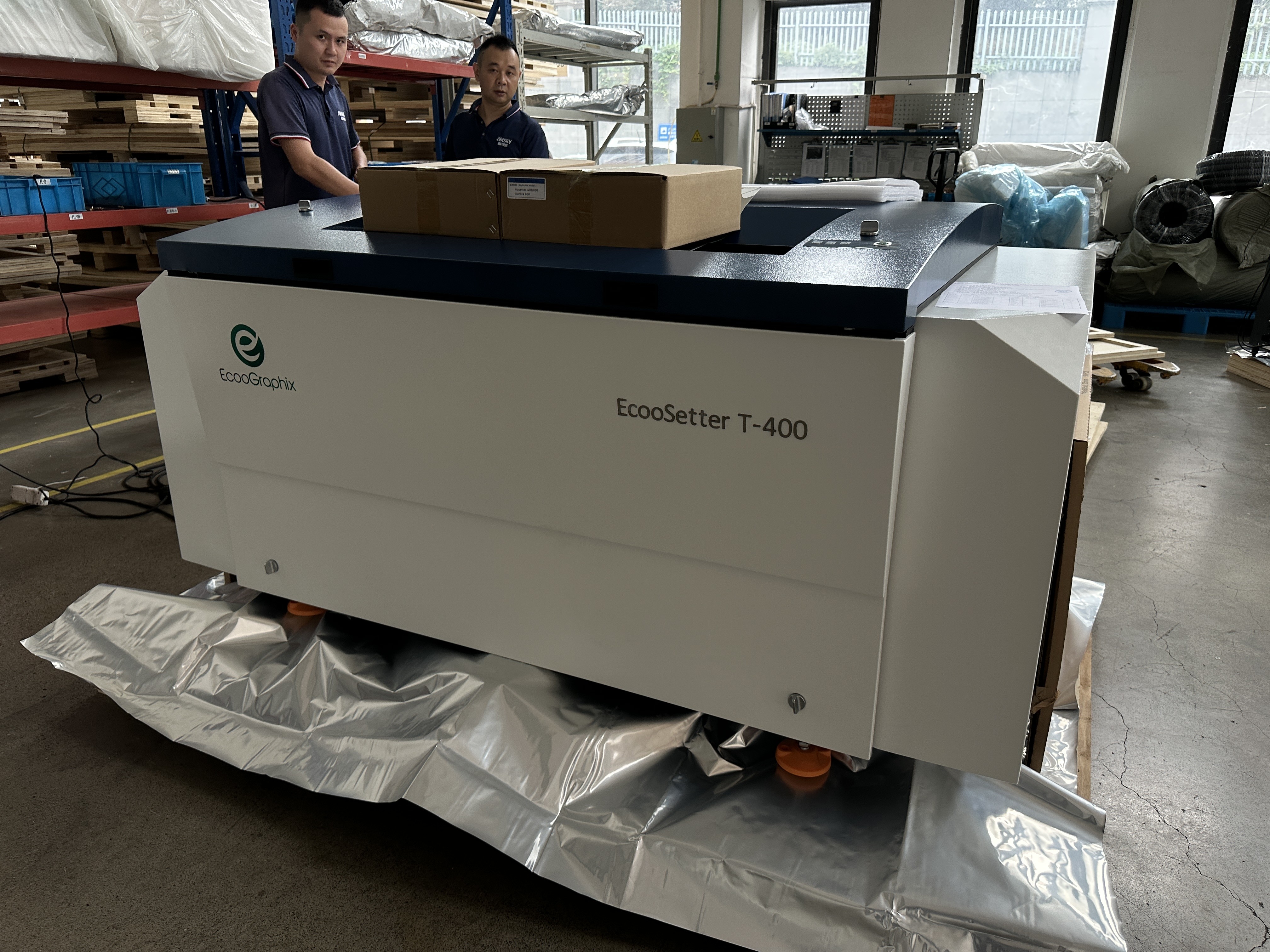

EcooGraphix Thermal Plate Making CTP Machine
1. Application
The EcooGraphix Conventional CTP (UV-CTP/CTCP) Plate Making Machine represents a revolutionary advancement in prepress technology, specifically engineered to meet the demanding requirements of modern short-to-medium run offset printing operations. This comprehensive solution transforms digital files directly into ready-to-print plates with unprecedented efficiency and precision.
2. Specifications
| ECOO T-400 Series Thermal CTP Specifications |
| Model |
T-400F |
T-400S |
T-400E |
| Exposing Method |
External Drum |
| Imaging System |
48-channel |
32-channel |
24-channel |
| Discrete 830nm laser diode |
| Throughput |
28plates/hour |
22plates/hour |
16plates/hour |
| 800mm x 690mm, 2400dpi |
| Plate Sizes |
Max. 800mm x 660mm
Min. 400mm x 300mm |
| Exposing Size |
Max. 800mm x 646mm
Min. 260mm x 284mm |
| Media Type |
Positive 830nm thermal CTP plate |
| Plate Thickness |
0.15mm to 0.30mm |
| Resolution |
2400dpi |
| Repeatability |
±5μm (Continuous exposure for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
|
| Interface |
USB 2.0 |
| Plate Loading |
Semi-automatic |
| Net Weight |
800kg |
| Machine Size (WxLxH)mm |
1900 x 1200 x 1000 |
| Power Supply |
Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW |
| Environment |
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70% |
Key Operational Benefits:
1. Advanced Prepress Solution
Precision Imaging Technology:
- Achieves true 2400dpi resolution with remarkable ±5μm repeatability for razor-sharp text and smooth tonal gradients
- Incorporates discrete laser diode technology that maintains exceptional imaging stability with minimal power fluctuation (≤0.5%)
- Features an external drum design that guarantees perfect plate registration for color-critical applications
2. Technical Specifications
System Configuration Options:
The T-400 Series offers three tailored configurations to meet different production needs. The flagship T-400F model features a 48-channel laser diode system delivering 28 plates per hour, ideal for high-volume operations. The T-400S standard model provides 32-channel imaging at 22 plates/hour for mid-size printers, while the entry-level T-400E offers 24-channel capability at 16 plates/hour, perfect for starter plants.
Core Technical Parameters:
The system supports all major 830nm thermal plates from leading manufacturers including Kodak, Fujifilm, Agfa and Lucky. With adjustable resolution from 1200-2400dpi, it reproduces minimum 1% dots at 200lpi and handles FM screening with ease. The automatic focus adjustment accommodates plate thickness from 0.15-0.30mm, while robust environmental tolerance ensures reliable operation between 15-30°C at 40-70% relative humidity.
3. Performance and Reliability
Validated through extensive testing, the system demonstrates less than 1% dot gain variation across entire plates and maintains 98.5% laser uptime in demanding 24/7 production environments. The long-life lasers show less than 5% power degradation over 50,000 hours of operation, meeting stringent GRACoL and FOGRA certification standards.
4. Operational Advantages
The EcooGraphix system delivers superior imaging quality while reducing plate consumption by 30-40% compared to alternatives. Energy-efficient operation at just 4kW outperforms both UV-CTP and competitive thermal systems, contributing to significantly lower total cost of ownership. The compact 1.9×1.2m footprint integrates easily into existing workflows while eliminating film costs and reducing prepress labor requirements by 60-70%.
5. Recommended Applications
Ideal for diverse printing needs, including commercial printing of brochures and catalogs, packaging applications like labels and folding cartons, publishing projects including magazines and books, as well as specialized security printing requiring microtext and guilloche patterns.
6. Comprehensive Support Package
Backed by an industry-leading 3-year laser warranty, the system comes with professional on-site installation and operator training. Customers benefit from 24/7 technical support through our dedicated hotline, ensuring uninterrupted production and maximum return on investment.
This advanced thermal CTP solution delivers measurable improvements in print quality consistency, production efficiency, and operational cost savings, making it the ideal choice for printers transitioning to a digital workflow. The T-400 Series' robust construction and precision engineering ensure reliable, high-quality output even in the most demanding production environments.
