Name: VLF Flexographix Prepress Plate Imagesetting Machine 10160 Dpi Resolution 1270*2032mm Max Size For Optimal Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: FL4835/FL5080
Price: 130000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: FL4835/FL5080

Description: Flexographix Plate Making Machine

Max. Size: 1270*2032mm

Max. Speed: 5 Sqm Per Hour

Resolution: 5080 Dpi, Could Extend To 10160 Dpi

Laser System: 256 Laser Valve Technology

Plate Thickness: 0.14mm-6.35mm

Power: 16 Kw

Highlight:

1270*2032mm Flexographix Prepress Plate Imagesetting Machine

VLF Flexographix Prepress Plate Imagesetting Machine

Basic Infomation

Place of Origin: China

Brand Name: Ecoographix

Certification: ISO, CE

Model Number: FL4835/FL5080

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 55 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per year

Gallery

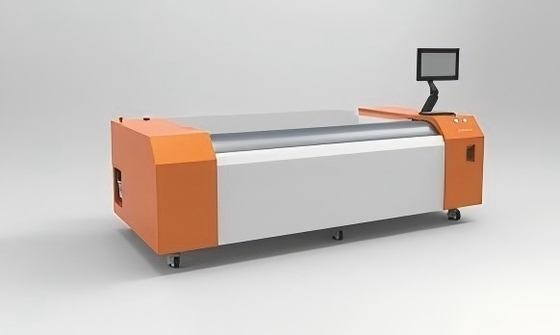

VLF Flexographix Prepress Plate Imagesetting Machine 10160 Dpi Resolution 1270*2032mm Max Size For Optimal Printing

Product Description

Model: FL4835 series & FL5080 series-VLF flexographix plate making machine

Brief introduction

Equipped with a newly developed 256-channel laser printhead Speed: Engraves a 50x80 inch full dot plate in 30 minutes
High image quality with rectangle dots
at 5080 dpi, it images slant or circular lines as fine as 15 um; for vertical and horizontal lines, it can be as fine as 5 um, this increases the color fidelity by 30%.

Technical parameters


Model	FL5080S	FL5080F	FL5080C	FL4835S	FL4835F	FL4835C
Exposing method	External drum
Imaging system	256 laser valve, 830 nm laser
Output Speed	3.5㎡/h, 5080 dpi	5㎡/h, 5080 dpi	5㎡/h, 4000 dpi	3.5㎡/h, 5080 dpi	5㎡/h, 5080 dpi	5㎡/h, 4000 dpi
	50"*80", 45 min	50"*80", 30 min	50"*80", 30 min	48"*35", 25 min	48"*35", 15 min	48"*35", 15 min
Output size	Max. 50"80", 1270mm2032mm, Min. 200mm*200mm			Max. 48"35", 1220mm1020mm, Min. 200mm*200mm
Plate Type	Heat corrosive film, Digital water washed letterpress, Digital water washed flexo plate, Digital solvent wash flexo plate, Thermal PS plate*
Plate Thickness	0.14mm~6.35mm
Plate feeding	Automatic feeding or manual feeding
Application	Label and trademark
Resolutions	4,000 dpi/5080 dpi
Plate Loading	Manual load and unload
Focus Adjust	Autofocus
Laser Power	High power semiconductor laser diode
Device Size	299717501537mm(LWH)			197417501537mm(LWH)
Net Weight	1500 kg			1100 kg
Power	380 v, 16 kw			380v, 16 kw
Environment	Recommended Temperature:18~30°℃,Humidity:10%~80%

Technology Highlights
1. 256 laser valve technology, to ensure highest speed and resolution.
2. square/rectangle dot, to makse dot pixel size 5um*5um,
3. Auto focus, Keep accurate focus constantly to ensure sharp dot.
4. Drum auto balance, Auto balance system of drums takes no more than 5 seconds to adjust the drum balance block to a position, ensure the drum stable in high speed rotation.
VLF Flexographix Prepress Plate Imagesetting Machine 10160 Dpi Resolution 1270*2032mm Max Size For Optimal Printing 1

Full packaged solution of our flexographix solution

Package flexo prepress line
Ecoographix provide complete packaged solution:
Flexo plate making machine;
Flexo plate processing machines, including light treatment machine, wash machines, drying machines;

Flexo plate mounitng machine;

flexo plate densitometer and flexo printing material densitometer.
Copyright workflow;
High quality digital flexo plate.
