Home /Products/Label Printing Machine/EcooSpark UV Piezo LED Curing Digital Label Printing Machine Efficiency Enhancing

EcooSpark UV Piezo LED Curing Digital Label Printing Machine Efficiency Enhancing

1 SET
MOQ
Negotiable
Price
EcooSpark UV Piezo LED Curing Digital Label Printing Machine Efficiency Enhancing
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Label Enhancement Machine
Printing Technology: UV Piezo Dod-Inkjet
Resolution: 360*360 Dpi, Up To 1440*360 Dpi
Printing Image Width: 288mm (Extendable To 330 Mm)
Polymer: Wb-Ds-Clear Polymer
Ink Curing: Inter UV-LED Pre-Curing/ Full Curing By UV-LED
Polymer Layer Thickness: From 10 Up To 250 Microns
Substrates Width: Max. 330mm
Highlight:

EcooSpark Label Printing Machine

,

Efficiency Enhancing Label Printing Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSpark
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

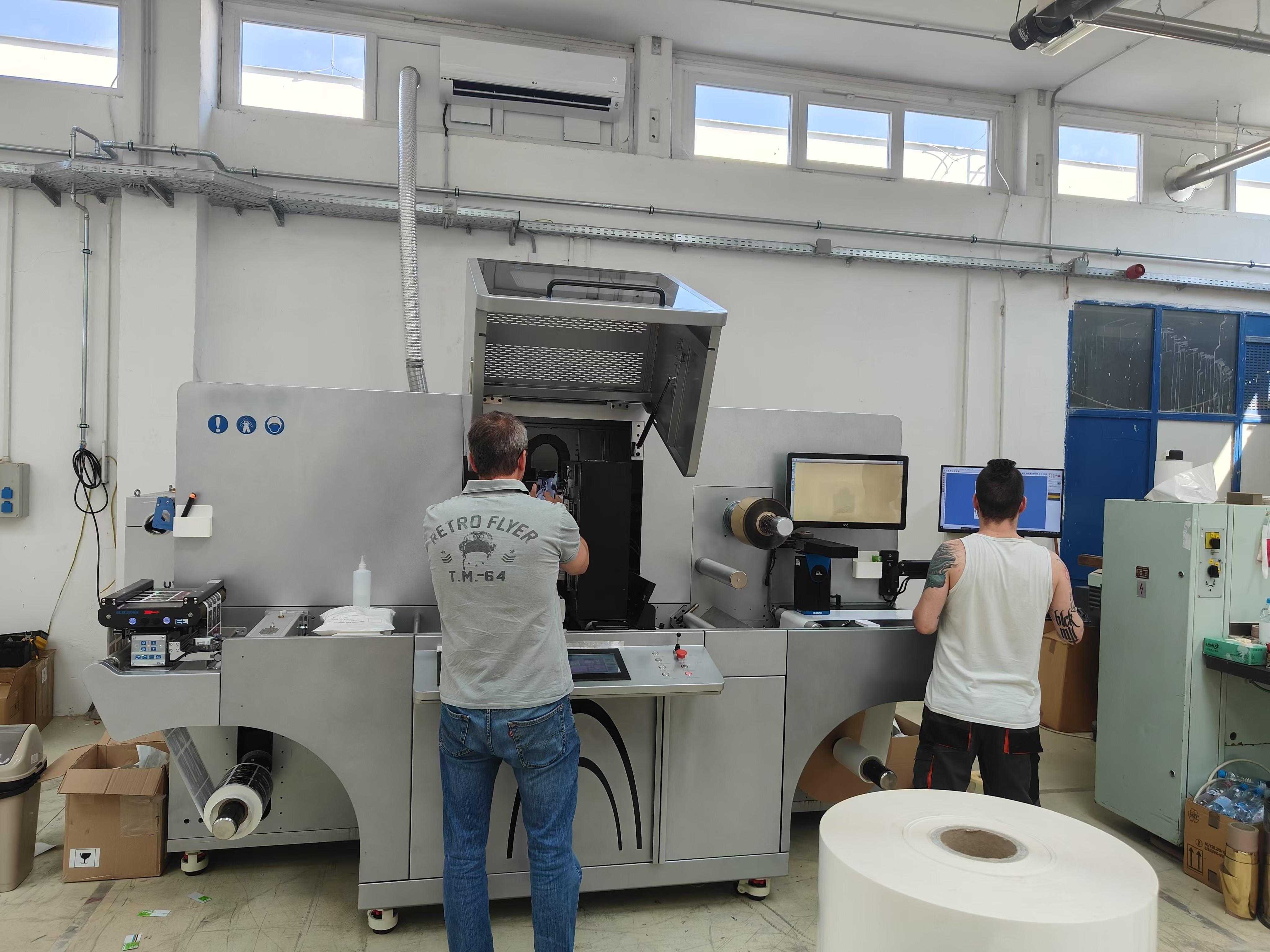

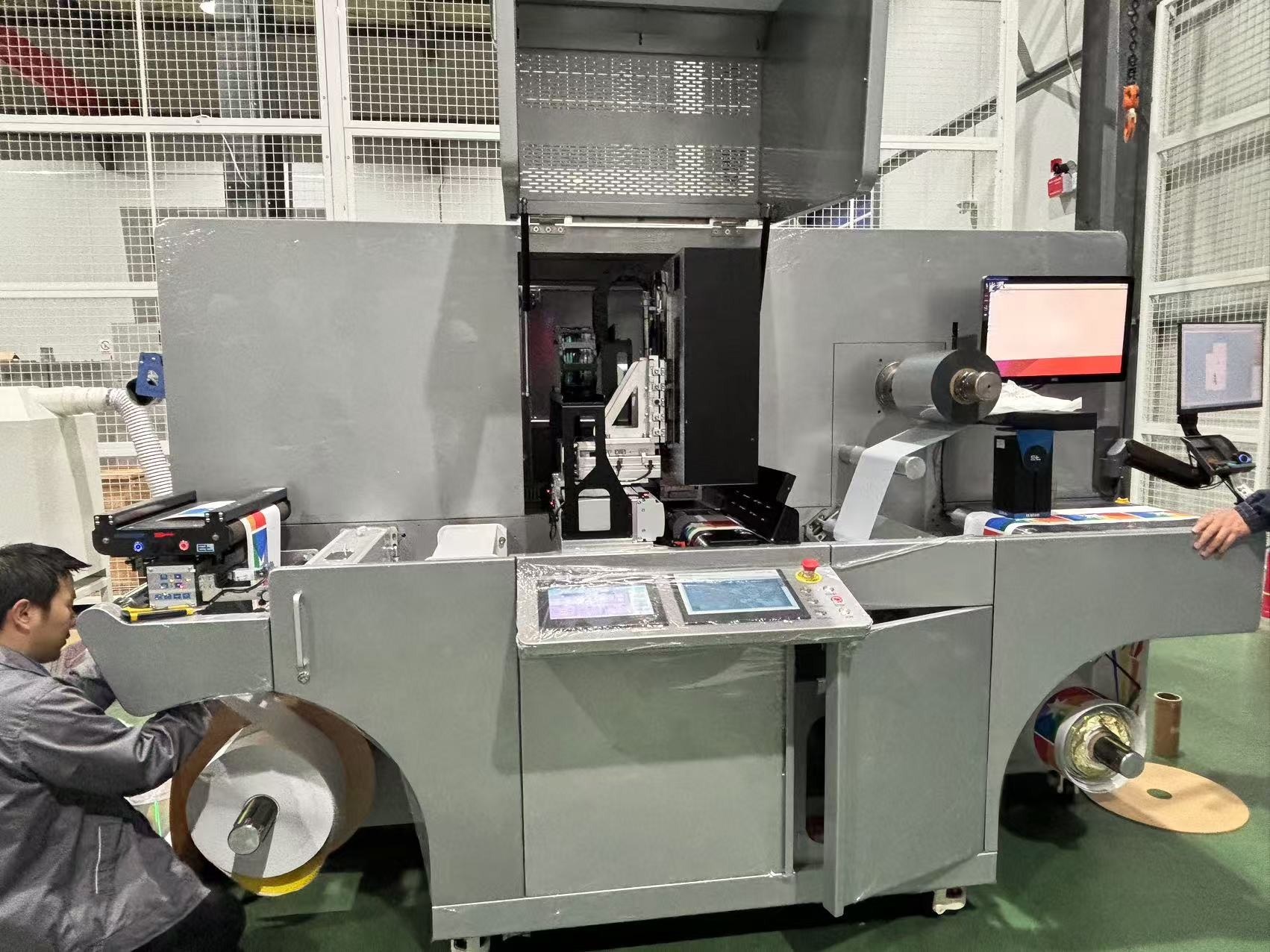

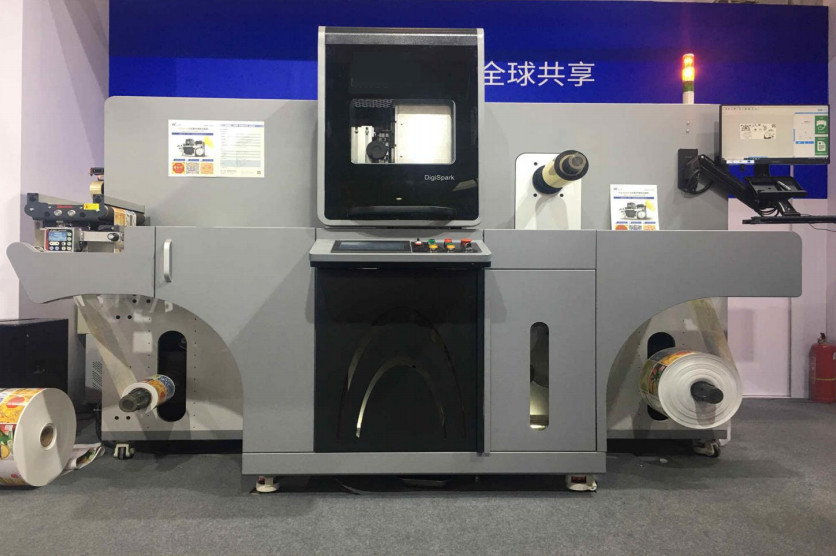

UV-LED Curing Digital Label Efficiency-enhancing Machine


EcooGraphix's latest innovation, the EcooSpark digital printing machine, transforms the post-press workflow by incorporating advanced digital methods like digital varnish, 3D crystal effects, selective glazing, cold stamping, and embossing—all without traditional plate production. This state-of-the-art technology not only slashes production expenses but also delivers striking visual enhancements instantly, elevating the quality and attractiveness of printed outputs.

More than a mere printing apparatus, the EcooSpark serves as a dynamic instrument for unlocking new revenue streams. By merging these digital processes, empowers users to craft visually stunning, high-quality prints with both efficiency and economy. This positions EcooSpark as an essential tool for companies aiming to refine their post-press activities and strengthen their market position. Its groundbreaking capabilities guarantee outstanding outcomes, establishing it as a premier digital printing solution that enhances operational efficiency and distinguishes itself within the sector.



Specification


EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine
ModelEcooSpark
Printing technologyUV Piezo DoD-inkjet
Resolution360*360 dpi, up to 1440*360 dpi
Printing speed6m/min - 50m/min(depend on polymer layer thickness)
Variable image systemPDF, Optimized PDF, Optional barcode system
Supported image standardsPDF, PDF/VT, TIFF, JPEG, BMP & other data base files
SubstratesOffset, Digital, Plastics, Laminated and Coated Substrates
Printing image width288mm(extendable to 330 mm)
PolymerWB-DS-Clear Polymer
Polymer layer thicknessFrom 10 up to 250 microns
Ink curingInter UV-LED Pre-curing/ Full curing by UV-LED
Unwinder diameterMax. 700mm, Core 76mm
Rewinder diameterMax. 700mm, Core 76mm
Substrates thickness30-400 micro
Substrates widthMax. 330mm
Press with foil stationMachine dimensions(LxHxW): 3500mm x 1900mm x 1800mm
Operating environmentTemperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements

Voltage: 3x380, ±5% 3 phases +G+N; Frequency: 50/60 Hz
Current: Avg. 58.6 Amps 23KW

Weight2800kg
