Ecoo IQ-330 Digital Custom Label Printing and Cutting Machine

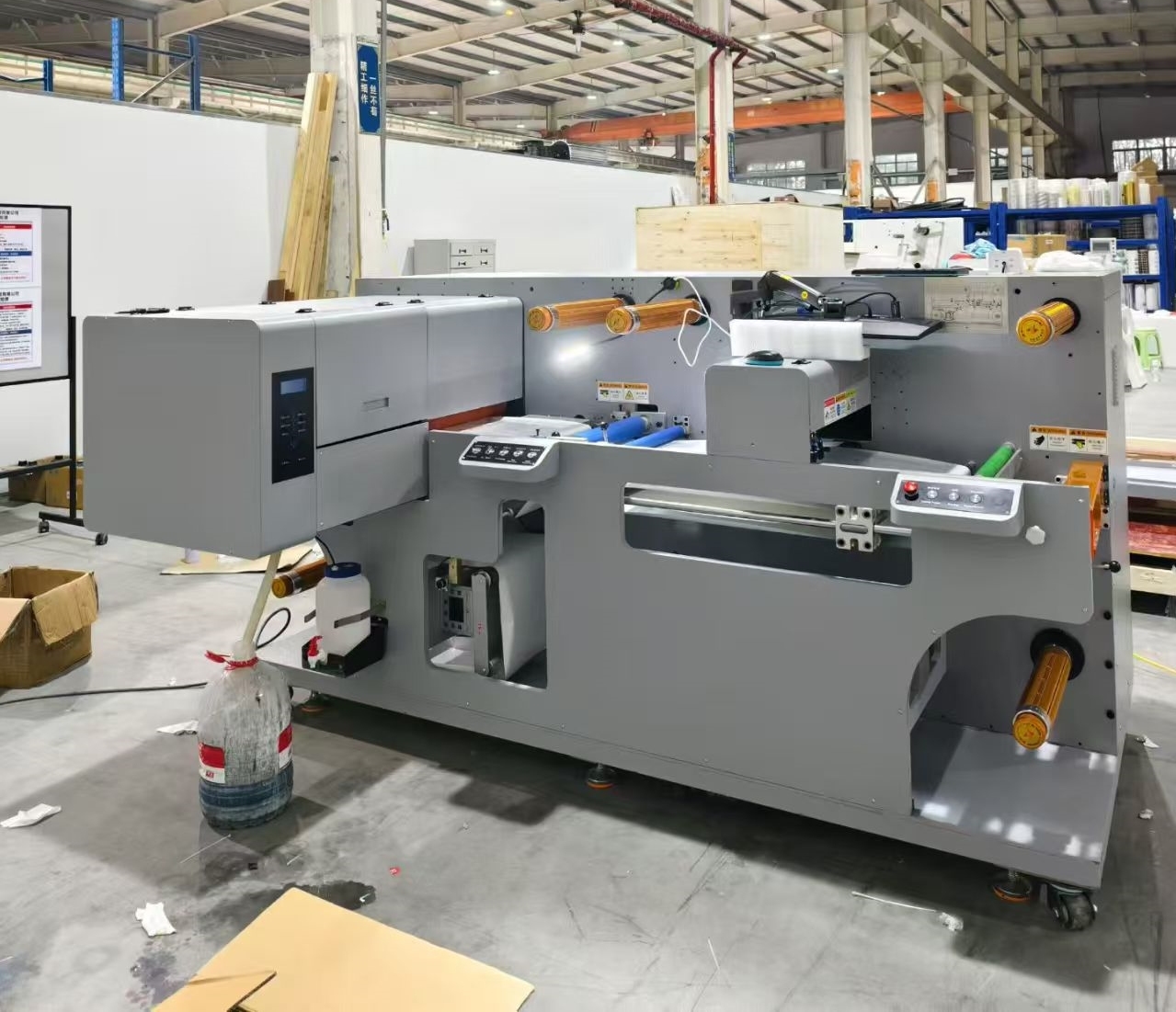

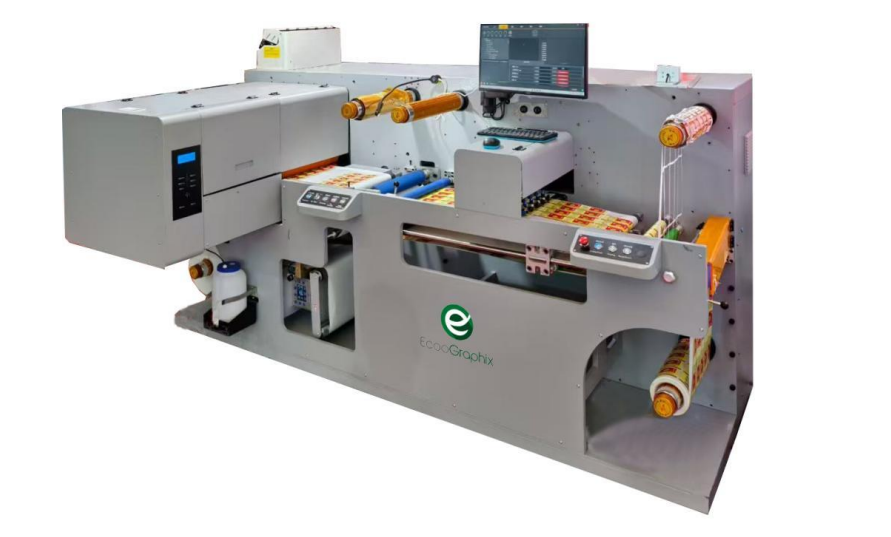

Ecoo Label Q-330 printing and cutting Intergrated Machine is an all-in-one UV scan type printer with in-line cutting machine. It offers high-precision printing via scanning, with high color fidelity and robust industrial grade design. Ecoo Label Q-330 can print CMYK, white inks and varnish on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like stamping, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.

Equipped with 4 EPSON I3200-U1 print-heads. it enables high-speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal.It handles both small and large orders with ease.

The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching, deformation, or wrinkle formation.

The cutting unit uses servo motors controlled pressure, eliminating manual adjustment. Reducing downtime.and boosting production efficiency.

Self-developed interface enables color, speed, and data base integration, making the entire process easy to learn and operate.

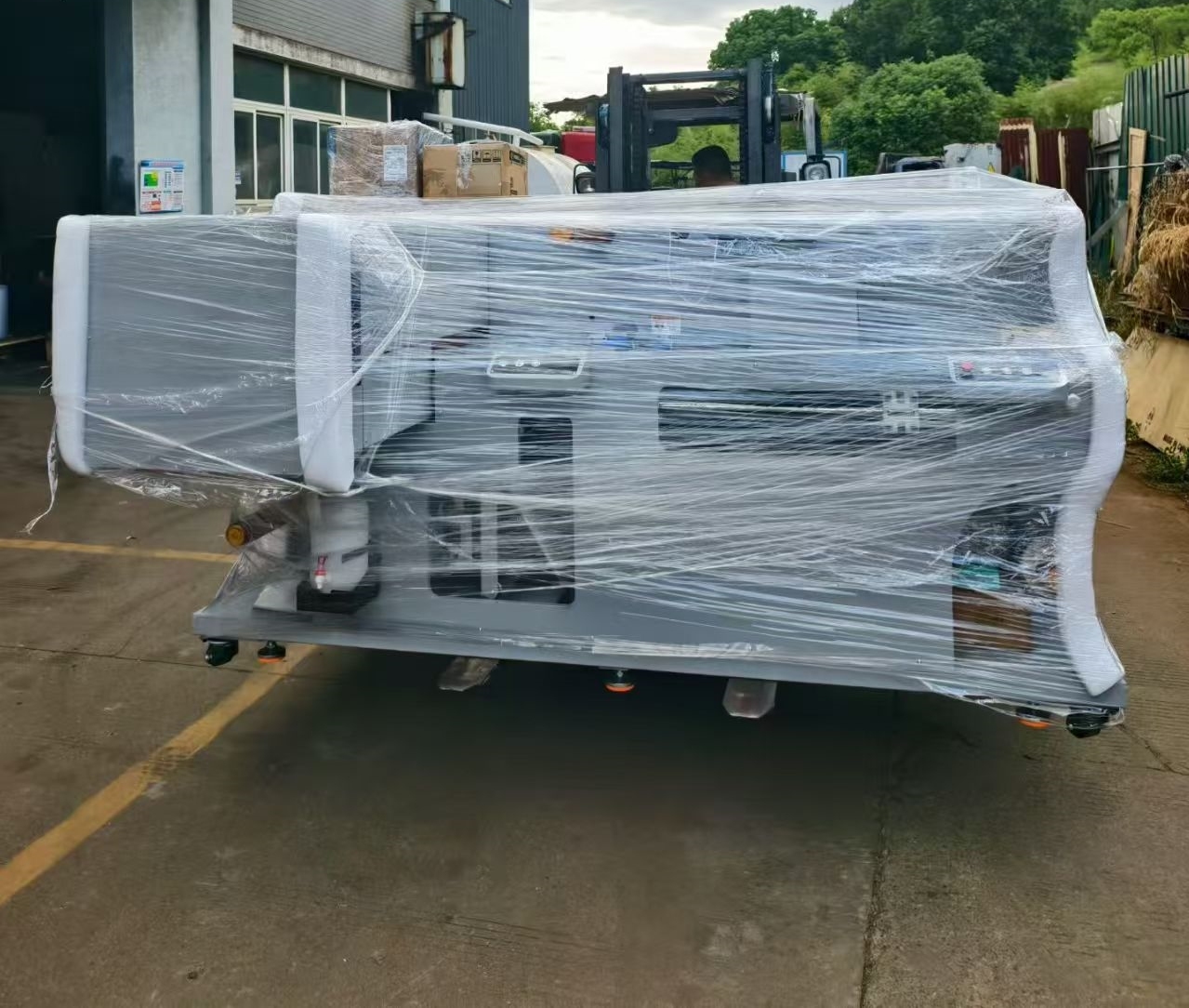

• Box dimension: 230*115*157cm
• Box weight Approx.: 2500kgs
• Box materials: Wooden

1. Integrated Versatility: One Machine, lnfinite Possibilities. Ecoo Label Q-330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.
2. Excellent Printing Performance: Whether it's white, varnish, or colored UV inks, the Ecoo Label Q-330 provides excellent printing effects on various media, making your labels stand out on the shelf.
3. High precision cutting: With ball screws and independent servo motors, it achieves +/-0.1mm cutting accuracy for flawless labels.
4. Wide Range of Applications: From food packaging to electronic product identification, from cosmetic labels to industrial data encoding, the Ecoo Label Q-330 can easily handle it all.
