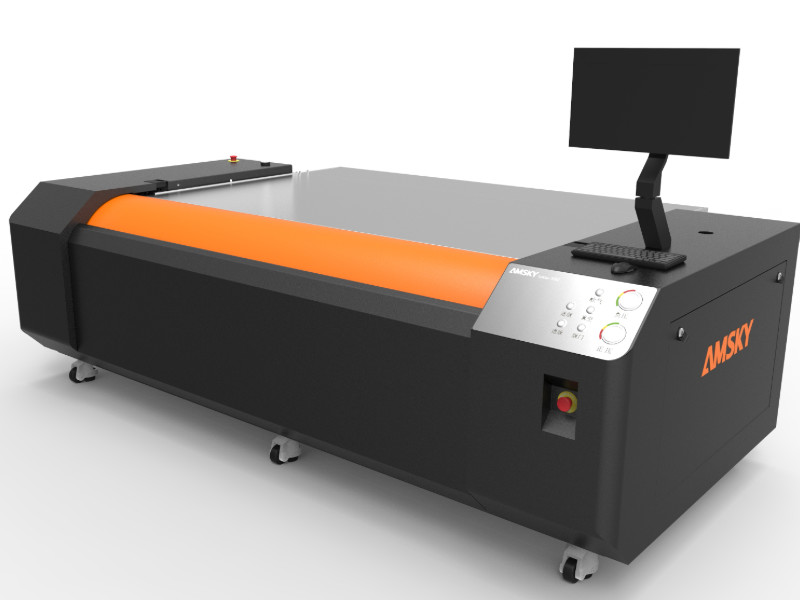

EcooGraphix Very Large Size Format Thermal CTP Machine T-1600S
Application
The EcooGraphix Thermal CTP (Computer To Plate) Plate Making Machine is an essential tool for efficient short-run offset printing. It transfers computer-generated images directly onto CTP plates, eliminating the need for film and manual labor.
With the EcooGraphix CTP, users benefit from superior image quality, dependable performance, reduced space requirements, and greater operational flexibility.
Specification
ECOO VLF (Very Large Format) T-1600S CTP Specifications
Model
T-1600S
Exposing Method
External Drum
Imaging System
64-channel, Discrete 830nm laser diode
Output Speed
16plates/hour, 1470mm x 1180mm/ 2400dpi
Plate Sizes
Max. 1470mm x 1180mm; Min. 300mm x 400mm
Exposing Size
Max. 1470mm x 1164mm
Media Type
Thermal CTP plate
Plate Thickness
0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative)
Resolution
2400dpi
Repeatability
±5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading
Semi-automatic
Net Weight
1400kg
Machine Size(WxLxH)mm
2355 x 1910 x 1217
Power Supply
Single phase: 220V-240V, Power Consumption(peak value): 5.5KW
Environment
Recommended: 21-25ºC; Max. 15-30ºC, Humidity: 40%-70%RH
| ECOO VLF (Very Large Format) T-1600S CTP Specifications |
| Model |
T-1600S |
| Exposing Method |
External Drum |
| Imaging System |
64-channel |
| Discrete 830nm laser diode |
Output Speed |
16plates/hour |
| 1470mm x 1180mm/ 2400dpi |
| Plate Sizes |
Max. 1470mm x 1180mm;
Min. 300mm x 400mm |
| Exposing Size |
Max. 1470mm x 1164mm |
| Media Type |
Thermal CTP plate |
| Plate Thickness |
0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative) |
| Resolution |
2400dpi |
| Repeatability |
±5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
|
| Interface |
USB 2.0 or USB3.0(USB2.0 is recommended) |
| Plate Loading |
Semi-automatic |
| Net Weight |
1400kg |
| Machine Size (WxLxH)mm |
2355 x 1910 x 1217 |
| Power Supply |
Single phase: 220V-240V, Power Consumption(peak value): 5.5KW |
| Environment |
Recommended: 21-25ºC; Max. 15-30ºC, Humidity: 40%-70%RH |
Details
Producing And Packaging
From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.
Certificates
Q1: What are your main products?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory?
A: Our CTP machine factory is in Hangzhou City, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
Q3: Is there any certification for your CTP machine?
A: Yes, all our CTP machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support?
A: Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets, the service charge, and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and the EcooGraphix technical service team supports these installations remotely with regular onsite visits.
These end users' printers all run the CTP systems with satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle with installations, training, and after-sales service. We guarantee your satisfaction.
