Home /Products/Label Printing Machine/Digital Inkjet Printing System Label Modular 330 HD

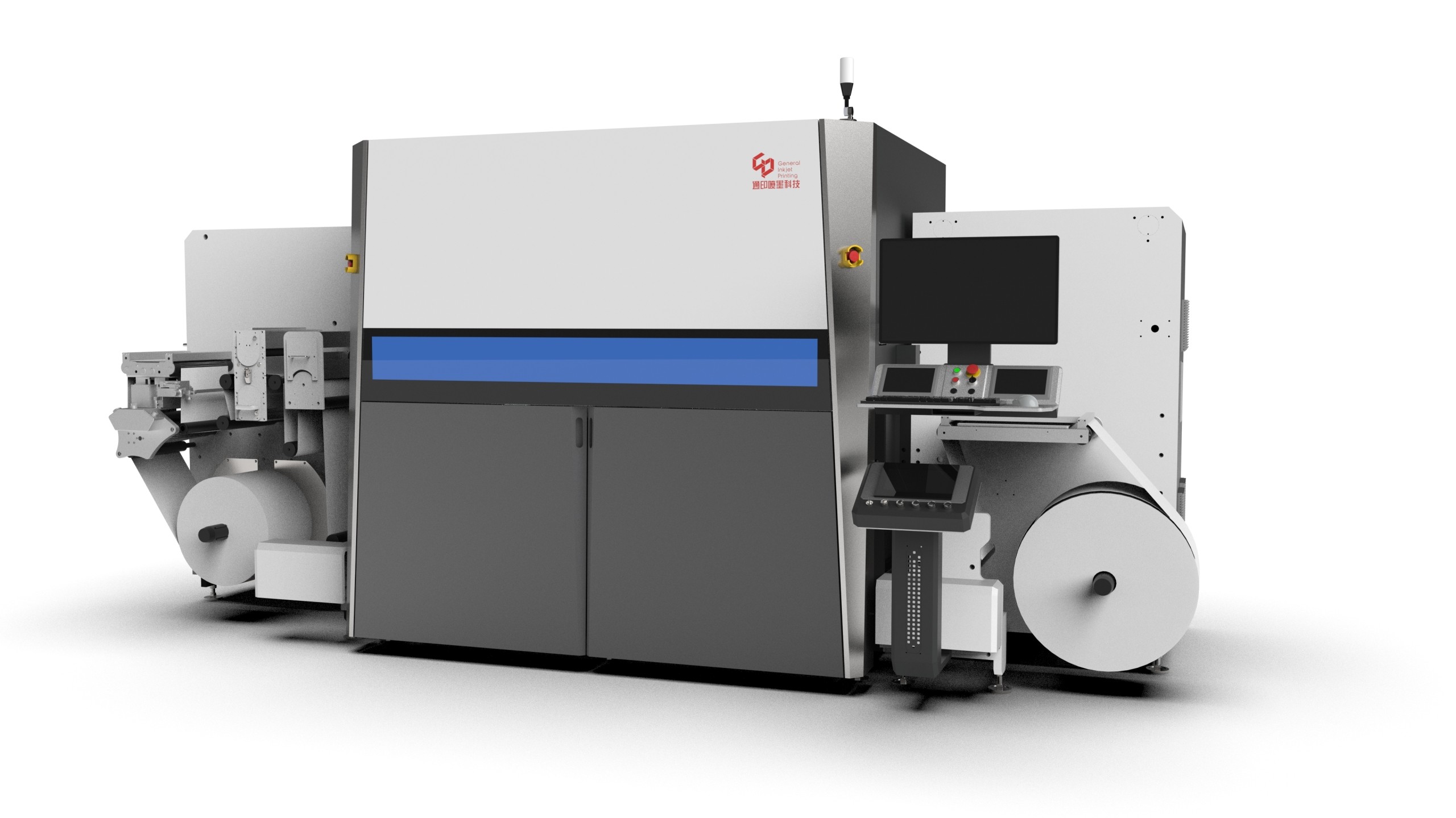

Digital Inkjet Printing System Label Modular 330 HD

1 SET
MOQ
Negotiable
Price
Digital Inkjet Printing System Label Modular 330 HD
Features Gallery Product Description Request A Quote
Features
Specifications
Printing Technology: Piezoelectric Inkjet
Print Method: Roll To Roll, One -Side
Color Configuration: Cmyk, Cmyk+W, Cmyk+W+Ogv
Number Of Channels: 9
Resolution: 1200 X1200 Dpi
Ink Type: UV Ink
Curing Method: UV LED
Media Width: 110-330mm
Maxmaximum Print Width: 320mm
Highlight:

Digital Inkjet Printing System Label

,

330 Digital Inkjet Printing System

,

Digital Inkjet Printing System HD
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSpark
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

Digital inkjet printing system LABEL Modular 330 HD



Product Description



New generation of imported high-precision printhead, the maximum resolution up to 1200dpi*1200dpi.

Modular production process collocation meets complex requirements for label printing.

Combined structure, can be flexibly configured according to the actual production process.

Coating, Printing, Varnishing, Foil-stamping, One-click production.

High efficiency digital label printer with a small cover area.


Product Specification



ECOO Label Modular 330 HD
Model Ecoo Label Modular 330 HD
Printing Technology Piezoelectric Inkjet
Print Method Roll to Roll, One -Side
Color Configuration CMYK, CMYK+W, CMYK+W+OGV
Number Of Channels 9
Maximum Speed 70m/min9
Resolution 1200 x1200 dpi
Ink Type UV Ink
Curing Method UV LED
Media Width 110-330mm
Maximum Print Width 320m
Media Thickness 50-400um
Media Type PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll Diameter 600 mm
Power supply 380V
Power 30kw
Compressed air >6.5MPa
Air consumption >10L/min
Operating environment Temperature: 20℃-27℃, Humidity: 40%-70% relative humidity
Skew Adjustment System yes
Electrostatic Dust Removal yes
Water Cooling System yes






Key Features

Highly flexible feeding system,suitable for all materials for 80-330mm wide label printing
Imported high-precision industrial print head has higher fire ignition frequency and service life.
The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.
Resolution up to 1200 X 1200 dpi
The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability.
Automatic winding and unwinding system can effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.
Up to 9 color channels, provide variety color options. Standard configuration: CMYK+ white (optionally available as double White), can add 3 sets of spot colors.

Features

Highly flexible feeding system
Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE) , paper, among others.

Stable and high-speed printing unit
Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 1200 X 1200 dpi, guaranteed excellent print quality.The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solves the problem of printing registration, and makes the printed matter more aesthetic.

High quality UV eco-friendly Ink
Benefit from the excellent ink formula, GIP's UV eco-friendly ink can still achieve excellent stability while ensuring environmental protection.Broad color gamut UV ink, vivid colors, with the Agfa color management system, can accurately restore the Pantone database colors.

AGFA APOGEE workflow software system
The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier, good for production.

Automatic winding and unwinding system
Effectively prevent the substrate from shifting, ensure the orderliness of the winding and unwinding system and achieve non-stop production for a long time.High linkage winding system, fully automated, to maximize automated production.

Unique print head control system
Each print head has its own board to control, makes printhead printing more efficiency and easier to maintain.

Up to 9 color channels
Provide variety color options. Standard configuration: CMYK+ white (optionally available as double White), can add 3 sets of spot colors.


Quality Control
Professional control department which is responsible for all the machines.
Full checking list including mechanical and electrical detection on the machine.
Strict standards for registration and over 24 hours of non-stop running on each machine.
Follow the policy of 'One person responsible for one machine',' Claim responsibility if the machine has assembled problem'.

Service
All of our technicians have over 10-20 years experience.
Rich experience in installation, repair, and maintenance overseas.
After-sales staff Whatsapp/Wechat online 24/7.
Guarantee to provide after-sales service for any machine for its whole user life.
