Ecoographix Digital Inkjet Printing System Label Printer Machine Modular 330

1 SET
MOQ
Negotiable
Price
Ecoographix Digital Inkjet Printing System Label Printer Machine Modular 330
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 30kw
Printing Technology: Piezoelectric Inkjet
Print Method: Roll To Roll, One -Side
Color Configuration: Support Up To 8 Colors
Number Of Channels: 8
Resolution: 600X600 Dpi/600 X1200 Dpi
Ink Type: UV Ink
Curing Method: UV LED + Mercury Lamp
Media Width: 150-350mm
Highlight:

Modular 330 Label Printer Machine

,

Ecoographix Digital Inkjet Printing System

,

Label Printer Machine Modular 330
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSpark
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

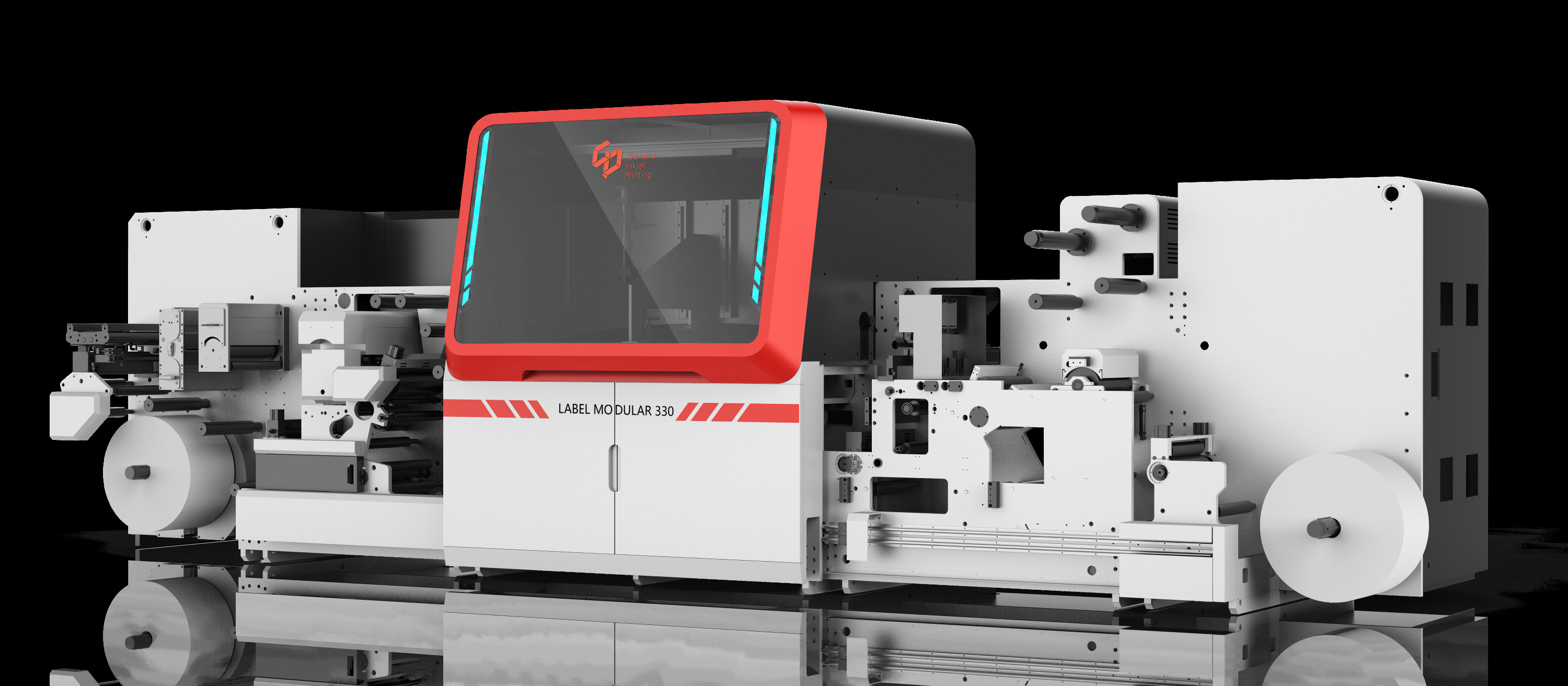

Digital inkjet Printing System Label Printer Machine Modular 330

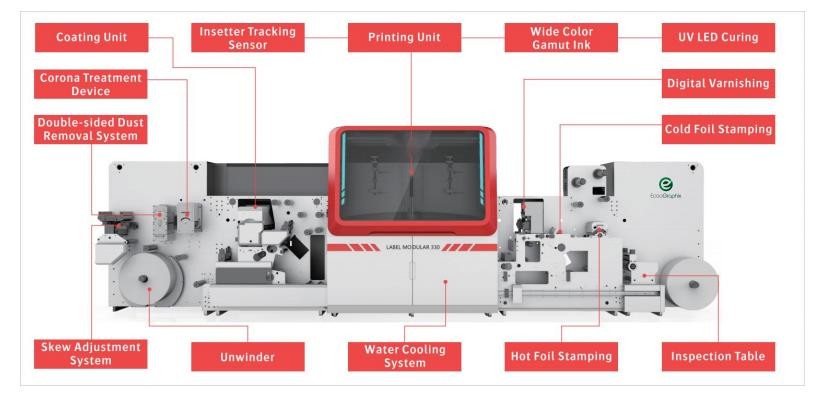

Product Features



1 Modular production process collocation meets complex requirements for label printing.
2 Combined structure, can be flexibly configured according to the actual production process.
3 Coating, Printing, Varnishing, Foil-stamping, One-click production.
4 High precision printing quality.
5 A cost-effective digital printer for label printing.



Specification



Digital Label Printer Machine
Model Ecoo Label Modular 330
Printing Technology Piezoelectric Inkjet
Print Method Roll to Roll, One -Side
Color Configuration Support up to 8 colors
Number Of Channels 8
Maximum Speed 50m/min(CMYK); 25 m/min(CMYK+W)
Resolution 600x600 dpi/600 x1200 dpi
Ink Type UV Ink
Curing Method UV LED + Mercury lamp
Media Width 150-350mm
Maximum Print Width 324mm
Media Thickness 50-400um
Media Type

PET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll
Diameter
 700 mm
Power supply 380V
Power 30kw
Compressed air >6.5MPa
Air consumption >10L/min
Operating environment Temperature: 20ºC-27ºC, Humidity: 40%-70% relative humidity
Skew Adjustment System yes
Electrostatic Dust
Removal
 yes
Water Cooling System yes
Coating Unit optional
Digital Varnishing optional
Cold Foil Stamping optional
Hot Foil Stamping optional
Visual inspection optional
