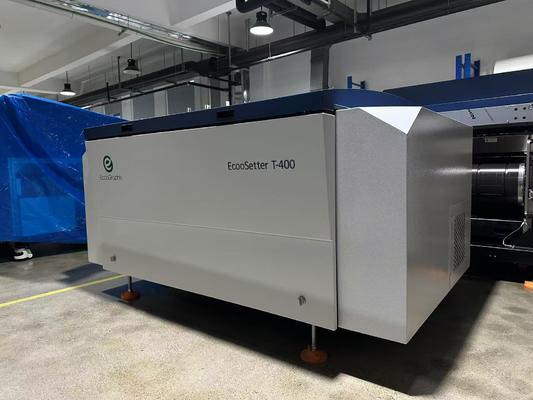

Thermal CTP Plate Macking Machine for Quick Short-Run Offset Printing

1 SET
MOQ
Negotiable
Price
Thermal CTP Plate Macking Machine for Quick Short-Run Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Classification: CTP Plate Machine
Imaging System: 48-Channel; 32-Channel; 24-Channel
Throughput(Plates/Hour): 28; 22; 16, 800mm X 690mm, 2400dpi
Resolution: 2400dpi
Plate Sizes: Max. 800mm X 660mm, Min. 400mm X 300mm

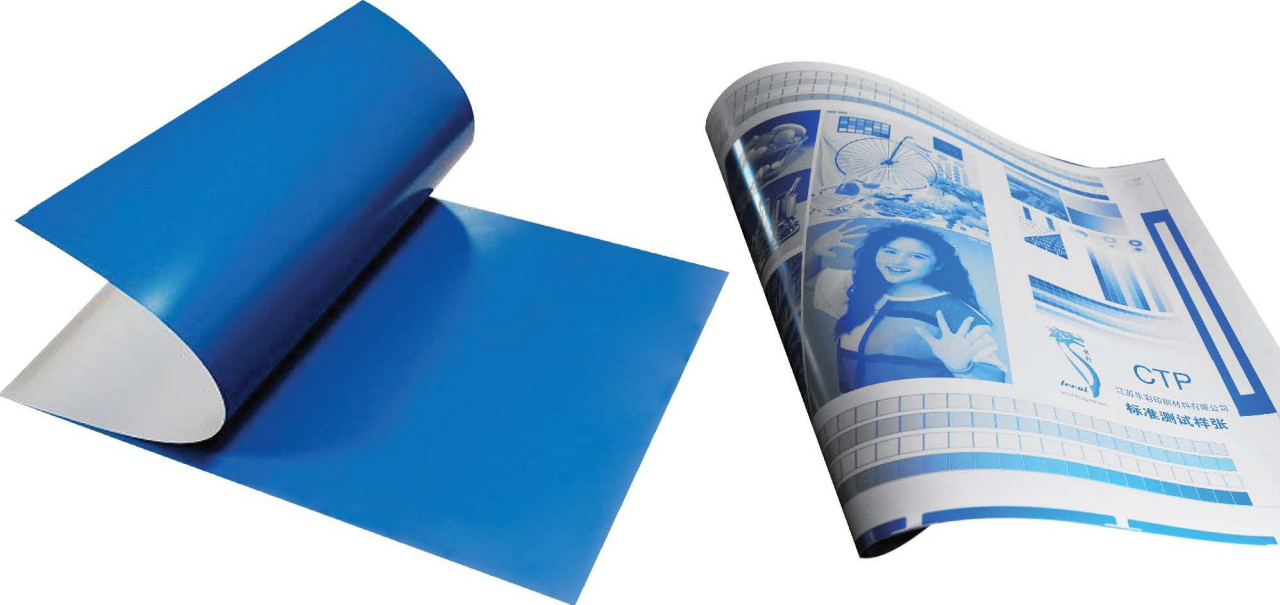

Media Type: Positive 830nm Thermal CTP Plate
Plate Thickness: 0.15mm To 0.30mm
Power Supply: Single Phase: 220AC, +6%, -10%, Power Consumption: 4KW
Highlight:

Thermal CTP Plate Machine

,

Quick Short-Run CTP Plate Machine

,

Offset Printing CTP Plate Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSetter T-400 F/S/E
Payment & Shipping Terms

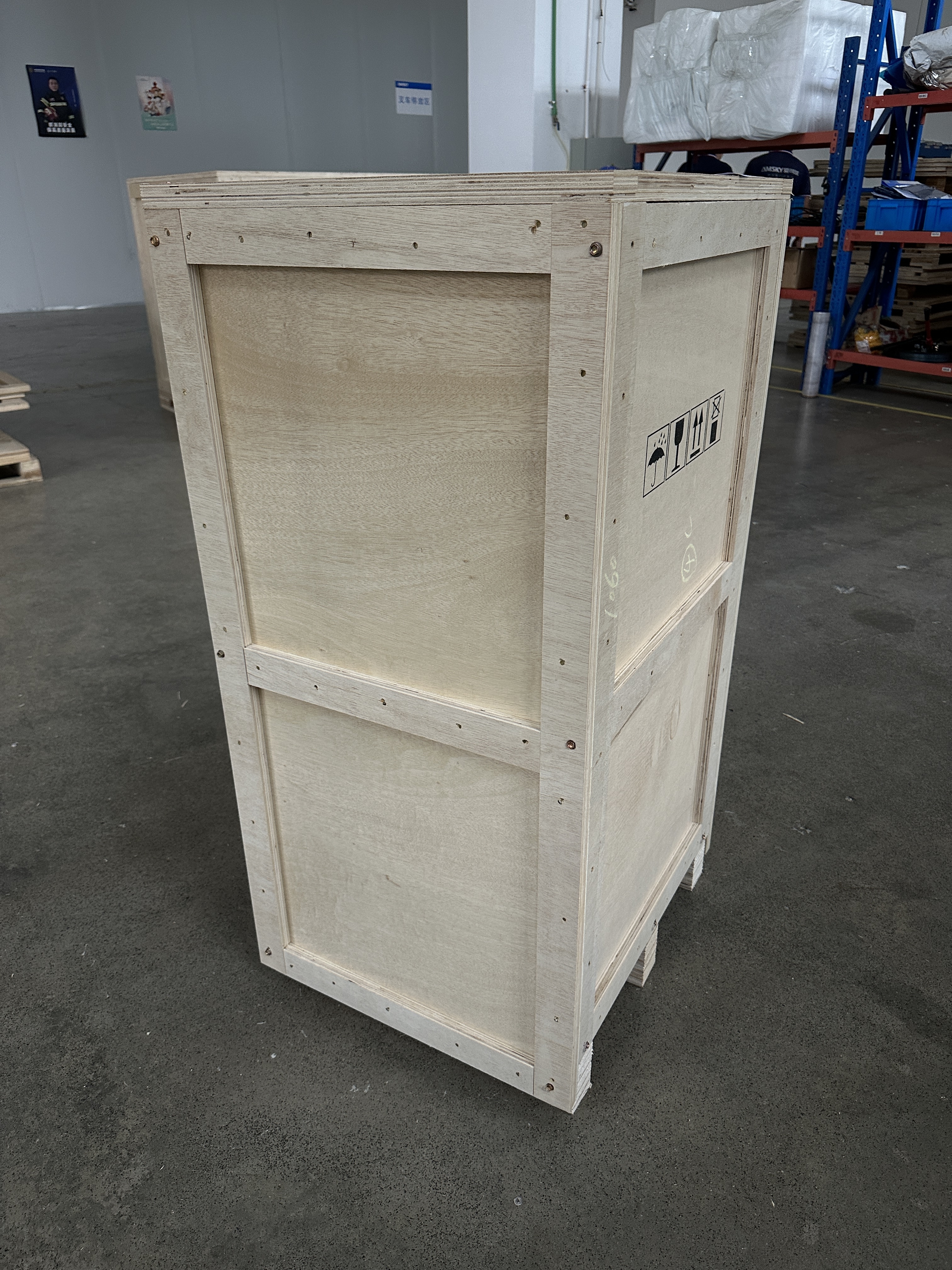

Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 10,000 Sets/Year
Product Description

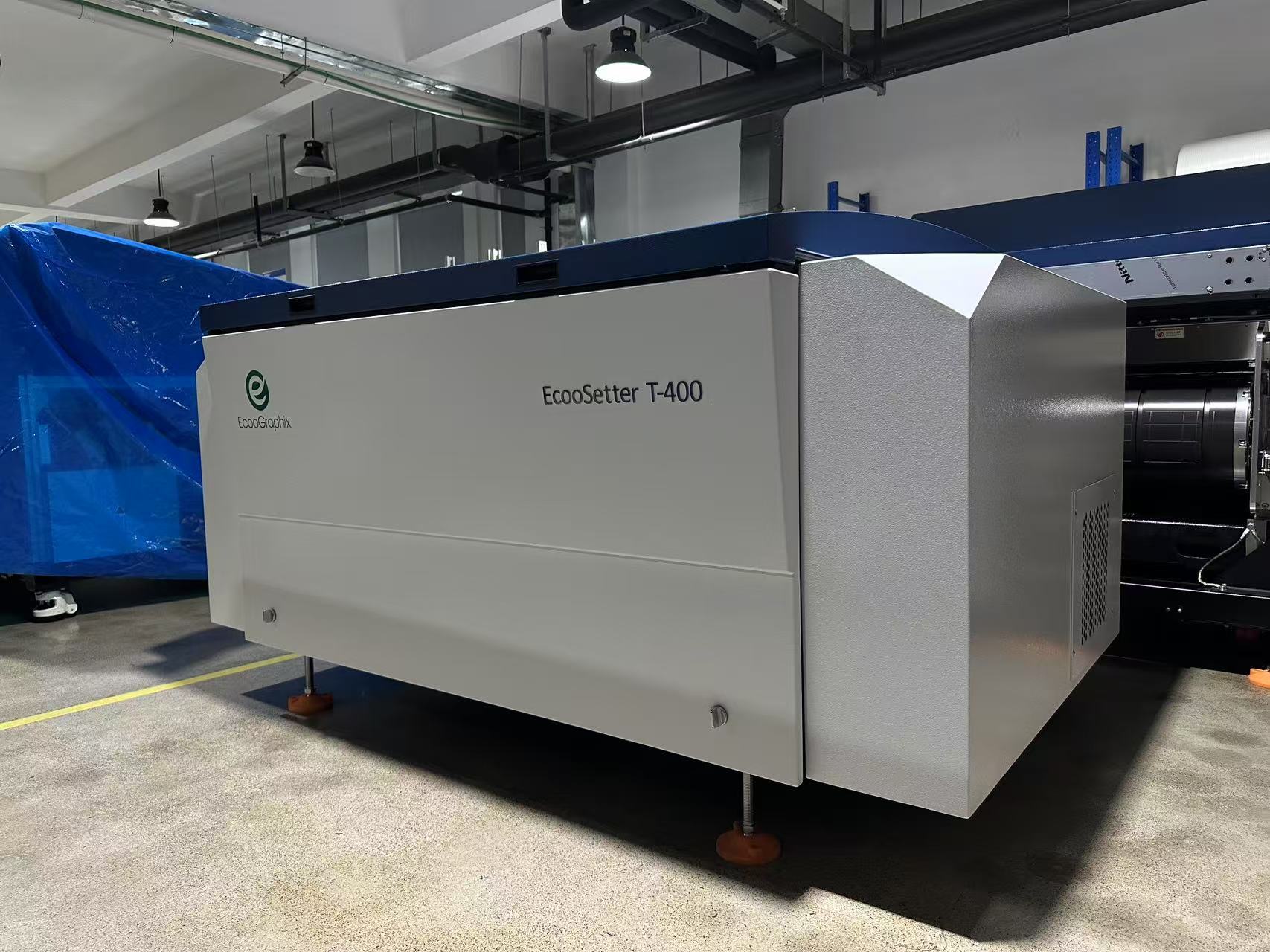

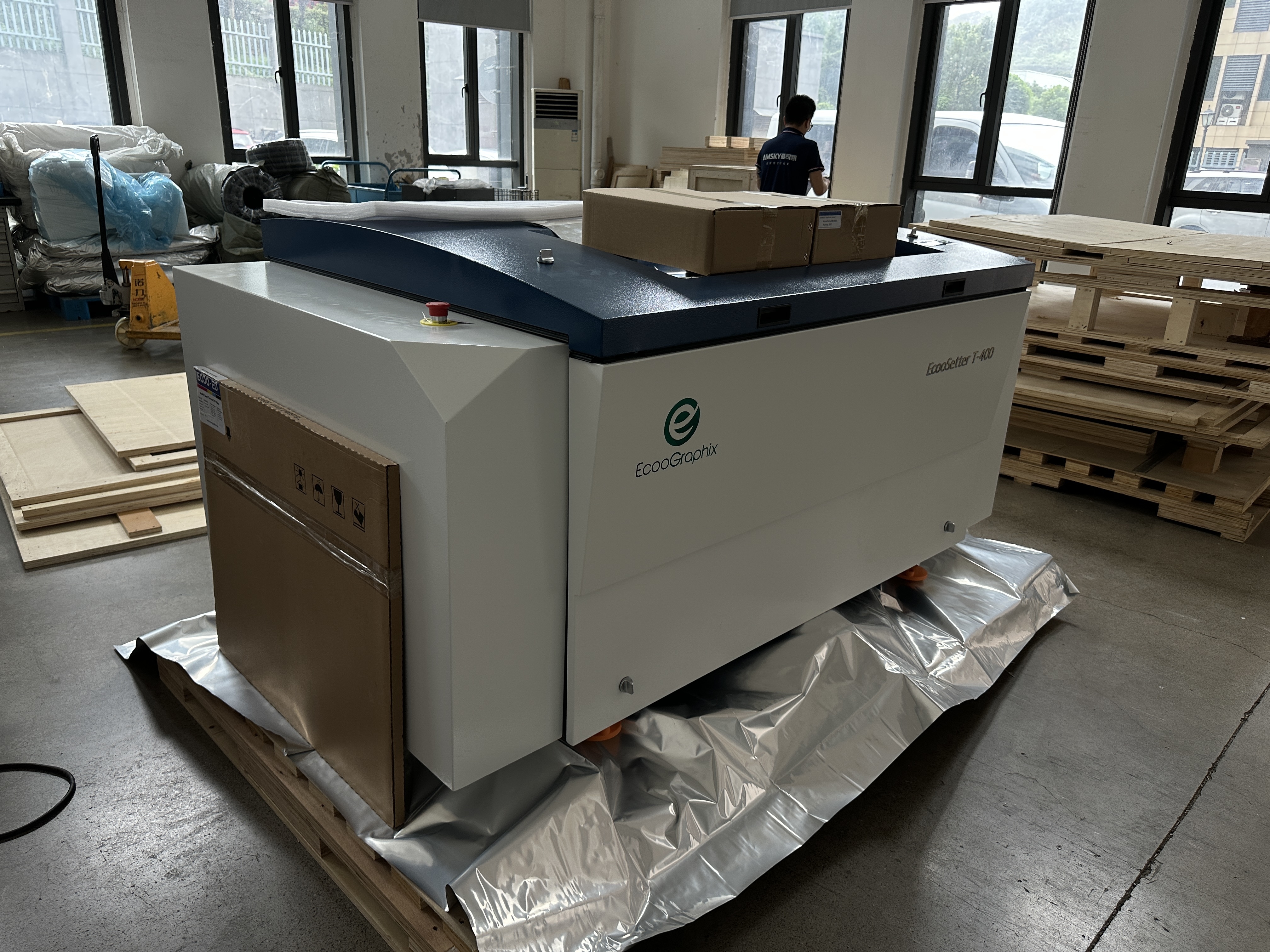

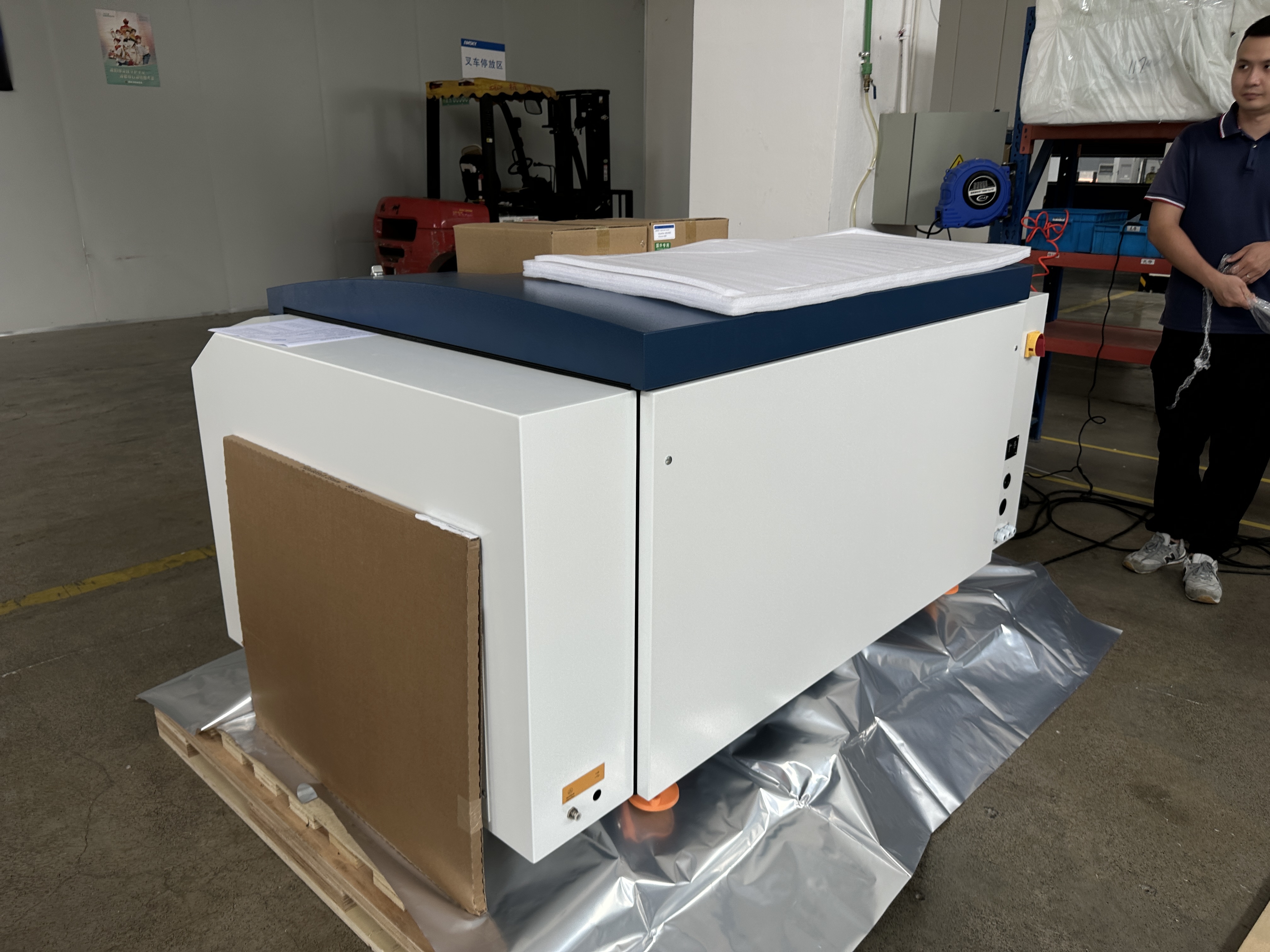

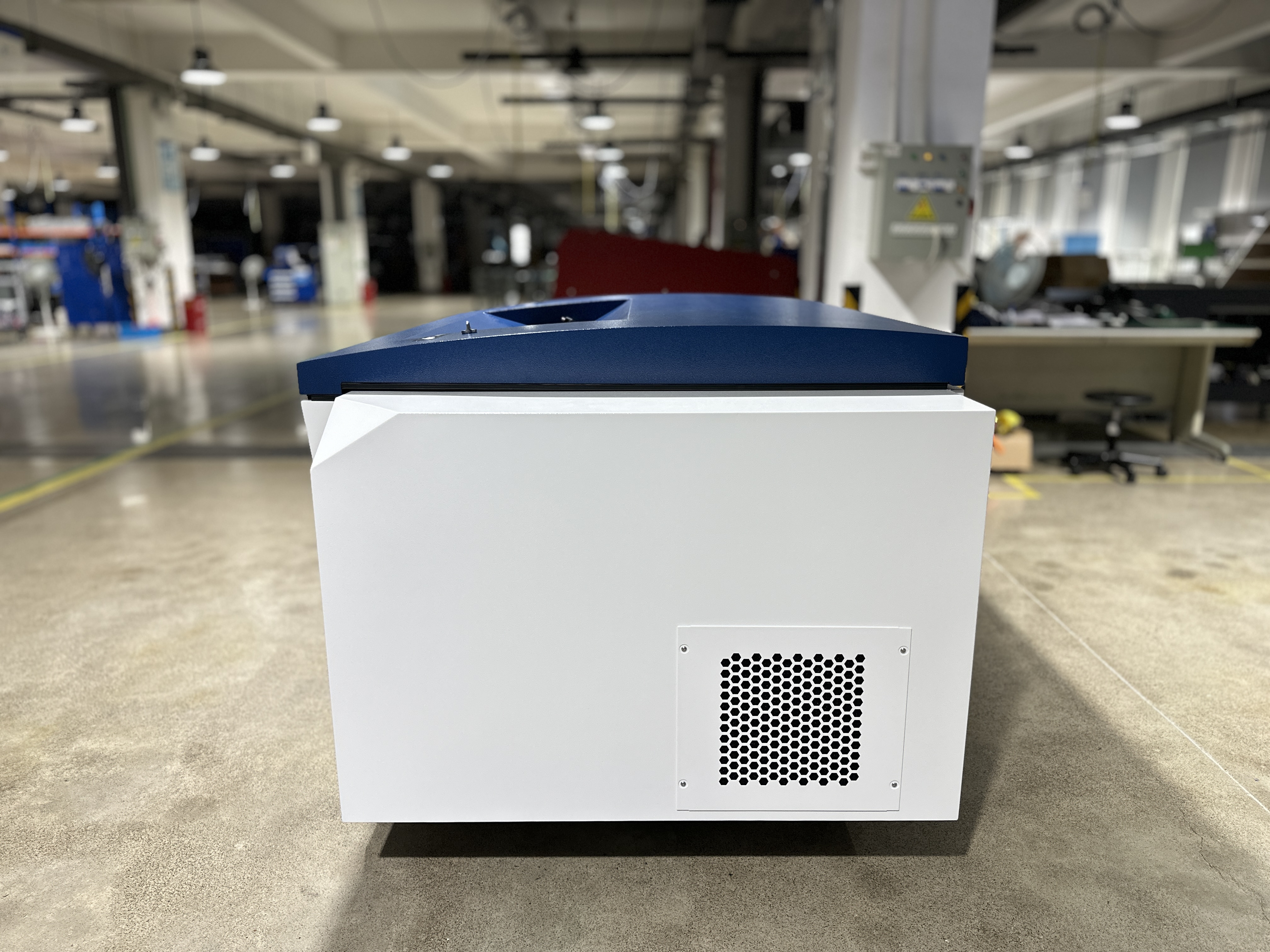

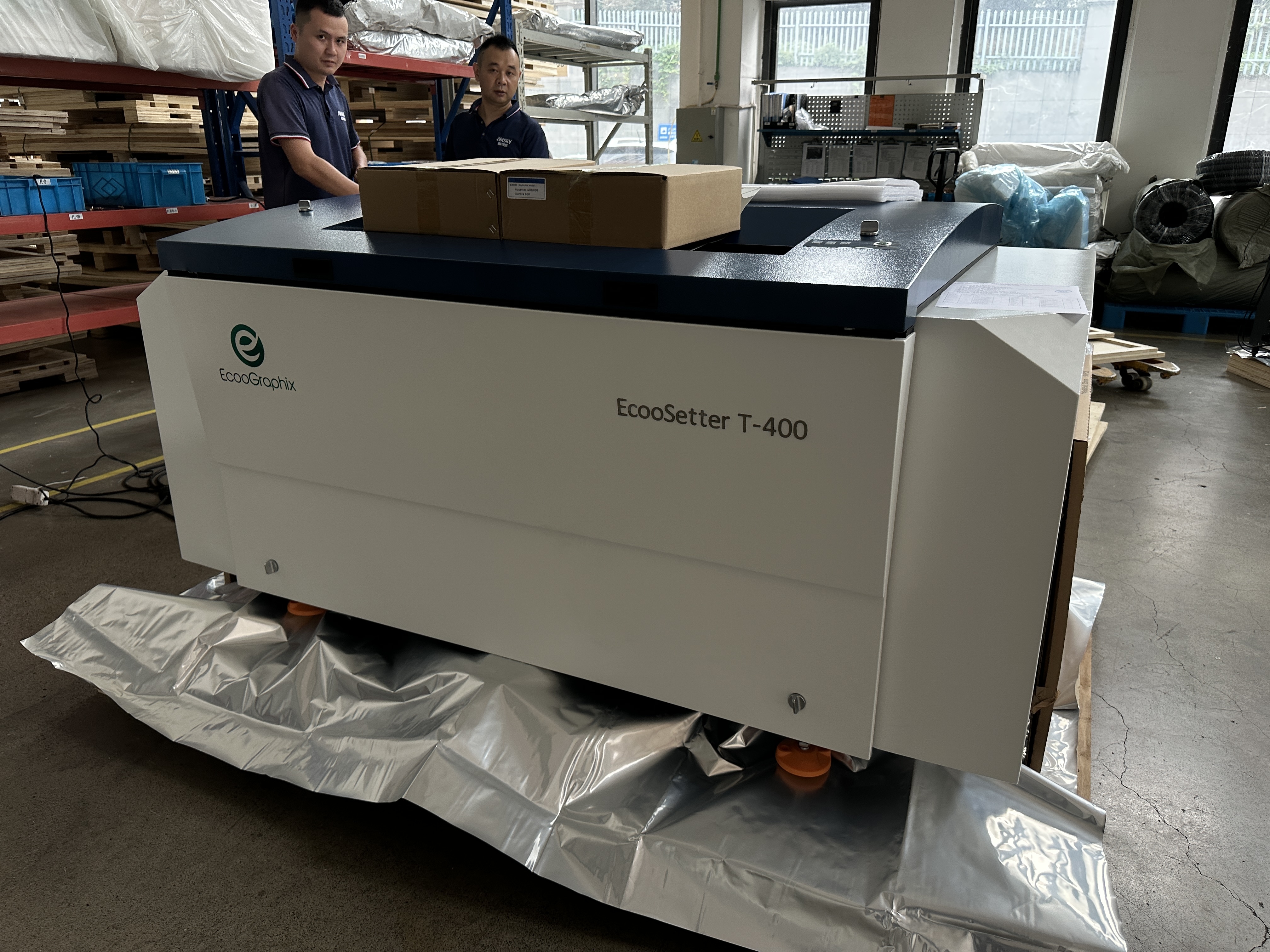

EcooGraphix Plate Making Machine Thermal CTP Machine



1. Application



The EcooGraphix Conventional CTP (UV-CTP/CTCP) Plate Making Machine offers an indispensable prepress solution tailored for quick short-run offset printing. This advanced machine streamlines the plate-making process by directly transferring computer images to CTP plates. By eliminating the need for traditional film, it significantly reduces labor costs and enhances overall production efficiency.

With the EcooGraphix CTP system, you can expect precise imaging and consistent quality, ensuring that each print run meets high standards. This makes it an ideal choice for businesses looking to optimize their prepress operations while maintaining a competitive edge in the fast-paced printing industry.





2. Specifications

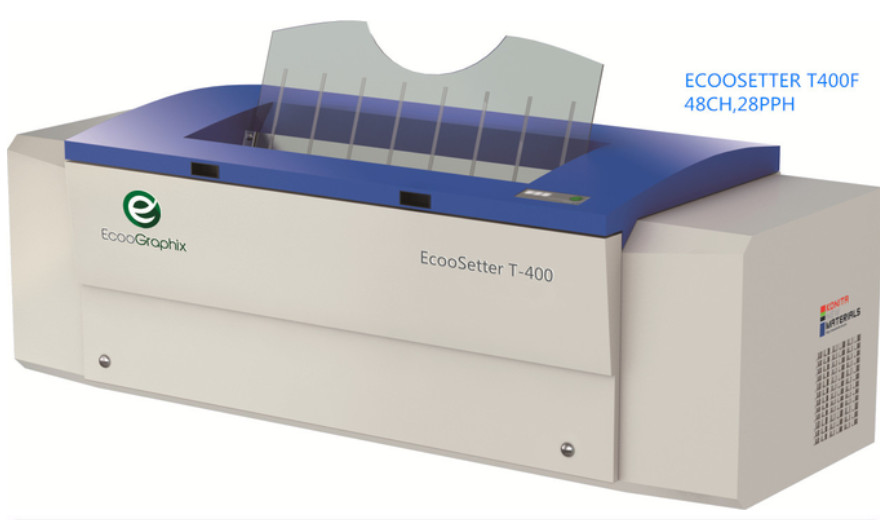

ECOO T-400 Series Thermal CTP Specifications
Model T-400F T-400S T-400E
Exposing Method External Drum
Imaging System 48-channel 32-channel 24-channel
Discrete 830nm laser diode
Throughput 28plates/hour 22plates/hour 16plates/hour
800mm x 690mm, 2400dpi
Plate Sizes Max. 800mm x 660mm
Min. 400mm x 300mm
Exposing Size Max. 800mm x 646mm
Min. 260mm x 284mm
Media Type Positive 830nm thermal CTP plate
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Repeatability

±5μm (Continuous exposure for 4 times or above on the same plate with

a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading Semi-automatic
Net Weight 800kg
Machine Size (WxLxH)mm 1900 x 1200 x 1000
Power Supply Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
