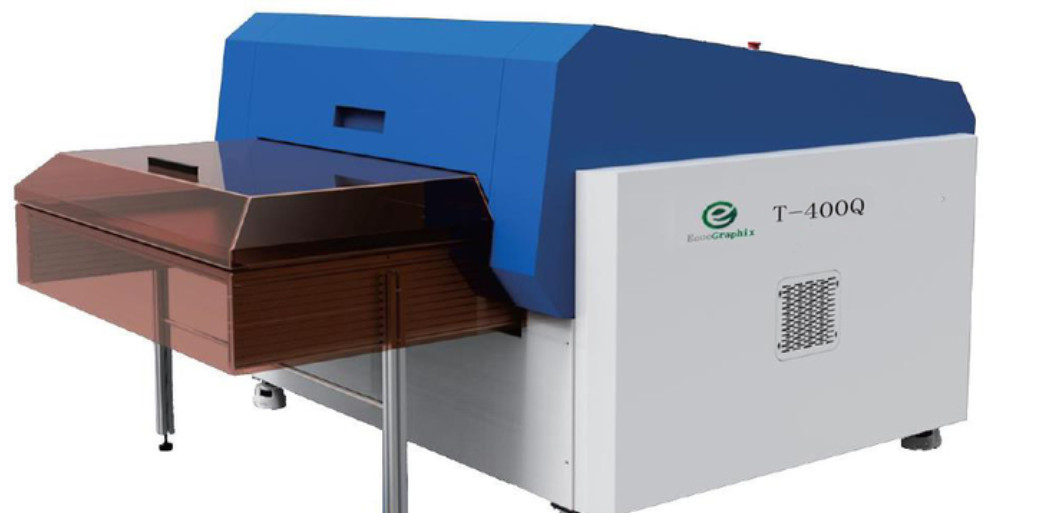

Automatic Online Thermal CTP T400 series For A2 Offset Printing Plate
For Newspaper, Commercial Packing Printing
Features:
1) Superior Dot Quality Reproduction:
a) Achieves dot reproduction from 1% to 99%
b) Supports up to 250lpi screening
c) Offers 2400 dpi resolution, with optional 1200dpi
2) Impressive Production Speed:
- Processes at 55 plates per hour, with a size of 1030X800 at 2400 dpi
3) Versatile Compatibility:
- Fully qualified for use with thermal non-process plates and process plates
4) Premium Components:
- Utilizes top-class components and parts from renowned international suppliers in Japan, USA, and Germany
5) Longevity and Warranty:
- Laser diodes boast a lifetime of over 10,000 imaging hours (approximately 20,000 plates), backed by a 3-year warranty with free part replacements
6) Extended Machine Warranty:
- Offers a 3-year warranty with free replacement of all parts
7) Cost-Effective Maintenance:
- After the 3-year warranty period, parts are available at very low cost, for example, laser diodes are priced at US$250 per piece.
A New Era of Top-end CTP
--- Super fast, Supreme Imaging Quality, Full Automation (Inline punch built-in)
Similar Models
| T-800 Q (F, V, X)Specifications |
| Model |
F |
V |
X |
| Exposing Method |
External Drum |
| Imaging System |
825nm laser |
Throughput
|
35plates/hour |
45plates/hour |
55plates/hour |
| 1030mm x 800mm, 2400dpi, Plate sensitivity 120mj/cm² |
| Plate Sizes |
Max.1163mm x 940mm
Min.400mm x 300mm |
| Plate Thickness |
0.15mm, 0.30mm |
| Resolution |
Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable high-resolution option: maximum up to 10000dpi at fast scan direction |
| Repeatability |
0.01mm |
| Interface |
Optical Fiber(Fiberway) |
| Plate Loading |
Standard: Simplified Autoloader or multi-cassette Autoloader(four cassettes) |
| Punching System |
Optional: internal punching(maximum four sets of plate holes) |
| Net Weight |
CTP: 1200kg, Simplified Autoloader: 200KG, Multi-cassette Autoloader: 570KG |
Machine Size
(WxLxH)mm |
1900x2370x1320 |
| Power Supply |
CTP(single phase:220V, Max power(Peak Value): 4KW)
Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W))
Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W)) |
Operation
Environment |
recommended:21-25ºC, allowable temperature: 15-30ºC,relative humidity:40-70% |
New Laser head technology makes the plate-making performance stable. At the same time, the speed is improved by leaps and bounds.
Linear Motor:
Combining high acceleration with exceptionally stable operation, linear motor drive ensures high positioning accuracy, thereby guaranteeing precise and accurate printing.
Direct Motor Drive Drum:
Implementing direct motor drive drum technology accelerates startup times and significantly enhances production efficiency.
Full-automatically continuous printing with Inline punch
Equipped with automatic plate loading and unloading, automatic feeding, and automatic punching functions, it can work
continuously without interruption to maximize the performance
Automatic Plate Feeding Cassette:
Our large-capacity automatic plate feeding system accommodates up to 400 plates simultaneously and facilitates seamless switching between four plate specifications. This feature not only saves manpower but also enhances printing speed, enabling effortless full-automated continuous plate printing.
