Name: 4 up Ctcp UV CTP Machine for Offset Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoosetter UV-400
Price: 150000.00 USD
Availability: InStock

4 up Ctcp UV CTP Machine for Offset Printing

1SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 4up Ctcp UV CTP Machine

Throughput: 16/22/28pph

Plate Sizes: Max.800mm X 660mm; Min. 260mm X 300mm

Media Type: Positive UV-CTP/CTCP Plate Or High Sensitive PS Plate

Plate Thickness: 0.14mm To 0.30mm

Machine Size (WxLxH)mm: 1900x1200x1000

Highlight:

4 up Ctcp UV CTP Machine

Offset Printing Ctcp UV CTP Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: EcooGraphix

Certification: CE, ISO900

Model Number: Ecoosetter UV-400

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 30-45 days

Payment Terms: L/C, T/T

Supply Ability: 5000 SETS/YEAR

Gallery

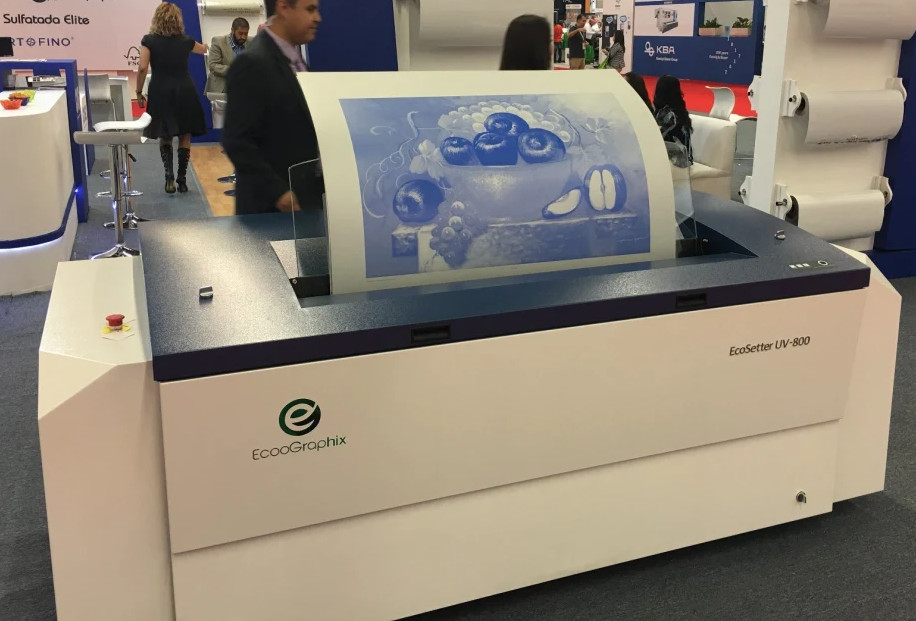

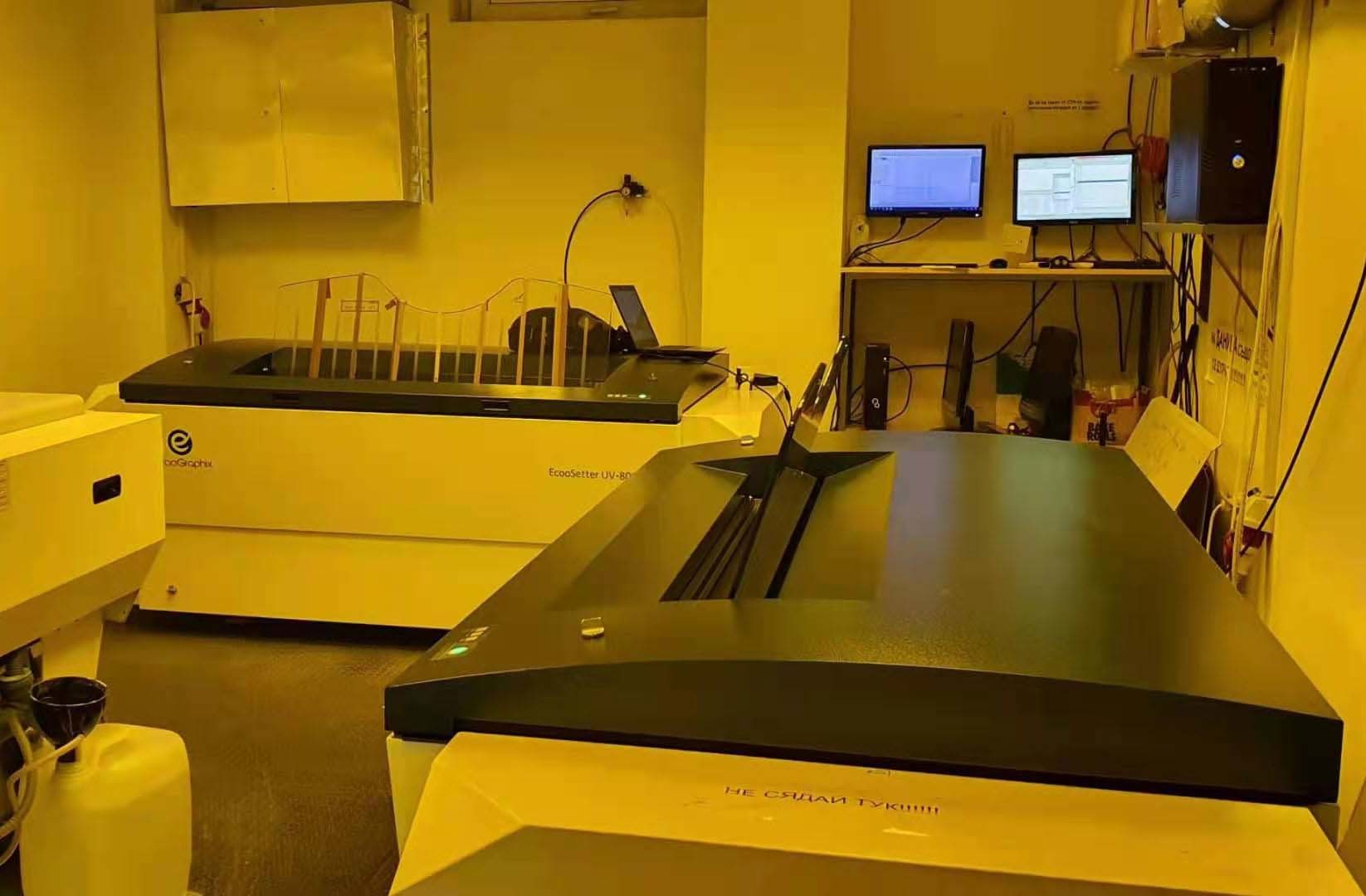

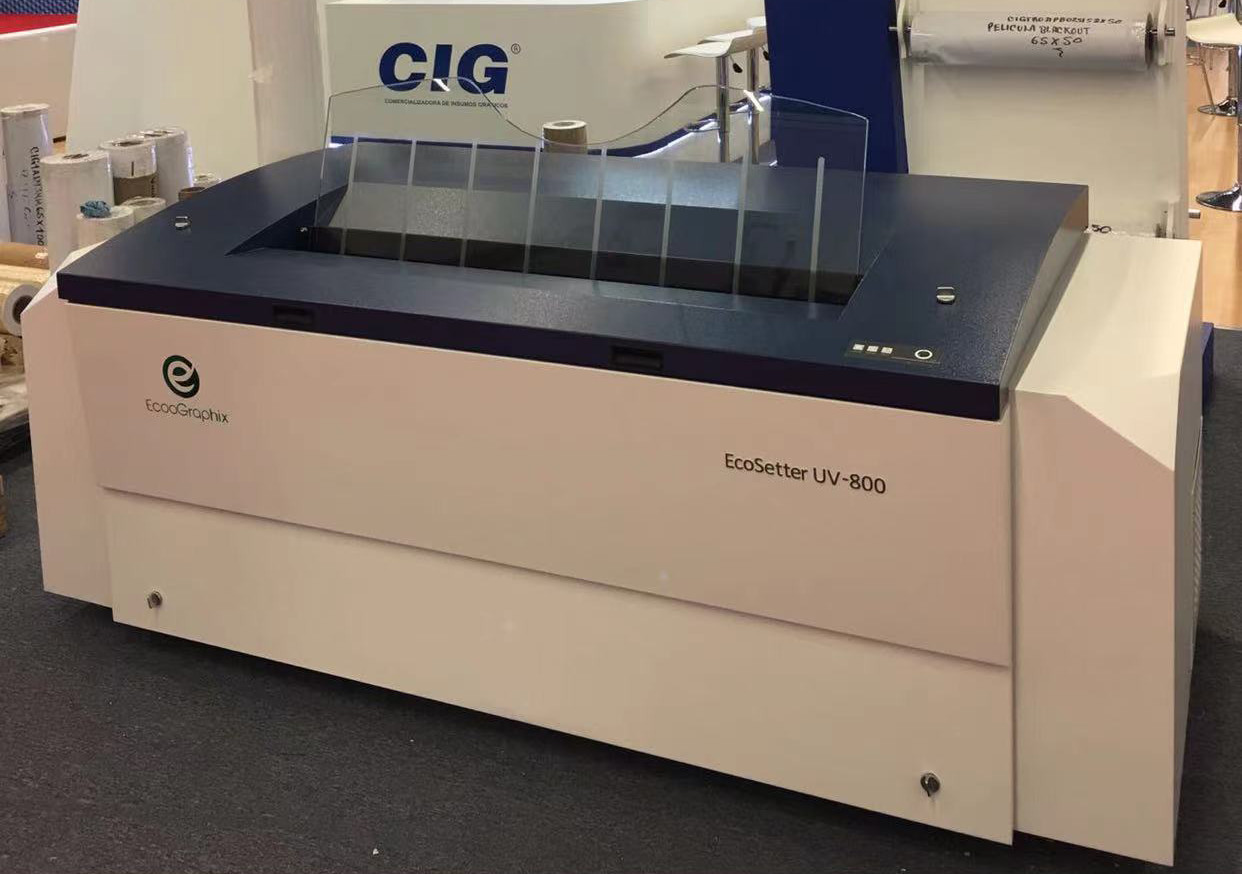

4 up Ctcp UV CTP Machine for Offset Printing

Product Description

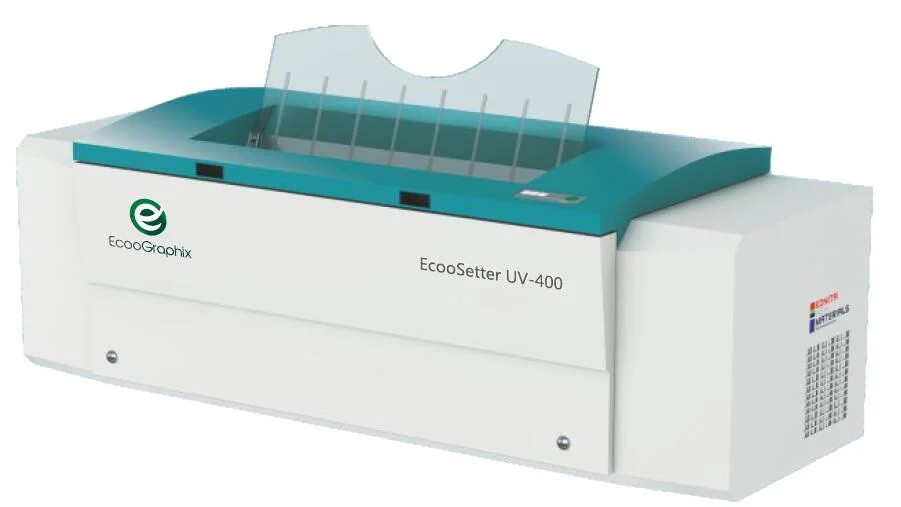

4up Ctcp UV CTP Machine Model: UV-400 Serie

EcooGraphix UV 800 series are for A1 or B1 paper size newspaper or commecial printing with the output speed of 16PPH to 28PPH.

The CTP is operated manually and is very easy to use.

Customers can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

Specification

EcooGraphix UV400 Series
Model	UV-400F	UV-400S	UV-400E
Imaging System	48	32	24
Output Speed	28	22	16
	800mm x 600mm / 2400dpi
Plate Size	Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness	0.15mm to 0.30mm
Resolution	2400dpi
Weight	800KG
Repeatability	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm	*190012001000mm(WDH)*
Power Supply	single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment	recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH
