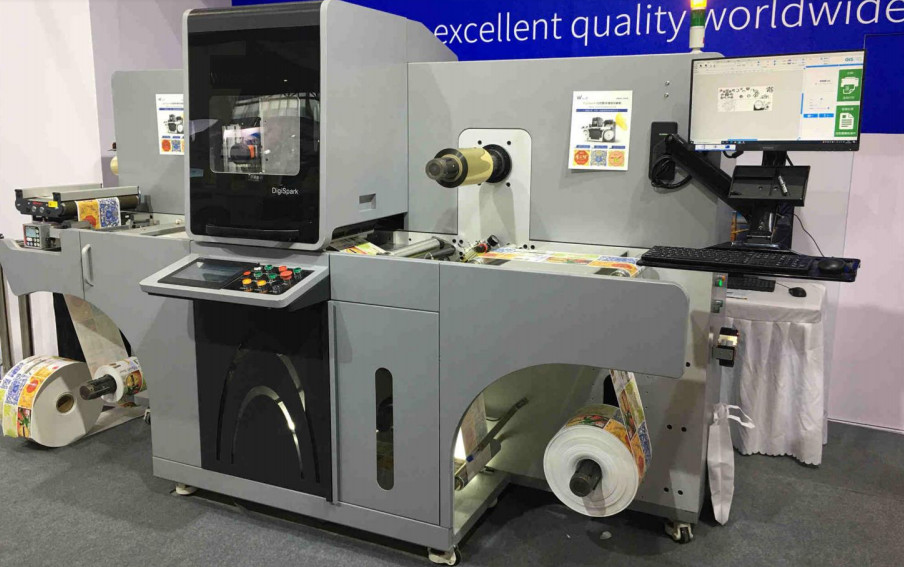

DoD Inkjet Digital Foil Stamping and Varnishing Enhancing Machine
Introduction
EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic
processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing,
etc., without the need for plate making.
It can reduce costs and instantly realize the unique visual effects of printing.
This is a digital post-press equipment that creates new profit points for users,
and is a digital efficiency-enhancing printing machine.
Specification
EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine
Model
EcooSpark
Printing Technology
UV Piezo DoD-inkjet
Resolution
360*360dpi, up to 1440*360dpi
Printing speed
6m/min - 50m/min(depending on polymer layer thickness)
Variable Image system
PDF, Optimized PDF, Optional barcode system
Supported image standards
PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates
Offset, Digital, Plastics, Laminated and Coated Substrates
Printing image width
288mm (extendable to 330 mm)
Polymer
WB-DS-Clear Polymer
Polymer layer thickness
From 10 up to 250 microns
Ink curing
Inter UV-LED Pre-curing/ Full curing by UV-LED
Unwinder diameter
Max. 700mm, Core 76mm
Rewinder diameter
Max. 700mm, Core 76mm
Substrates thickness
30-400 micro
Substrates width
Max. 330mm
Press with Foil station
Machine dimensions(LxHxW): 3500mm x 1900mm x 1800mm
Operating environment Temperature:
15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements
Voltage: 3x380, ±5% 3 phases +G+N;
Frequency: 50/60 Hz; Current: Avg. 58.6 Amps 23KW
Weight
2800kg
| EcooSpark Digital Foil Stamping And Varnishing Enhancing Machine |
| Model |
EcooSpark |
| Printing Technology |
UV Piezo DoD-inkjet |
| Resolution |
360*360dpi, up to 1440*360dpi |
| Printing speed |
6m/min - 50m/min(depend on polymer layer thickness) |
| Variable Image system |
PDF, Optimized PDF, Optional barcode system |
| Supported image standards |
PDF, PDF/VT, TIFF, JPEG, BMP & other data base files |
| Substrates |
Offset, Digital, Plastics, Laminated and Coated Substrates |
| Printing image width |
288mm (extendable to 330 mm) |
| Polymer |
WB-DS-Clear Polymer |
| Polymer layer thickness |
From 10 up to 250 microns |
| Ink curing |
Inter UV-LED Pre-curing/ Full curing by UV-LED |
| Unwinder diameter |
Max. 700mm, Core 76mm |
| Rewinder diameter |
Max. 700mm, Core 76mm |
| Substrates thickness |
30-400 micro |
| Substrates width |
Max. 330mm |
| Press with Foil station |
Machine dimensions(LxHxW): 3500mm x 1900mm x 1800mm |
| Operating environment |
Temperature: 15ºC-30ºC,
Humidity: 40%-80% relative humidity
|
| Electrical requirements |
Voltage: 3x380, ±5% 3 phases+G+N; Frequency: 50/60 Hz
Current: Avg. 58.6 Amps 23KW |
| Weight |
2800kg |
|
Functions
Digital Foil Stamping(Embossing/Raise Effect), Digital Varnishing, 3D Shining effect,
Spot Varnishing, Braille, etc.
Realizing Personalized printing, variable data printing, special effect printing,
Generating additional value on your printing jobs with high efficiency,
lower cost, and high added value, producing jobs or effects which conventional
ways can not be achieved.
Features
Sturdy structure(double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil
High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable
