Economical Digital Label Printer And Cutter

 Economical Digital Label Printer And Cutter

▼  Introduction

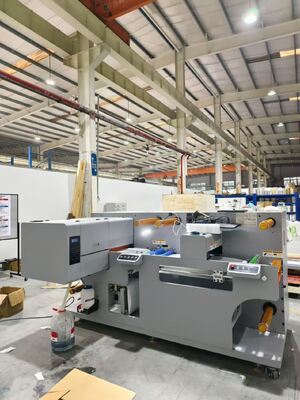

ECOO Label IQ-330 is an entry level digital label printing machine with all finishing options included. This is particularly suitable for small volume and short run digital printing requirements.

ECOO Label IQ-330 printing and cutting intergrated machine can print CMYK, white inks and varnish on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like stamping, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.

▼  Specification

Digital Label Printing Machine

Model
ECOO Label IQ-330

Max. Roll Diameter
350mm

Max. Media Width
330mm

Print Head
EPSON i3200-U1x4

Ink Type
UV ink

Ink Color
CMYK+W+V

Ink Bottle Capacity
1L

Print Speed
4pass: 56m/h; 6pass: 40m/h; 8pass: 28m/h

File Format
JPG/ PNG/ PDF

Cutting Length
10-350mm

Cutting Width
10-320mm

Repeat Die-cutting Accuracy
± 0.1mm

Number Of Die-cutting Heads
2

Number Of Slitting Knives
Standard 3 (optinal according to requirements)

Power Consumption
4kw

Power Supply
AC220-240V, 50-60hz

Weight
2000kgs

Printer Size
2500mm*1800mm*1700mm

Laminating Specification
Wide 330mm

Gold Foil Standard
Hot foil stamping

Printing Resolution
720*1200; 720*1800; 720*2400

Max. Printing Weight
330*320mm

Min. Printing Weight
330*100mm

Max. Printing Length
10000mm

Min. Printing Length
0.5mm

Thickness Of Printing Materials
Less than 300g

​

▼  Features

◊  Integrated Versatility:
One Machine, lnfinite Possibilities. ECOO Label IQ-330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.

◊  Excellent Printing Performance:
Whether it's white, varnish, or colored UV inks, the ECOO Label IQ-330 provides excellent printing effects on various media, making your labels stand out on the shelf.

◊  High Precision Cutting:
With ball screws and independent servo motors, it achieves +/-0.1mm cutting accuracy for flawless labels.

◊  Wide Range Of Applications:
From food packaging to electronic product identification, from cosmetic labels to industrial data encoding, the ECOO Label IQ-330 can easily handle it all.

▼  Highlights

​

1) UV inkjet printing technology

2) CMYK plus white, plus digital varnishing included

3) Hot foil stamping included

4) Laminating included

5) Digital die cutting and slitting included

6) All substrates applicable

▼  Details

	Printing Unit: Equipped with 4 EPSON I3200-U1 print-heads. It enables high-speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal. It handles both small and large orders with ease.
	Buffer: The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching, deformation, or wrinkle formation.
	Cutting Unit: The cutting unit uses servo motors controlled pressure, eliminating manual adjustment. Reducing downtime and boosting production efficiency.
	Automatically Control: Self-developed interface enables color, speed, and data base  integration, making the entire process easy to learn and operate.

▼  Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

​

▼  Certificates

▼  FAQ

Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.


Q2: Where is your factory ?

A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!


Q3: How long is the lead time ?

A: The lead time is normally 30 days. We can accelerate for emergency cases.


Q4: Is there any certification for your machine ?

A: Yes, all our machines have been certified by SGS and CE.

Q5: How long is the warranty period ?

A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.


Q6: What is your normal payment term ?

A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.

Q7: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
