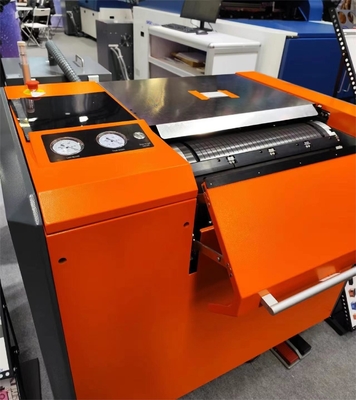

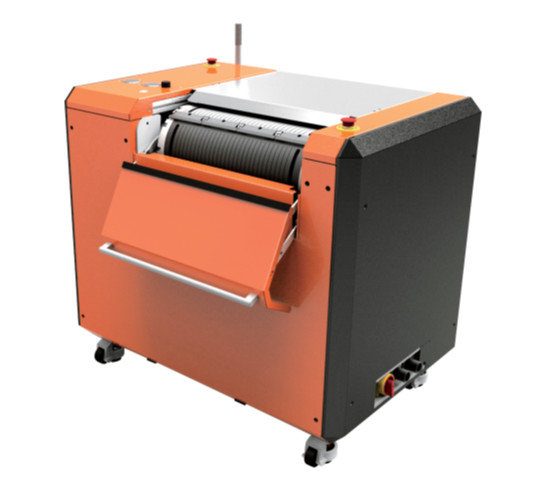

EcooSetter Flexo FL-400E Flexographic CTP Plate Machine Flexo CTP Machine

Characteristics

- **User-Friendly**: Plate loading is completed with a single button press.
- **Automatic Focus**: Supports plates from 0.14mm to 1.14mm, maintaining consistent focus.
- **Quick Drum Balance**: Stabilizes in under 5 seconds.
- **Laser Channel Auto-Switch**: Ensures continuous production if a laser channel fails.
- **Linear Motor**: Enhances accuracy and reliability.
- **Durable Parts**: Lasers have a lifespan exceeding 10,000 hours.

Specification

ECOO Flexo 400 Series CTP Specifications

Model
FL-400

Exposing Method
External Drum

Imaging System
16-channel

Throughput
1.25 m²/hour

Max. Breadth
430mm x 330mm

Laser Power
High-power semiconductor laser diode

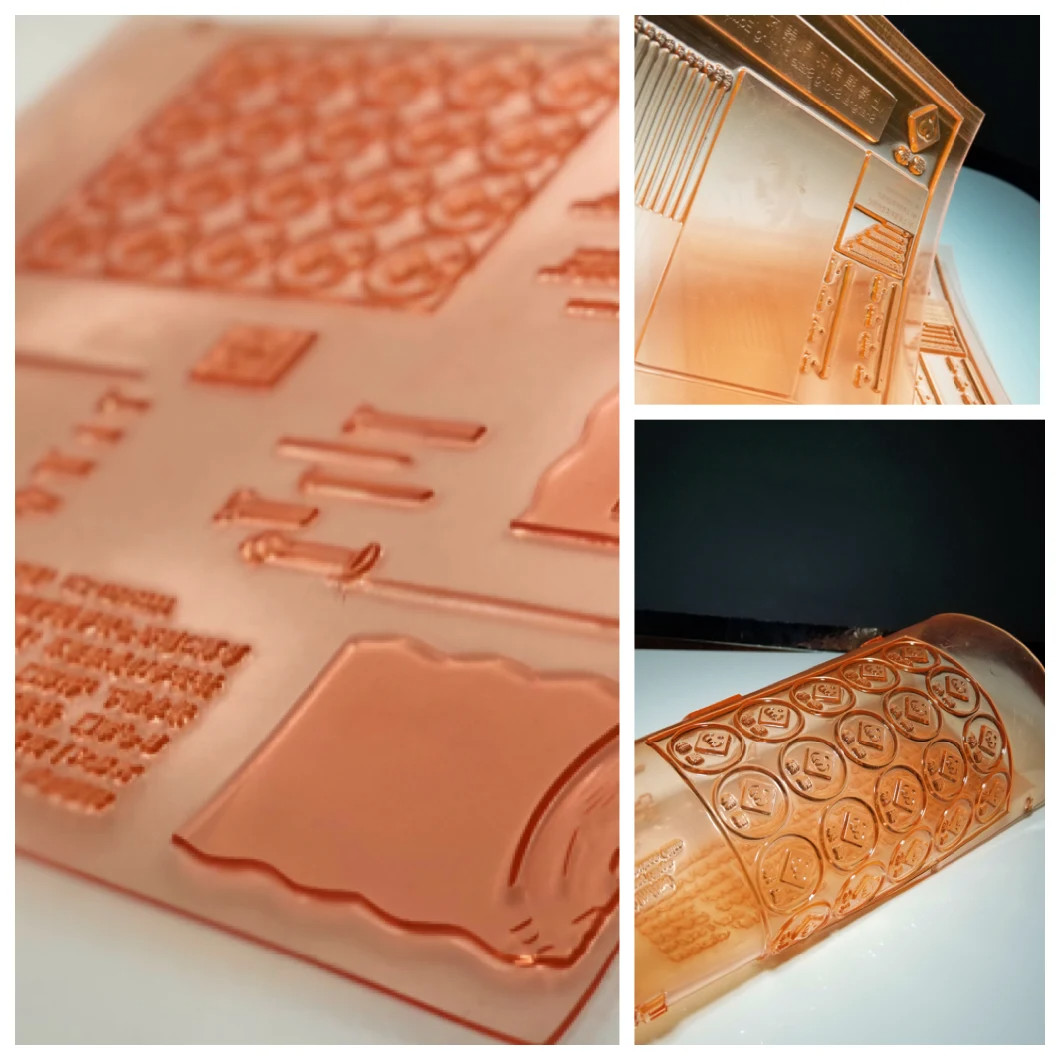

Media Type
Digital Relief Printing Plate(water-wash), Digital Flexo Plate(water wash), Heat Corrosive Film, Digital Flexo Plate(solvent-based)

Plate Thickness
0.14mm to 1.7mm

Resolution
4000dpi

Repeatability
± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface
USB 2.0

Plate Loading
Manual load and unload

Net Weight
Approximately 280kg

Machine Size(WxLxH)mm
830 x 630 x 1055mm

Power Supply
220V/50Hz, 60Hz, Flexo machine: 0.5kw + Vacuum1.5kw
​​
Operation Environment
Recommended Temperature: 18-30ºC, Humidity: 10%-80%

Major Highlights

Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction up to 250lpi screening, 4000dpi resolution.

Robustness and simplicity: robust machine and easy to use. User-friendly and simple design to avoid human error.

Worldwide top-class components and parts supplied by internationally well-known suppliers from Japan, USA, and Germany.

Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)

Long warranty of the machine: 3 years warranty (free replacement of all parts)

Low Cost of Parts: after a 3-year warranty, very low cost of parts. For example, laser diode at US$ 250 per piece.

Guaranteed Service: Installation and training conducted by a technical engineer from the factory, ensuring the best setup and training to be achieved. Regular remote maintenance is to be conducted every 2 months. Proactively revisited by engineers to be conducted. 7x24 hours service response.

Proven Worldwide market leader:

Over 6000 units installed worldwide over the past 10 years.

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics.

Installations in other countries: UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria, etc.

 Producing And Packaging​

From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.

Certificates

FAQ

Q1: What are your main products?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory?
A: Our CTP machine factory is in Hangzhou City, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!

Q3: Is there any certification for your CTP machine?
A: Yes, all our CTP machines have been certified by SGS and CE.

Q4: Can you also supply the Workflow and RIP?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.


Q5: What about the installation and after-sales technician support?
A: Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets, the service charge, and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and the EcooGraphix technical service team supports these installations remotely with regular onsite visits.
These end users' printers all run the CTP systems with satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle with installations, training, and after-sales service. We guarantee your satisfaction.
