Home /Products/CTP Plate Machine/EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter

EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter

1SET
MOQ
Negotiable
Price
EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Computer To Plate Making Machine
Exposing Mothod: External Drum
Plate Sizes: Max.800mm X 660mm Min. 400mm X 300mm
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi
Machine Size: 1900x1200x1000(WxLxH)mm
Highlight:

ecoographix

,

Eco Graphix

,

2400dpi computer to plate making machine
Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter T-400
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Product Description

Product Description

Product Description

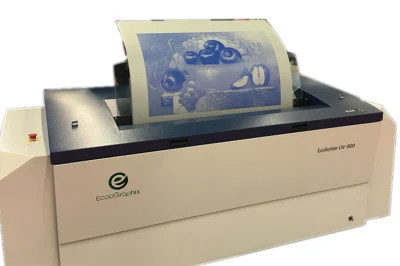

EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter 0
Thermal-CTP T-400 series, most popular CTP, one of the best seller, suitable for middle/small printing factory.

Thermal-CTP T-400 series is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.
Specification



EcooGraphix T-400 Series Thermal CTP Specifications
Model T-400F T-400S T-400E
Imaging System 48 channel 32 channel 24 channel
Output Speed 28pph 22pph 16pph
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900×1200×1000mm(W×D×H)
Power Supply single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH
Features
Features:

-Little space occupaid, more flexible

-Small volume, high stability and perfect output quality

-Different speed setting to satisfy different demanding.

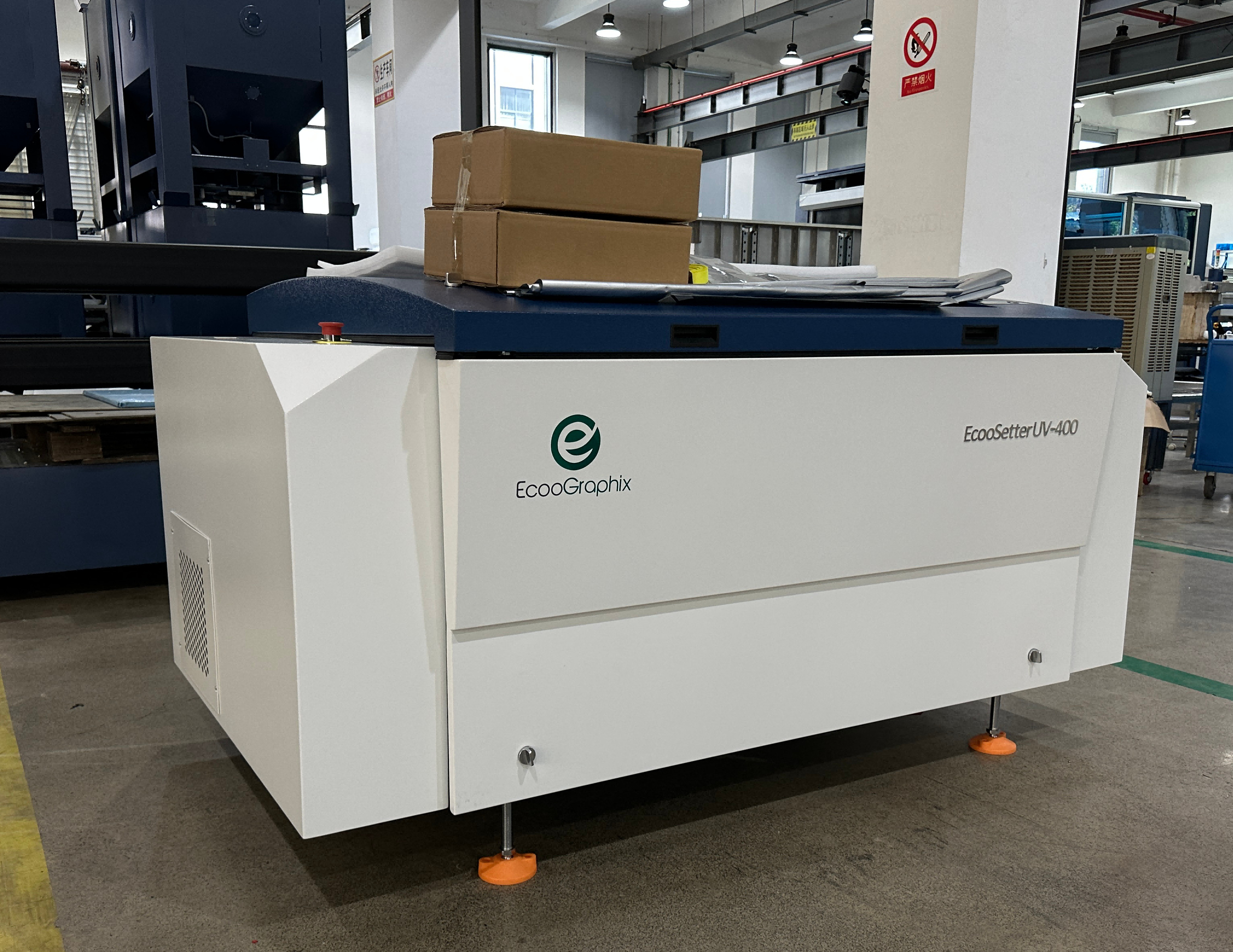

EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter 1



Tag:

offset printing ctp machine

offset printing ctp plate machine

automatic computer to plate machine
