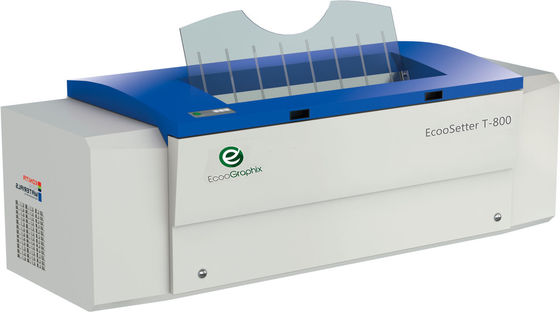

35/45/55 Plates/hour Automatic Thermal CTP Machine

Full Automatic Thermal CTP Machine With 256-channel Laser Light Valve
Model: T-800Q

Product description:
Adopt 256-channel laser light valve;The output speed reaches up to 35-55plates/hour for 8 up plate(1,030×800mm, Plate sensitivity: 100mJ/cm²), two times faster than former devices; With square screen imaging technology adopted, reach saturation increasing by 21% and fineness and precision ten times higher than original; With linear motor high-precision positioning equipped, achieve longer service life and lower operation and maintenance cost for customer;

Technical Specifications:

Model	T-800QE	T-800QS	T-800QH
Exposing Method	External Drum
Imaging System	32-channel	48-channel	64-channel
Discrete 830nm laser
Throughput	16PPH	22PPH	28PPH
	1030mm x 800mm, 2400dpi
Plate Sizes	Max.1163mm x 940mm; Min.400mm x 300mm
Exposing Size	Max.1163mm x 924mm; Min.400mm x 284mm
Plate Thickness	0.15mm to 0.30mm
Resolution	Standard resolutions 2,400dpi
Repeatability	±0.01mm
Interface	Optical fiber / GB Ethernet
Plate Loading	Automatic load: Single cassette
Plate Loading Quantity (0.27mm Plate)	Single cassette unit: 100 plates Multiple cassette unit: 400 plates (4 X 100 plates/cassette)
Auto slip Paper Collection Bin	Included in Autoloader
Bridge to Processor	Included
Punching System	Option: Internal punching (Max. four sets of plate holes)
Net Weight	CTP manual load(P): 890KG; CTP with single cassette: 985KG; CTP with multiple cassette: 1,350KG
Machine Size (WxLxH)mm	CTP manual load(P):1,900x2,510x1,356mm.(LxWxH) CTP with single cassette:1,900x2,431x1,356mm.(LxWxH) CTP with multiple cassette:1,900x2,687x1.356mm.(LxWXH)
Power Supply	CTP manual load(P): Single phase: 220V, Power: 3.8KW(Peak value), 1.5KW (Average) CTP with single cassette: Single phase: 220V, Power: 4.2KW(Peak value), 2KW (Average) CTP with multiple cassette: Single phase: 220V, Power: 4.6KW(Peak value), 2.5KW (Average)
Environment	Operating temperature range: 15-30°C Recommended temperature: 21-25°C Humidity: 40%-70%

Three kinds of plate loading way for your option:

Technical advantages:

1. Break through the traditional optical fiber technology limitation, and divide a laser beam into 256 channels of small laser beams that can be separately controlled, doubling the output speed; the square screen dot printed on the plate, with sharp edge feature and a rectangular-step-shaped distribution of energy, makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.

2. Use light valve device to divide a laser beam generated from single-source laser into 256 channels of small laser beams with even energy and its exposure screen dots are highly consistent.

3. The square screen dot with sharp edge feature makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.

4. Higher efficiency, lower loss-Quick plate making with 256 channels of small laser beams, output speed doubled while drum speed only 20%-50% of the conventional.
