Super Fast, Supreme Imaging Quality, Full Automation (Inline Punch Built-In)

We have transcended the limitations of traditional optical fiber technology by innovatively splitting a laser beam into 256 individual channels, each independently controllable. This breakthrough effectively doubles the output speed, revolutionizing plate production.

Our cutting-edge technology produces square-screen dots on the plate, characterized by sharp edges and a distinctive rectangular-step-shaped energy distribution. This results in remarkably clear images, boasting tenfold accuracy compared to 200lpi AM screening. Additionally, color saturation is enhanced by over 21%, delivering vivid and vibrant prints.

Key Features and Benefits:

1. Advanced 256-Channel Laser Light Valve:

   • Enhances performance by providing precise control over each channel, ensuring superior imaging quality.

2. High Output Speeds:

   • Achieves impressive output speeds of 35-55 plates per hour for 8-up plates (1,030×800mm, Plate sensitivity: 100mJ/cm²), effectively doubling the speed of previous devices.

3. Square Screen Imaging Technology:

   • Utilizes square screen imaging to increase color saturation by 21%.
   • Improves image fineness and precision tenfold compared to conventional methods, resulting in sharper, more detailed prints.

4. Linear Motor High-Precision Positioning:

   • Ensures extended service life and reduced operational and maintenance costs.
   • Provides added value to customers by minimizing downtime and enhancing productivity.

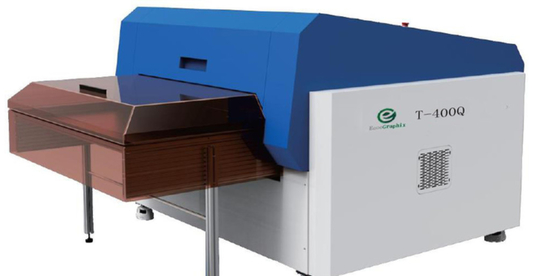

By integrating these advanced features, the ECOOGRAPHIX T-400/800 Q (F, V, X) CTP machines set a new standard in the industry, offering unparalleled speed, precision, and efficiency. This innovation not only boosts productivity but also delivers exceptional print quality, meeting the highest expectations of professional printing operations.

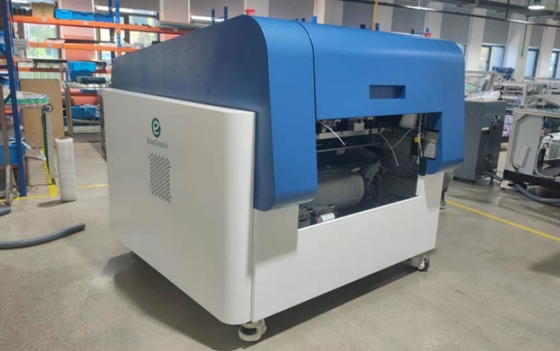

2. Major Highlights of EcooGraphixT-800 Thermal CTP:

1) Exceptional Dot Quality: Proven by the worldwide market with 1%-99% dot reproduction capability. Offers up to 250lpi screening, with optional resolutions of 2400 dpi or 1200 dpi; 12800DPI available upon request.

2) Versatility: Fully qualified for use with thermal non-process plates and process plates, ensuring compatibility with various plate types.

3) Robustness and Simplicity: Features a robust machine design that is easy to use, with a user-friendly and straightforward interface designed to minimize human error.

4) Premium Components: Utilizes top-class components and parts sourced from internationally renowned suppliers in Japan, the USA, and Germany.

5) Long Lifetime and Warranty: Laser diodes boast a lifetime of over 10,000 imaging hours, equivalent to approximately 200,000 plates. Enjoy a 3-year warranty with free replacement of all parts. Additionally, after the warranty period, parts are available at a low cost, such as a laser diode priced at US$250 per piece.

6) Guaranteed Service: Installation and training are conducted by technical engineers from the factory, ensuring the best setup and training experience. Regular remote maintenance is performed every two months, with proactive engineer visits conducted. Benefit from 24/7 service response.

7) Proven Worldwide Market Leader: With over 6000 units installed worldwide over the past decade, EcooGraphixT-800 Thermal CTP has established itself as a market leader. Notable installations include over 50 units in the USA and Canada by leading US press manufacturers, 35 units installed in Turkey by Esen Graphics, and numerous installations in countries such as the UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria, and more.

We utilize a light valve device to split a laser beam originating from a single-source laser into 256 channels of small laser beams. Each beam carries even energy distribution, ensuring consistent exposure of screen dots with remarkable uniformity.

Higher efficiency, lower loss plate making with 256 channels of small laser beams, output speed doubled while drum speed only 20%-50% of the conventional.

The square screen dot with sharp edge feature makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.
