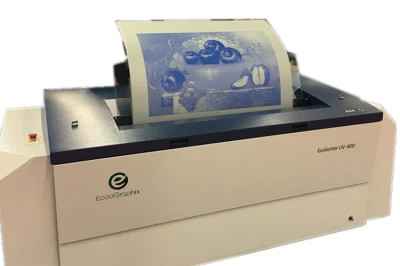

28pph Thermal CTP T-800 Series Platesetter Manual Offset Printing Machine
1. Application
EcooGraphix Thermal CTP (Computer-to-Plate) Plate Making Machine is an essential prepress solution for fast, short-run offset printing. It transfers digital images directly from the computer to the CTP plate, eliminating the need for film and reducing labor costs.
With EcooGraphix CTP, users benefit from excellent image output quality, stable and reliable performance, space-saving design, and flexible operation.
The EcooGraphix T-800 Series Thermal CTP is designed for A1 or B1 format newspaper and commercial printing, offering output speeds from 16 to 28 plates per hour. It features a simple manual operation, making it user-friendly and efficient.
2. Characteristic
Maximum Plate Size: 1,163 × 940 mm
Features: Reduced labor requirements, high operational stability, and excellent image output quality
Plate Compatibility: Supports both UV and thermal plates, offering flexibility and cost-saving options in production
3. Specification
|
EcooSetter T-800 Series Thermal CTP Specifications
|
|
Model
|
T-800F
|
T-800S
|
T-800E
|
|
Exposing Method
|
External Drum
|
|
Imaging System
|
64-channel
|
48-channel
|
32-channel
|
|
|
Discrete 830nm laser diode
|
|
Throughput
|
28 plates/hour
|
22 plates/hour
|
16 plates/hour
|
|
1,030mm × 800mm, 2400dpi
|
|
Plate Size
|
Max. 1,163 × 940mm, Min. 300 × 400mm
|
|
Media Type
|
Positive 830nm thermal CTP plate
|
|
Plate Thickness
|
0.15mm to 0.30mm
|
|
Resolution
|
2400dpi
|
|
Repeatability
|
±5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23℃ and humidity of 60%)
|
|
Interface
|
USB2.0/ USB3.0( USB2.0 is recommended )
|
|
Plate Loading
|
Manual
|
|
Net Weight
|
900 KG
|
|
Machine Size
|
2,320 × 1,080 × 960 mm( L×W×H )
|
|
Power Supply
|
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
|
|
Operation
Environment
|
Recommended: 21-25℃, Max. 15-30℃, Humidity: 40-70%
|
4. Major Highlights
EcooGraphix Thermal CTP systems are recognized globally for their superior dot reproduction, achieving 1%–99% dot range and supporting up to 250 lpi screening with resolutions of 2400 dpi or 1200 dpi. Compatible with all thermal process and processless plates, these machines offer excellent versatility and performance. Designed with robustness and simplicity in mind, they are easy to operate and reduce the chance of human error, making them ideal for high-efficiency print environments.
The machines are built with high-quality components sourced from leading suppliers in Japan, the USA, and Germany, ensuring long-term durability and reliability. The laser diodes have an extended lifetime of over 10,000 imaging hours, equivalent to approximately 200,000 plates. EcooGraphix offers an industry-leading 3-year warranty covering all parts, with extremely low replacement costs thereafter—for example, laser diodes are priced at just USD $250 per unit after the warranty period.
Customers benefit from comprehensive support, including professional installation and training by factory engineers, regular remote maintenance every two months, and proactive service follow-ups. Our global service team provides 24/7 technical assistance to ensure smooth operation. With over 6,000 units installed worldwide—including more than 50 machines in the U.S. and Canada over the past three years and 35 in Turkey through Esen Graphics—EcooGraphix continues to lead the market with trusted quality and proven performance.
Installations in other countries UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.
