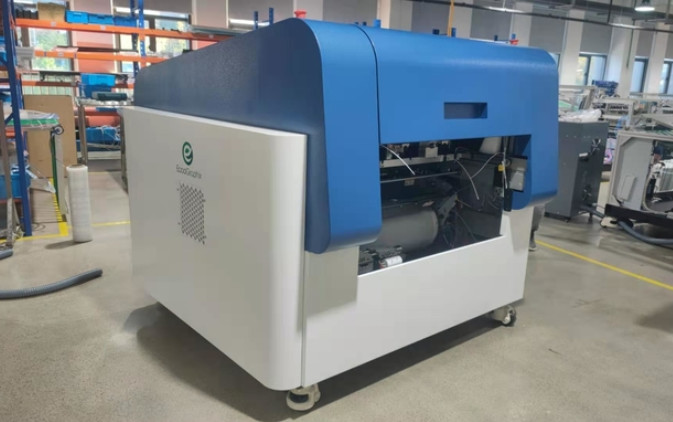

Production Description
| T-400 Q (E, S, F, V, X)Specifications |
| Exposing Method |
External Drum |
| Imaging System |
825nm laser |
| Model |
E |
S |
F |
V |
X |
|
Throughput
|
16pph |
22pph |
28pph |
35pph |
45pph |
| |
800mm x 660mm, 2400dpi, Plate sensitivity 120mj/cm² |
| Plate Sizes |
Max.800mmx 660mm
Min.400mm x 300mm |
| Plate Thickness |
0.15mm, 0.30mm |
| Resolution |
Standard: dual resolutions 2400dpi and 1200dpi |
| Repeatability |
0.01mm |
| Interface |
Optical Fiber(Fiberway) |
| Plate Loading |
Standard: Simplified Autoloader or multi-cassette Autoloader(four cassette) |
| Punch System |
Optional: internal punching(maximum four sets of plate holes) |
| Net Weight |
CTP: 900kg, Simplified Autoloader: 150KG, Multi-cassette Autoloader: 570KG |
| Power Supply |
CTP(single phase:220V, Max power(Peak Value): 4KW)
Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W))
Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W))
|
Operation
Environment |
recommended:21-25℃, allowable temperature: 15-30℃,relative humidity:40-70% |
Our Advantages
At present, there are thermal CTP and photopolymer CTP Thermal CTP accounts for 95% of the market share.Ecoo T256 CTP is thermal CTP.
EOUIPPED WITH ECOO 256-CHANNEL SPATIAL LIGHT MODULATOR
Output speed doubled
Fineness and precision 10 times improved
Color saturation over 21%increased
TRIANGULAR-DISPLACEMENTDYNAMIC AUTOFOCUS SYSTEM
Ecoo T256 CTP uses the third-generationdynamic autofocus technology. lts accurateranging system can directly detect smalldistance changes of 0.1 micron, and achievethe focus to be accurate at any time driven byvoice coil motor. In the process of exposure,this system can real-time measure the distancebetween the plate and the lens and adjust thelens position to ensure the constant distancebetween the plate and the lens, so as toachieve the exposure accuracy of the wholeplate.
LASER DETECTS PLATE EDGE TECHNOLOGY
Use the ultrafine 650nm infrared to find the edge ofthe plate without any effect on the plate, whichperfectly matches the traditional plate edge aligningand punching method; better than the method ofpunching by cross line registration(the cross linecannot be seen on processing-free plate beforeprinting)
LINEAR MOTOR
The linear motor eliminates all kinds ofpositioning deviations caused byintermediatelinks, so the positioning precision is high. inaddition, contactless transmission can beachieved. Except for the guide rail, almost nomechanical friction exists, more stability, lessfailure and longer service life.
DIRECT DRIVE MOTOR
Extremely high positioning precision, fastacceleration; The direct drive motor significantlyreduces the time of load & unload and greatlyimproves the efficiency, comparing to theconventional belt driving drum method.
TECHNICAL ADVANTAGES OF 256-CHANNELSPATIAL LIGHT MODULATOR
Differing from the current optical fiber carriage, the256-channel laser carriage adopts spatial light modulator to divide a laserbeam into 256 channels ofsmall laser beams and achieves sharp-edgedsquare dotimaging on plate. In comparison to conventional optical fibertechnology, the average energy of each channel is easier to be controlledand the dot quality is more consistent, guaranteeing the printing quality.
In terms of precision, this technology, with the fine dot feature, breaksthrough the high-precision requirements and reaches up to 12800 dpiresolution. Even applying in the special printing with high resolutionrequirement, the result is excellent.
The single light source laser used, the flexibility for selecting the light sourceenergy and stable power control provide more selections of output speed,meeting the requirement of different customers.
FAQ
1. How long is the lead time?
The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.
2. How long is the warranty period?
Ecoographix gurantees 3 years of warranty for laser head and spare parts. If the machine user use our plate at the same time, we offer lifetime warranty.
3. Is there any certification for your CTP machine?
Yes, All our CTP machines have been certified by SGS and CE. Vary stable and muture. We have hundreds of installation iover the world since 2012.
4. Do you have accompanying plate products to make an easy purchase for some end users?
Yes, we have qualified CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors are also in our business range.
5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping.
6. What are your main products ?
Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.
7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. But we will not reveal vor the purpose of information privacy.
8. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
9. What about the Installation and after-sales technician support?
Our engineer are all Ecan go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
10.Where is your factory?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory at any time!
