16-28PPH Automatic Online Platesetter Thermal CTP Machine
Application
EcooGraphix Thermal CTP (Computer To Plate) Plate Making Machine is an essential prepress solution for quick short-run offset printing. This machine directly transfers computer images to printing CTP plates, eliminating the need for film and reducing labor costs.
With the EcooGraphix CTP, customers benefit from excellent output image quality, highly reliable stability, and a compact design that offers greater flexibility.
The EcooGraphix T800 series Thermal CTP is designed for A1 or B1 paper-size newspaper or commercial printing, with an output speed ranging from 16PPH to 28PPH. The machine operates manually, making it very user-friendly and easy to use.
Specification
ECOO T-800 Series Automatic CTP Specifications(online system)
Model
T-800FA, T-800SA, T-800EA
Exposing Method

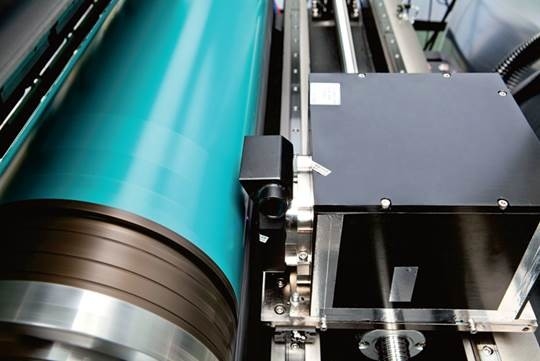

External Drum
Imaging System
64-channel, 48-channel, 32-channel, Discrete 830nm laser diode
Throughput
28PPH, 22PPH, 16PPH, 1030mm x 800mm, 2400dpi
Plate Sizes
Max. 1163mm x 940mm, Min. 300mm x 400mm (300mm x 250mm is available)
Exposing Size
Max. 1130mm x 884mm
Media Type
Positive thermal CTP plate
Plate Thickness
0.15mm to 0.30mm
Resolution
2400dpi (Option: 1200dpi)
Repeatability
±5μm(Continuous exposing for 4 times or above on the same plate
with a temperature of 23ºC and humidity of 60%)
Interface
USB 2.0
Plate Loading
Semi-automatic
Net Weight
1200kg
Machine Size (WxLxH)mm
2127 x 1610 x 1058
Power Supply
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
| ECOO T-800 Series Automatic CTP Specifications(online system) |
| Model |
T-800FA |
T-800SA |
T-800EA |
| Exposing Method |
External Drum |
Imaging System |
64-channel |
48-channel |
32-channel |
| Discrete 830nm laser diode |
Throughput |
28PPH |
22PPH |
16PPH |
| 1030mm x 800mm, 2400dpi |
| Plate Sizes |
Max. 1163mm x 940mm
Min. 300mm x 400mm (300mm x 250mm is available) |
| Exposing Size |
Max. 1130mm x 884mm |
| Media Type |
Positive thermal CTP plate |
| Plate Thickness |
0.15mm to 0.30mm |
| Resolution |
2400dpi (Option: 1200dpi) |
| Repeatability |
±5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23ºC and humidity of 60%)
|
| Interface |
USB 2.0 |
| Plate Loading |
Semi automatic |
| Net Weight |
1200kg |
| Machine Size (WxLxH)mm |
2127 x 1610 x 1058 |
| Power Supply |
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW |
| Environment |
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70% |
Producing And Packaging
From production to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Certifications
FAQ
1) What are your main products?
Our main products include:
- Prepress CTP Systems: 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, and Processors.
- Post Press Packing Equipment: Laminating Machines, Foil Stamping and Die Cutting Machines, Paper Box Window Patching Machines, Book Binding Machines, and more.
- Printing Consumables: Offset Printing Plates, Inks, Printing Blankets, and Plate Dot Densimeters.
Our partners in the USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa, and other countries are very pleased with our technical support services and product performance. You can obtain both pre-press and post-press equipment and consumables from us, ensuring seamless after-sales service.
2) Where is your factory located?
Our CTP machine factory is located in Hangzhou city, about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!
3) What is your warranty for the CTPs?
We offer a three-year warranty on the laser head and main spare parts for the CTPs, and a one-year warranty for the Processor.
4) What is the lead time?
The lead time is usually 20-30 days. We will do our best to meet your demands.
5) Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9. The machine price does not include software.
6) What about installation and after-sales technician support?
Our engineers can assist with installation and provide the necessary training. The buyer should cover the round-trip airfare, service charges, and local accommodation costs. We are available 24/7 to address any problems or questions.
Among our numerous CTP installations worldwide, many end-users (printers) have purchased CTP products directly from EcooGraphix China. Our technical service team supports these installations remotely with regular onsite visits. These end-users operate the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance.
If you are a printer considering purchasing directly from EcooGraphix China, rest assured that there will be no hassle regarding installations, training, and after-sales service. We guarantee your satisfaction.
