Name: 16 Plates/Hour Large Format Automatic 64CH Thermal CTP Printing Machine
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSetter VLF T-1600S
Price: 150000.00 USD
Availability: InStock

16 Plates/Hour Large Format Automatic 64CH Thermal CTP Printing Machine

1 SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Type: CTP Machine

Resolution: 2400dpi

Plate Sizes: Max. 1470mm X 1180mm; Min. 300mm X 400mm

Imaging System: 64CH

Output Speed: 16 Plates/Hour

Media Type: Thermal CTP Plate

Net Weight: 1400kg

Plate Loading: Semi Automatic

Highlight:

Large Format Thermal CTP Printing Machine

64CH Thermal CTP Printing Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: EcooSetter VLF T-1600S

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 25 Days

Payment Terms: L/C, T/T

Supply Ability: 5000 Sets/Year

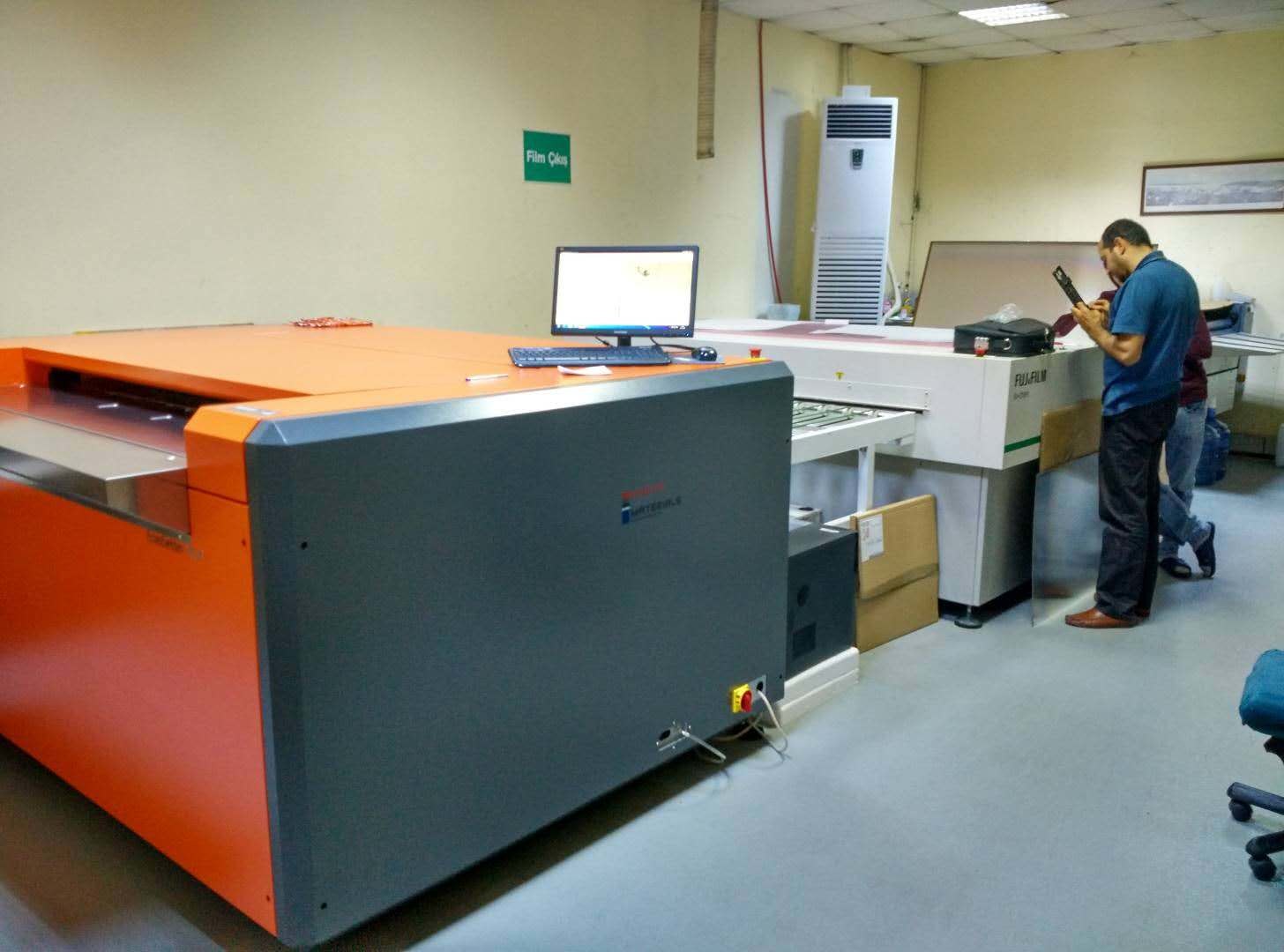

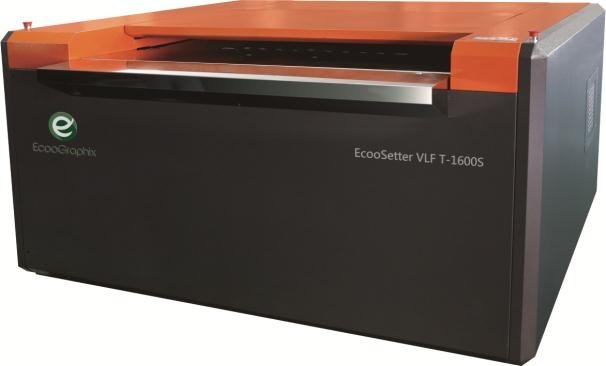

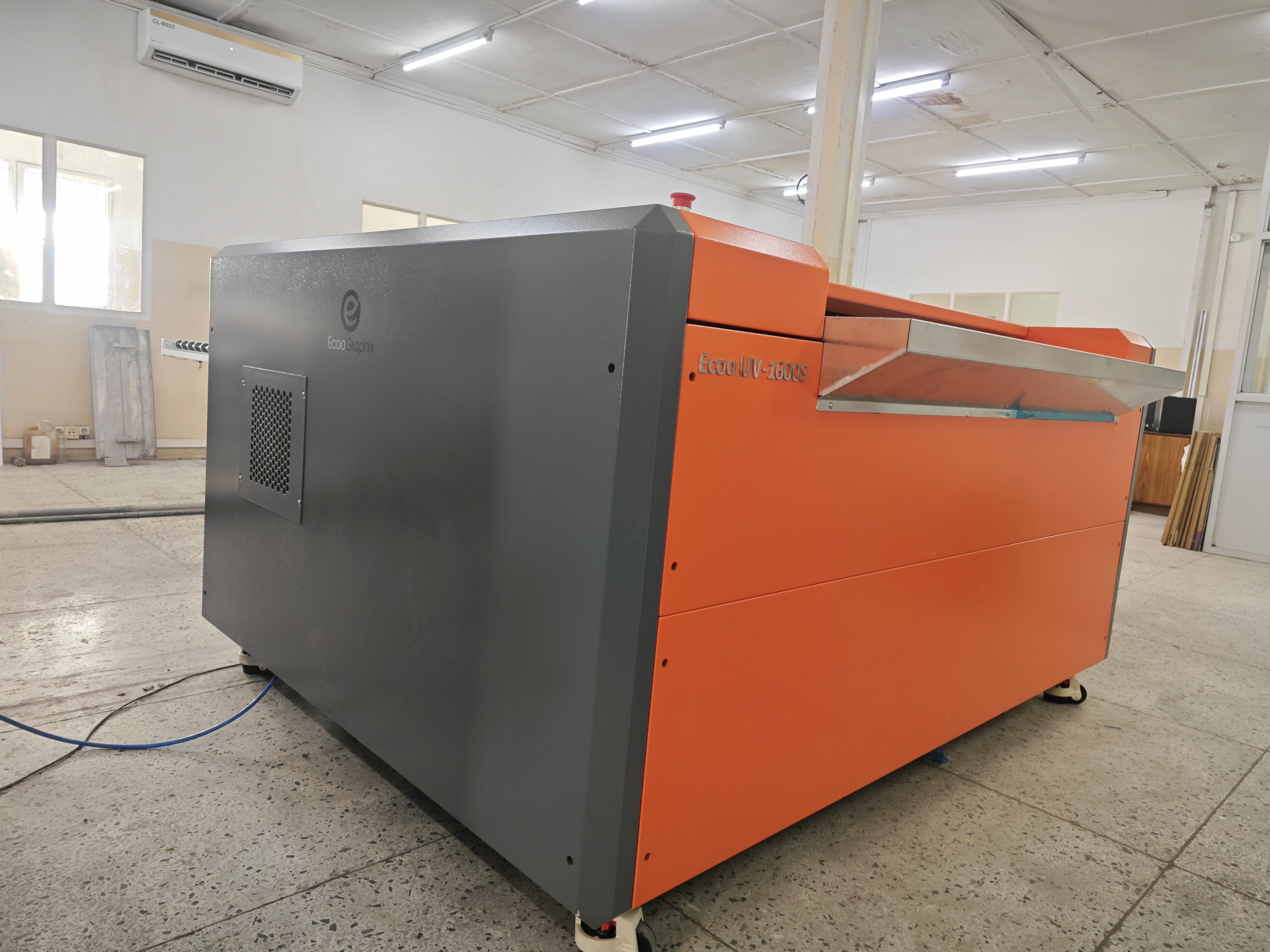

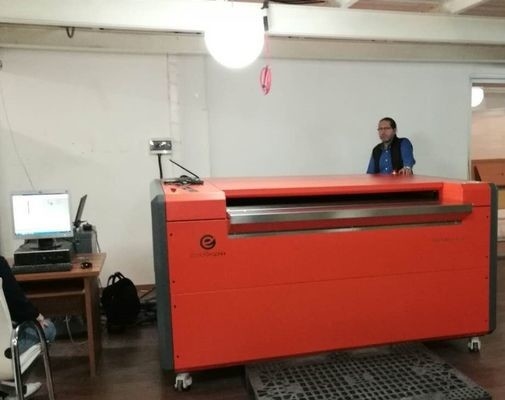

Gallery

16 Plates/Hour Large Format Automatic 64CH Thermal CTP Printing Machine

Product Description

EcooGraphix Very Large Size Format Thermal CTP Machine T-1600S

EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to print the CTP plate directly through the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

Specification

ECOO VLF (Very Large Format) T-1600S CTP Specifications
Model	T-1600S
Exposing Method	External Drum
Imaging System	64-channel
Imaging System	Discrete 830nm laser diode
Output Speed	16plates/hour
Output Speed	1470mm x 1180mm/ 2400dpi
Plate Sizes	Max. 1470mm x 1180mm; Min. 300mm x 400mm
Exposing Size	Max. 1470mm x 1164mm
Media Type	Thermal CTP plate
Plate Thickness	0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative)
Resolution	2400dpi
Repeatability	±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0 or USB3.0(USB2.0 is recommended)
Plate Loading	Semi-automatic
Net Weight	1400kg
Machine Size (WxLxH)mm	2355 x 1910 x 1217
Power Supply	Single phase: 220V-240V, Power Consumption(peak value): 5.5KW
Environment	Recommended: 21-25ºC; Max. 15-30ºC, Humidity: 40%-70%RH
