2400dpi Precision Thermal CTP Plate Making Machine 2400dpi Resolution

16-28PPH Automatic Online Platesetter Thermal CTP Machine

Application

EcooGraphix Thermal CTP (Computer To Plate) Plate Making Machine is an essential prepress solution for quick short-run offset printing. This machine directly transfers computer images to printing CTP plates, eliminating the need for film and reducing labor costs.

With the EcooGraphix CTP, customers benefit from excellent output image quality, highly reliable stability, and a compact design that offers greater flexibility.

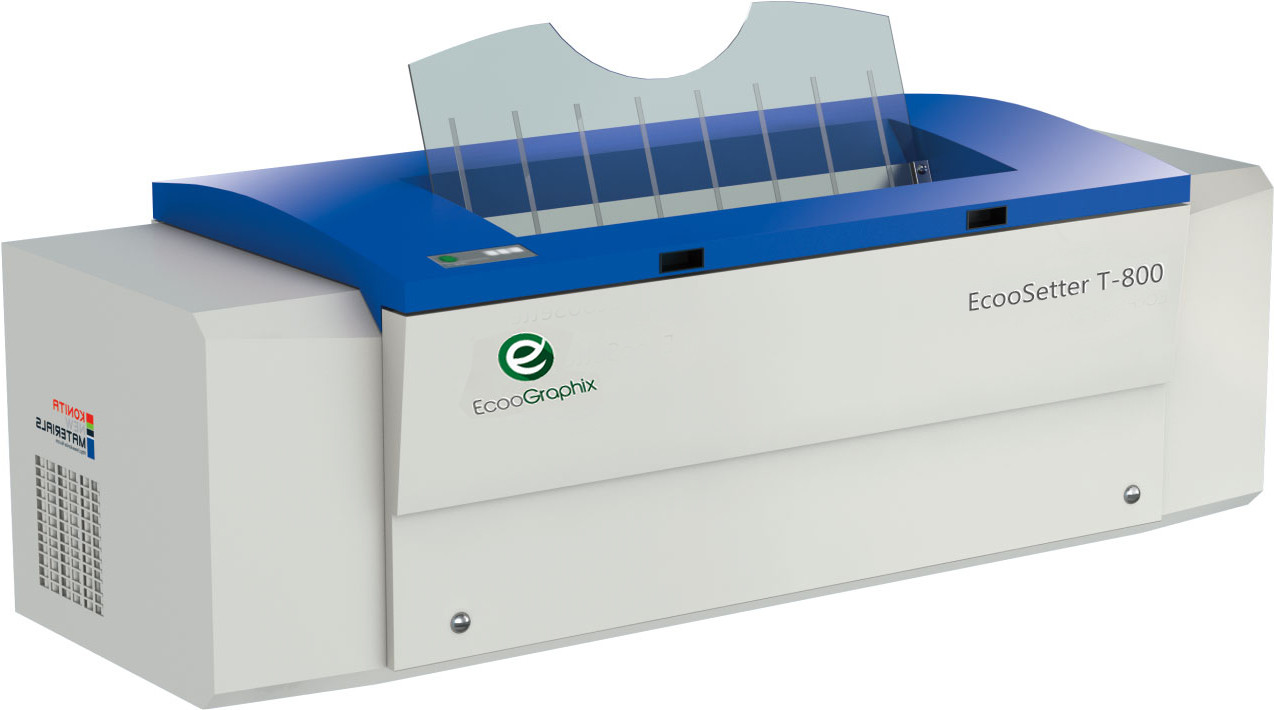

The EcooGraphix T800 series Thermal CTP is designed for A1 or B1 paper-size newspaper or commercial printing, with an output speed ranging from 16PPH to 28PPH. The machine operates manually, making it very user-friendly and easy to use.

Specification

ECOO T-800 Series Automatic CTP Specifications(online system)

Model

T-800FA, T-800SA, T-800EA

Exposing Method

External Drum

Imaging System

64-channel, 48-channel, 32-channel, Discrete 830nm laser diode

Throughput

28PPH, 22PPH, 16PPH, 1030mm x 800mm, 2400dpi

Plate Sizes

Max. 1163mm x 940mm, Min. 300mm x 400mm (300mm x 250mm is available)

Exposing Size

Max. 1130mm x 884mm

Media Type

Positive thermal CTP plate

Plate Thickness

0.15mm to 0.30mm

Resolution

2400dpi (Option: 1200dpi)

Repeatability

±5μm(Continuous exposing for 4 times or above on the same plate

with a temperature of 23ºC and humidity of 60%)

Interface

USB 2.0

Plate Loading

Semi-automatic

Net Weight

1200kg

Machine Size (WxLxH)mm

2127 x 1610 x 1058

Power Supply

Single phase: 220AC, +6%, -10%, Power Consumption: 4KW

Environment

Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%

​
