Name: 2400dpi Thermal CTP Plate Macking Machine For Offset Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSetter T-400 F/S/E
Price: 150000.00 USD
Availability: InStock

2400dpi Thermal CTP Plate Macking Machine For Offset Printing

1 SET

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Classification: CTP Plate Machine

Imaging System: 48-Channel; 32-Channel; 24-Channel

Throughput(Plates/Hour): 28; 22; 16, 800mm X 690mm, 2400dpi

Resolution: 2400dpi

Plate Sizes: Max. 800mm X 660mm, Min. 400mm X 300mm

Media Type: Positive 830nm Thermal CTP Plate

Plate Thickness: 0.15mm To 0.30mm

Power Supply: Single Phase: 220AC, +6%, -10%, Power Consumption: 4KW

Highlight:

800mm X 660mm Thermal CTP Plate Macking Machine

2400dpi Thermal CTP Plate Macking Machine

Offset Printing CTP Plate Macking Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: EcooSetter T-400 F/S/E

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 25 Days

Payment Terms: L/C, T/T

Supply Ability: 10,000 Sets/Year

Gallery

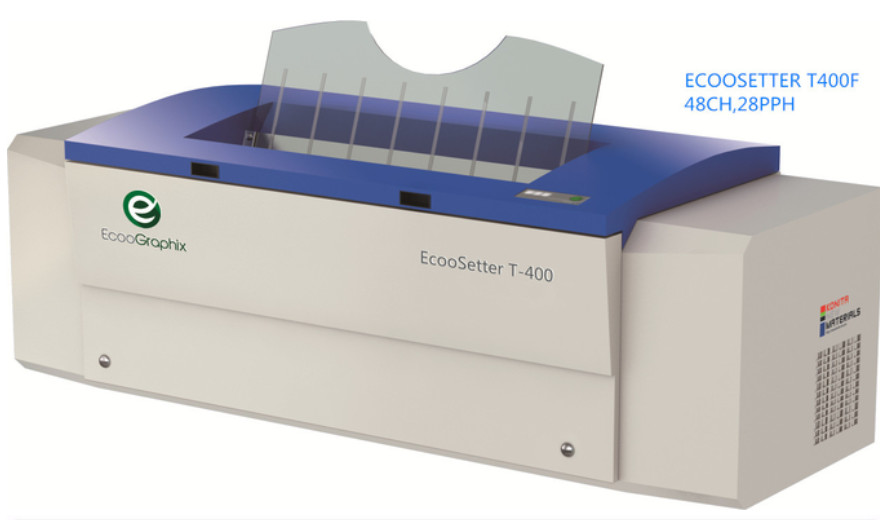

2400dpi Thermal CTP Plate Macking Machine For Offset Printing

Product Description

EcooGraphixThermalPlate Making Machine CTP Machine

1. Application

The EcooGraphix Conventional CTP (UV-CTP/CTCP) Plate Making Machine is a smart prepress solution designed for quick, short-run offset printing. It directly transfers digital images to plates, eliminating the need for film and reducing labor costs while improving production efficiency.

With precise imaging and stable performance, the EcooGraphix CTP ensures high-quality output every time—an ideal choice for printers seeking to streamline operations and stay competitive.

2. Specifications

ECOO T-400 Series Thermal CTP Specifications
Model	T-400F	T-400S	T-400E
Exposing Method	External Drum
Imaging System	48-channel	32-channel	24-channel
	Discrete 830nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour
	800mm x 690mm, 2400dpi
Plate Sizes	Max. 800mm x 660mm Min. 400mm x 300mm
Exposing Size	Max. 800mm x 646mm Min. 260mm x 284mm
Media Type	Positive 830nm thermal CTP plate
Plate Thickness	0.15mm to 0.30mm
Resolution	2400dpi
Repeatability	±5μm (Continuous exposure for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0
Plate Loading	Semi-automatic
Net Weight	800kg
Machine Size (WxLxH)mm	1900 x 1200 x 1000
Power Supply	Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment	Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%
