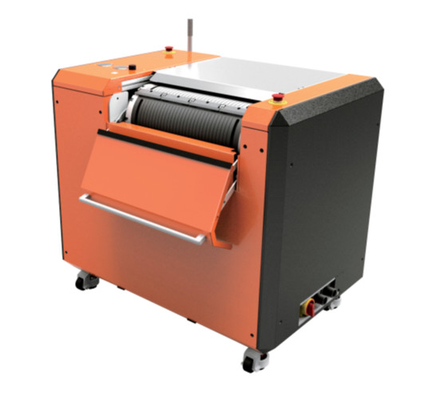

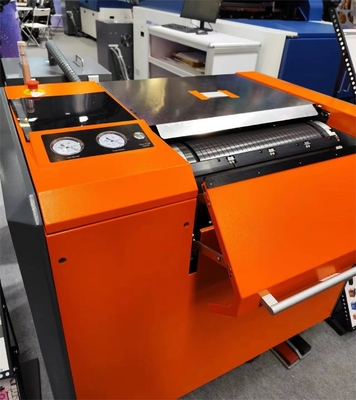

FL-800 Flexo Plate Making Machine For Label Printing
Flexo CTP Machine Digital Flexo Plate Making Machine
Model: EcooSetter FL-800
Specification
| Model |
FL-800E |
FL-800S |
| Laser Channel |
16-channel |
32-channel |
| Output Speed |
1.25m²/h |
2.5m²/h |
| Max. Breadth |
790mm x 690mm |
790mm x 690mm |
| Plate Thickness |
0.14mm - 2.84mm |
| Laser Power |
High power semiconductor laser diode |
| Plate Type |
Digital relief flexo plate(water-wash), Digital flexo plate (water-wash), Digital flexo plate (solvent-wash) Steel based digital plates (Water/alcohol washable) |
| Application |
Label and trademark |
| Resolutions |
4000dpi |
| Plate Loading |
Manual load and unload |
| Interface |
USB2.0 |
| Focus adjust |
Dynamic auto-focus |
| Device Size |
1610x910x980mm(WxDxH) |
1610x910x980mm(WxDxH) |
| Net Weight |
800Kg |
800Kg |
| Power |
220V/50Hz, 60Hz, mainframe 1.5KW+Vacuum 2.0KW |
| Environment |
Recommended temperature: 15-30℃ Humidity: 40%-70% |
Features
1. Drum Auto Balance
The Drum Auto Balance system maintains printing drum stability during high-speed operations by automatically adjusting a balance block within the drum assembly.
How it works:
In label printing, the drum applies toner or ink onto the substrate. The system ensures any imbalance in rotation is corrected within 5 seconds by adjusting the balance block position.
Benefits:
- Stability at High Speeds: Maintains smooth operation during rapid printing tasks
- Reduced Downtime: Minimizes wear and tear, maximizing production efficiency
- Better Print Quality: Ensures even application of toner for high-quality, uniform prints
2. Auto Switch of Laser Channel
This fail-safe system detects malfunctioning laser channels and automatically switches to available functional channels.
How it works:
If a laser channel fails, the system reroutes the process to the next working channel, allowing continuous production without interruption.
Benefits:
- Non-stop Production: Continues working despite laser channel malfunctions
- Minimized Downtime: Allows scheduled maintenance without affecting operations
- Increased Reliability: Provides redundancy for continuous output
3. Linear Motor
Replaces traditional rotary motors with linear motors for high-precision printing tasks.
How it works:
Uses electromagnetic force to produce straight-line motion, providing precise control over printer component movement.
Benefits:
- Increased Precision: Enables highly accurate movement for sharp images
- Simpler Design: Fewer moving parts reduce mechanical complexity
- Higher Reliability: Longer operational lifespan with less wear
- Faster Response: Quick adjustments ideal for fast-paced production
4. Dynamic Autofocus
Maintains precise laser focus throughout the printing process as conditions change.
How it works:
Continually adjusts focus based on printing head position and substrate, ensuring perfect focus at all times.
Benefits:
- Consistent Print Quality: Maintains sharp prints during high-speed runs
- Adaptability: Compensates for material shifts during printing
- Reduced Manual Calibration: Saves time and increases efficiency
FAQ
1. Q: What are your main products?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Q: Where is your factory?
A: Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!
3. Q: What is your warranty for the CTPs?
A: One years' Laser Head and main spare parts for the CTP.
4. Q: What is the Lead Time?
A: Usually 30 days, and we will try our best to meet your demands.
5. Q: Can you also supply the Workflow and RIP?
A: Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
