16/22/28pph 4up Ctcp UV CTP Machine for Newspaper Printing

1SET
MOQ
Negotiable
Price
16/22/28pph 4up Ctcp UV CTP Machine for Newspaper Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 4up Ctcp UV CTP Machine
Throughput: 16/22/28pph
Plate Sizes: Max.800mm X 660mm; Min. 260mm X 300mm
Media Type: Positive UV-CTP/CTCP Plate Or High Sensitive PS Plate
Plate Thickness: 0.14mm To 0.30mm
Machine Size (WxLxH)mm: 1900x1200x1000
Highlight:

4up CTP Machine

,

16/22/28pph CTP Machine

,

Newspaper Printing CTP Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter UV-400
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 5000 SETS/YEAR
Product Description

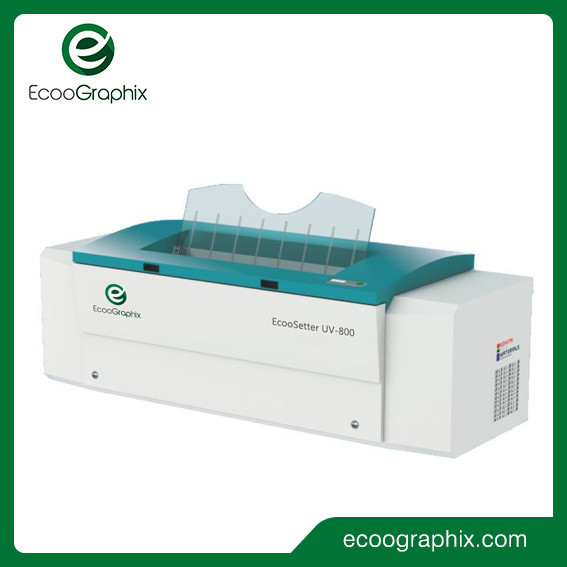

4up Ctcp UV CTP Machine



EcooGraphix UV 800 series are for A1 or B1 paper size newspaper or commercial printing with the output speed of 16PPH to 28PPH.

The CTP is operated manually, very easy to use.

Customers can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.



Specification



EcooGraphix UV400 Series
Model UV-400F UV-400S UV-400E
Imaging System 48 32 24
Output Speed 28 22 16
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900*1200*1000mm(W*D*H)
Power Supply single-phase: 260AC, +6%-10%; Power Consumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH
