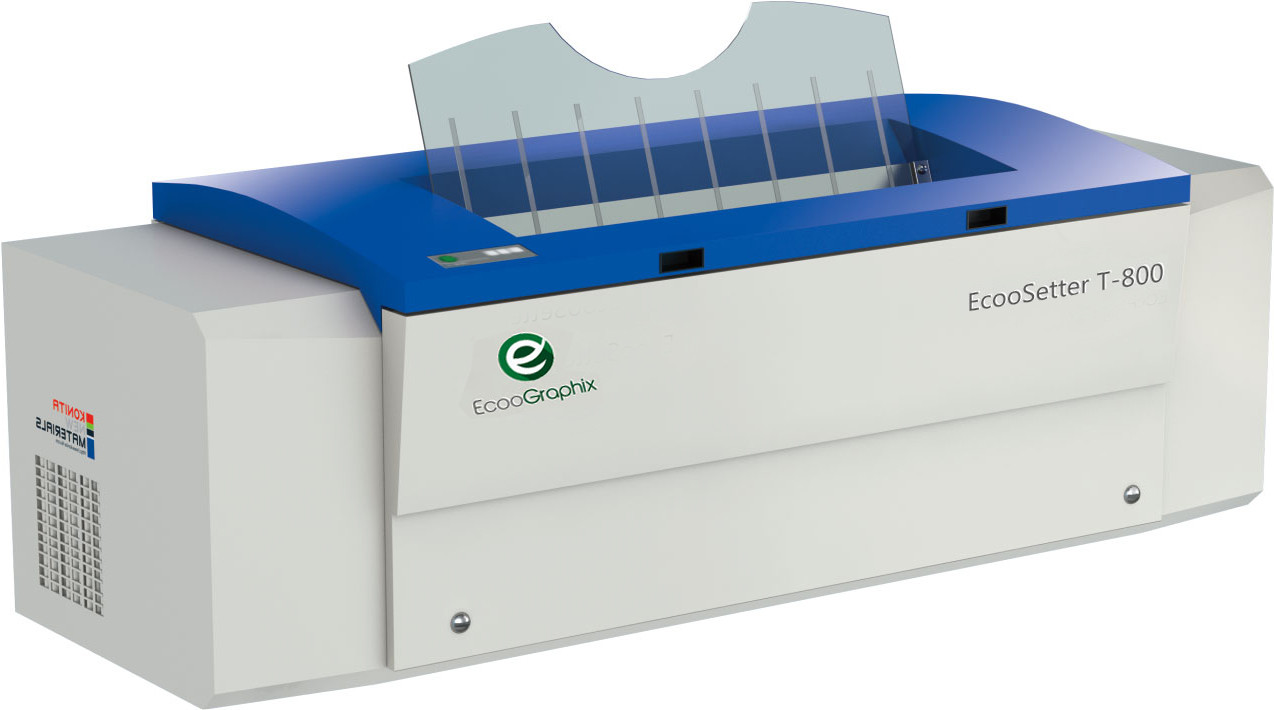

Thermal CTP T-800 Series Platesetter Manual Offset Printing Machine
EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to print the CTP plate directly through the CTP machine and save the film and labor.
By the EcooGraphix CTP, the customer can get Excellent output image quality, highly reliable stability, less space occupied with more flexibility.
EcooGraphix T-800series thermal CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed of 16PPH to 28PPH. The CTP is operated manually, very easy to use.
Characteristic
Maximum size of plate: 1,163×940mm
Features: Less manpower, high stability, and perfect output quality
UV plate and thermal plate are available for you to lower production costs.
Specification
EcooSetter T-800 Series Thermal CTP Specifications |
Model | T-800F | T-800S | T-800E |
Exposing Method | External Drum |
Imaging System | 64-channel | 48-channel | 32-channel |
| Discrete 830nm laser diode |
Throughput | 28 plates/hour | 22 plates/hour | 16 plates/hour |
1,030mm × 800mm, 2400dpi |
Plate Size | Max. 1,163 × 940mm, Min. 300 × 400mm |
Media Type | Positive 830nm thermal CTP plate |
Plate Thickness | 0.15mm to 0.30mm |
Resolution | 2400dpi |
Repeatability | ±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60%) |
Interface | USB2.0/ USB3.0( USB2.0 is recommended ) |
Plate Loading | Manual |
Net Weight | 900 KG |
Machine Size | 2,320 × 1,080 × 960 mm( L×W×H ) |
Power Supply | Single phase: 220AC, +6%, -10%, Power Consumption: 4KW |
Operation
Environment | Recommended: 21-25℃, Max. 15-30℃, Humidity: 40-70% |
Major Highlights
1) Superior dot quality reproduction proved by the worldwide market:
1%-99% dot reproduction
Up to 250lpi screening, 2400 dpi or 1200dpi optional
2) Fully qualified: for any thermal non-process plate and process plates.
3) Robustness and simplicity: robust machine and easy to use. User-friendly and simple design to avoid human error.
4) Worldwide top-class components and parts supplied by internationally well-known suppliers from Japan, the USA and Germany
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
6) Long warranty of the machine:
3 years warranty (free replacement of all parts)
Low Cost of Parts: after a 3-year warranty, very low cost of parts. for example, a laser diode at US$250 per piece.
7) Guaranteed Service: installation and training conducted by a technical engineer from the factory, ensuring the best setup and training to be achieved.
Regular remote maintenance is to be conducted every 2 months. Proactively revisited by engineers to be conducted. 7x24 hours service response.
8) Proven Worldwide market leader:
Over 6000 units installed worldwide over the past 10 years
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.
