Home /Products/CTP Plate Machine/2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader

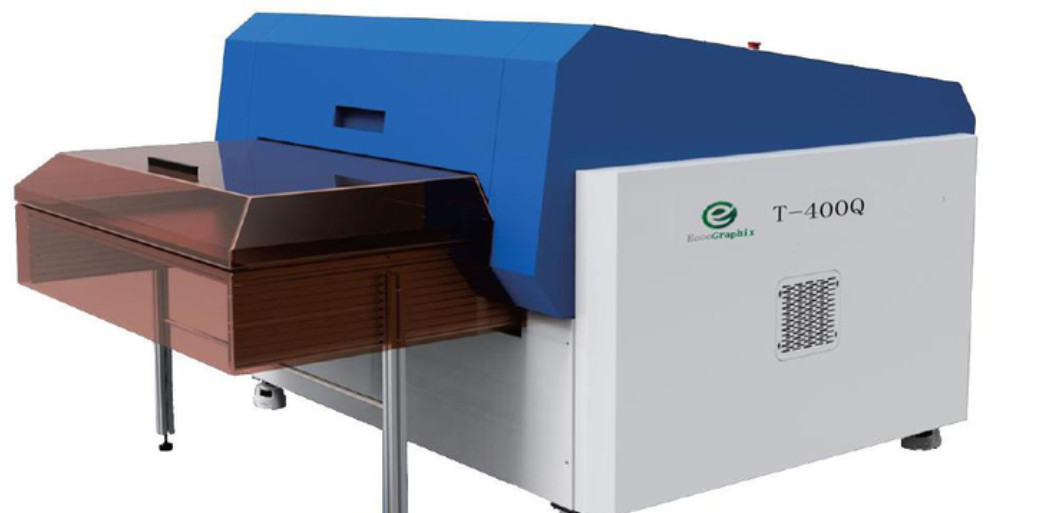

2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader

1 SET
MOQ
Negotiable
Price
2400 Dpi Thermal CTP Machine With Inline Punching And Autoloader
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Speed(plates/hour): 45/55
Plate Sensitivity: 800 X 660mm, 2400dpi
Plate Size: Max. 800mm X 660mm, Min. 300mm X 300mm
Resolution: Standard: 2400 Dpi Or 1200 Dpi
Plate Loading: Standard: Single Cassette Autoloader With Manual Plate Insert Function
Machine Size (W X Lx H)mm: 1450x1950x1290 (additional 600mm Length For Conveyor To Wash Unit)
Configuration: Online CTP Plate Making System With Punching And Autoloader
Plate Type: 830nm Thermal CTP Plate
Highlight:

2400dpi Thermal CTP Machine

,

Inline Punching Thermal CTP Machine

,

Autoloader Thermal CTP Machine
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO T-400Q V/X
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 20 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

Thermal Full-Automatic Online CTP Plate-Making Machine



With square screen imaging technology adopted, reach saturation increased by 21% and fineness and precision ten times higher than the original; With linear motor high-precision positioning equipped, achieve longer service life and lower operation and maintenance costs for customers.



Technical Advantages



Break through the traditional optical fiber technology limitation, and divide a laser beam into 256 channels of small laser beams that can be separately controlled, doubling the output speed; the square screen dot printed on the plate, with sharp edge feature and a rectangular-step-shaped distribution of energy, makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.



Specifications



T-400 QS Specifications
Model T-400QS
Exposing Method External Drum
Imaging System 825nm laser



Throughput

　

 25plates/hour
800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm²
Plate Sizes Max. 800mm x 660mm
Min. 300mm x 300mm
Plate Thickness 0.15mm, 0.30mm
Resolution Standard: 2400 dpi or 1200 dpi
Repeatability 0.01mm
Interface Optical Fiber(Fiber-way)
Plate Loading Standard: single cassette autoloader with manual plate insert function
Inline Punching System Optional: Internal punching (maximum four sets of plate holes)
Machine Size
(W x Lx H)mm		 1450x1950x1290 (additional 600mm length for conveyor to wash unit)
Power Supply

CTP(single phase: 220V, Max power(Peak Value): 4KW)

Simplified Autoloader(single phase: 220V; Max power(Peak Value): 900W)

Multi-cassette Autoloader(single phase: 220V; Max power(Peak Value): 1100W)
Operation
Environment		 Recommended:21-25℃
Allowable Temperature: 15-30℃
Relative Humidity:40-70%
