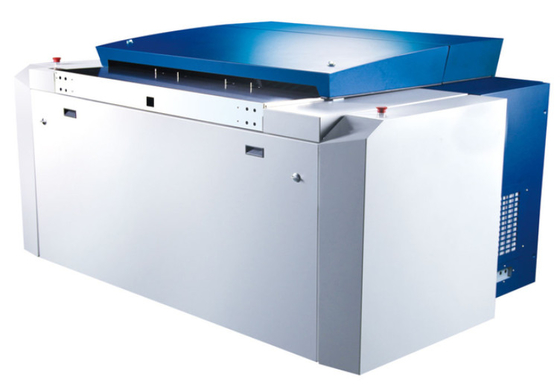

Name: 2400dpi EcooSetter Thermal CTP Plate Machine 64 Channel 2400dpi High-Speed Offset Printing Nbsp
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSetter T-800A F/S/E
Price: 150000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Imaging System: 64-channel; 48-channel; 32-channel

Throughput: 1,030×800mm, 2400dpi: 28 Plates/hour; 22 Plates/hour; 16 Plates/hour

Repeatability: ±5µm (Continuous Exposing For Four Times Or Above On The Same Plate With A Temperature Of 23℃ And Humidity Of 60%)

Power Supply: Single-phase: 220AC, +6%, -10%, Power Consumption: 4KW

Plate Size: Max. 1,163×940mm, Min. 300×400mm

Environment: Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%

Resolutions: 2400dpi( Option: 1200dpi )

Weight: 1,200KG

Highlight:

High-Speed Thermal CTP Plate Machine

64-Channel Thermal CTP Plate Machine

2400dpi Thermal CTP Plate Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: EcooSetter T-800A F/S/E

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 20 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

2400dpi EcooSetter Thermal CTP Plate Machine 64 Channel 2400dpi High-Speed Offset Printing Nbsp

Product Description

64-Channel EcooSetter Thermal Automatic CTP Offset Printing Machine

Introducing our flagship model, the EcooSetter T800AX, boasting the latest advancements in technology for significant improvements in speed and quality.

Outstanding Features:

- Brand-new imaging technology: Square-spot, utilizing a similar light-valve system as Kodak machines, enables high-quality imaging suitable for 20-10 micro FM screening.

- Significant speed improvements: Choose from three new speed options: 30, 40, or 50 plates per hour.

Specifications

EcooSetter UV&T Series Automatic CTP Specifications(Online System)
Model	UV-800XA	UV-800FA	UV-800SA	UV-800EA	T-800XA	T-800FA	T-800SA	T-800EA
Exposing Method	External Drum
Imaging System	128-channel	64-channel	48-channel	32-channel	256-channel	64-channel	48-channel	32-channel
	Discrete 400-410nm laser diode				Discrete 830nm laser diode
Throughput	45 PPH	28 PPH	22 PPH	16 PPH	55 PPH	28 PPH	22 PPH	16 PPH
	1030mm × 800mm, 2400dpi
Plate Size	Max. 1163mm × 940mm, Min. 300mm × 400mm

Media Type	Positive UV-CTP Plate, High-sensitive PS Plate				Positive Thermal CTP Plate
Plate Thickness	0.15mm - 0.30mm
Resolutions	2400dpi, 1200dpi (Option)
Repeatability	±5µm ( Continuous exposure for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60% )
Interface	USB 2.0
Plate Loading	Automatic
Net Weight	1200 KG
Device Size (L x W x H)	2127 × 1610 × 1058 mm
Power Supply	Single-phase: 220AC, +6%, -10%, Power Consumption: 4KW
Environment	Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%
