Automatic Die Cutting machines are commonly used for general packaging, such as label hot stamping,card hot stamping, food packaging hot stamping, etc.

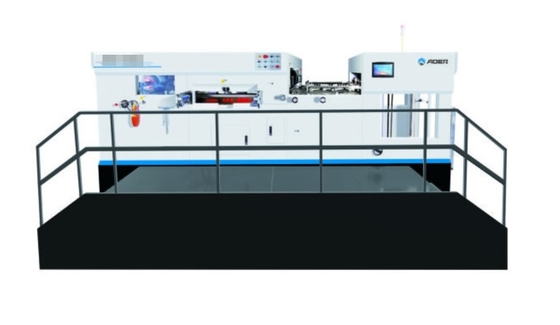

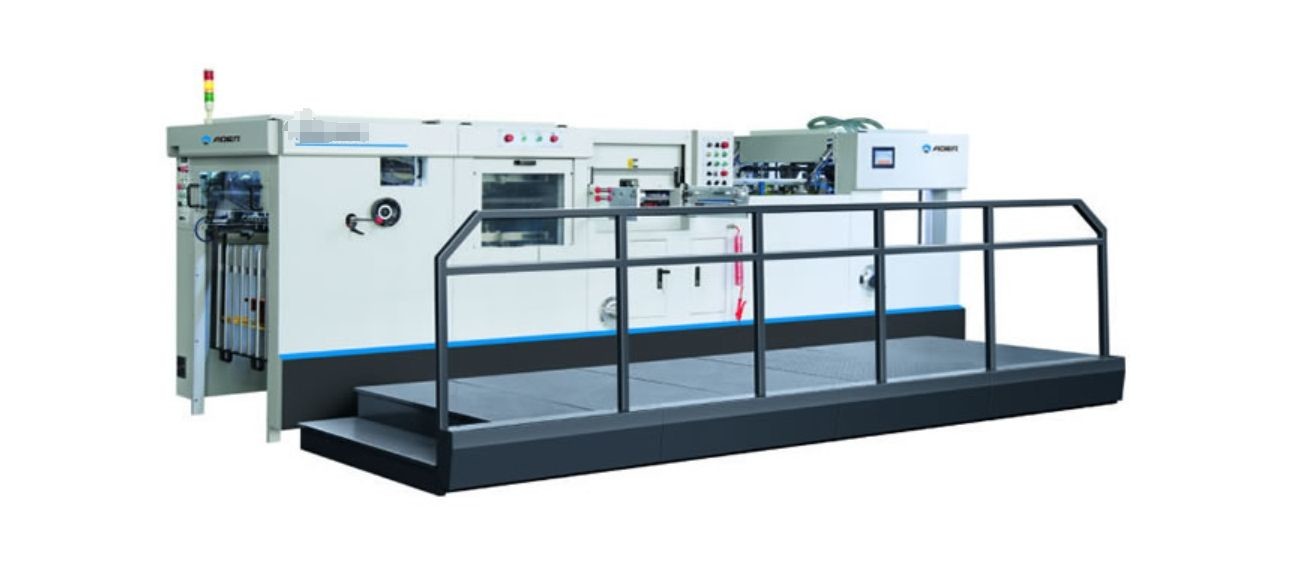

The automatic Die Cutting and Stripping machine 1080BQ is one of the best-selling products, especially in Europe.
Such as the UK, Hungary, Romania, Croatia, Portugal, Bulgaria, and the Czech Republic.
1080BQ automatic DIE CUTTING machine is a very stable machine, and its first version was designed 20 years ago. So far we have sold more than 300 automatic stamping machines worldwide.
It is used for automatic stamping roll material, after printing, lamination. Suitable for the production of paper boxes, paper cups, wrapping labels, cardboard embossing, portable paper bags, paper covers,PVC, various plastics, etc...
| Automatic Die Cutting Machine |
| Model |
Ecoo-1080BQ |
| Max. Sheet size(mm) |
1080 x 780 |
| Min. Sheet size(mm) |
400 x 330 |
| Max. Die cutting size(mm) |
1075 x 770 |
| Inside chase size(mm) |
1100 x 790 |
| Cutting plate size |
1080 x 780 |
| Min.gripper margin(mm) |
7 |
| Die cutting accuracy(mm) |
≤±0.1 |
| Max.pressure(T) |
300 |
| Max.machine speed(s/h) |
7000 |
| Feeding pile height(mm) |
1550 |
| Delivery pile height(mm) |
1400 |
| Stock range |
White board paper: 0.1～2 mm; corrugated paper: ＜4 mm |
| Power |
17.8kw |
| Dimension(mm) |
5880(+1650) x 2100(+1600) x 2350 |
| Weight(T) |
17.6 |
Features
1. Perfect design, fine assembly, good stability, strong safety and low noise.
2. Worm gear, worm, crankshaft transmission technology, high die-cutting pressure and long service life.
3. High-precision clearance mechanism, high die-cutting accuracy and stable operation.
4. Adopting European technology feeder head, the suction paper is adjustable, stable and accurate, and the paper has strong applicability.
5. Non-stop paper feeding, pre-coded paper stacks and paper payment and collection mechanisms can shorten auxiliary time and improve work efficiency.
6. Die-cutting plate frame and bottom plate mechanism, humanized design, quick and convenient plate loading and adjustment.
7. (Optional) Three-frame linkage mechanism with waste removal function, humanized design, installation of waste removal plate and adjustment removal plate fast and convenient.
8. Pneumatic plate locking device makes the plate frame more firm, accurate and time-saving.
9. The front gauge, side gauge, and paper feeder fine-tuning device make paper positioning more accurate.
10. The photoelectric level control of double sheets, crooked sheets, and empty sheets ensures the accuracy and stability of the paper and reduces waste.
11. The electrical control modular design adopts imported electrical components to ensure accurate control and good reliability.
12. Touch screen man-machine interface, real-time dynamic monitoring and display of running status, convenient and quick machine adjustment and troubleshooting.
13. The circulating cooling oil supply system ensures that the moving parts of the machine have good lubrication and are durable.
14. The timing and quantitative automatic oil supply system ensures that other moving parts of the machine are fully lubricated and have a long service life.
Producing And Packing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
More Details
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
Normally 1 year.
4. What is the Lead Time?
Usually 10-25 days, and we will try our best to meet your demands.
5. Can you also supply the software?
Yes
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
