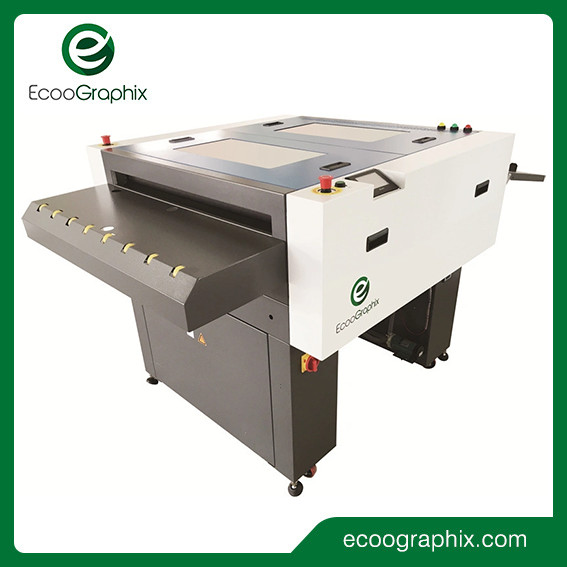

EcooGraphix CTP Processor P900
Regardless of the PS plate or the CTP plate, a processing machine is required for processing the plate after the exposure is completed. EcooGraphix CTP Processor can be used with Offline / Online Thermal CTP or CTCP or UV-CTP platesetters, such as Kodak, Screen, Agfa, Creo, Amsky, or Cron CTP machines.
Specification
| Model |
Ecoo P-900 |
Ecoo P-1150 |
Ecoo P-1250 |
Ecoo P-1350 |
Ecoo P-1700 |
| Plate size(max) |
Max width: 880 mm |
Max width: 1150 mm |
Max width: 1250 mm |
Max width: 1300 mm |
Max width: 1700 mm |
| Plate size(min) |
Min width: 280 mm |
Min width: 280 mm |
Min width: 280 mm |
Min width: 290 mm |
Min width: 280 mm |
| Plate thickness |
0.15-0.4mm |
| Processing power |
Speed adjustable (10 to 60 seconds) 400-1000 mm/minutes |
| Temperature |
10 to 45 ºC can be adjusted (automatic temperature control, cooling system) |
| Developing capacity |
46 L |
58 L |
70 L |
74 L |
78 L |
| Drying temperature |
25-65 ºC can be adjusted |
| Electricity requirement |
220 V(208V-240V) single phase 50 or 60 hz |
| Working power |
4.5 kw |
5 kw |
5.5 kw |
5.5 kw |
6 kw |
| Weight |
355 kg |
420 kg |
512 kg |
440 kg |
600 kg |
Product Description
1. Application

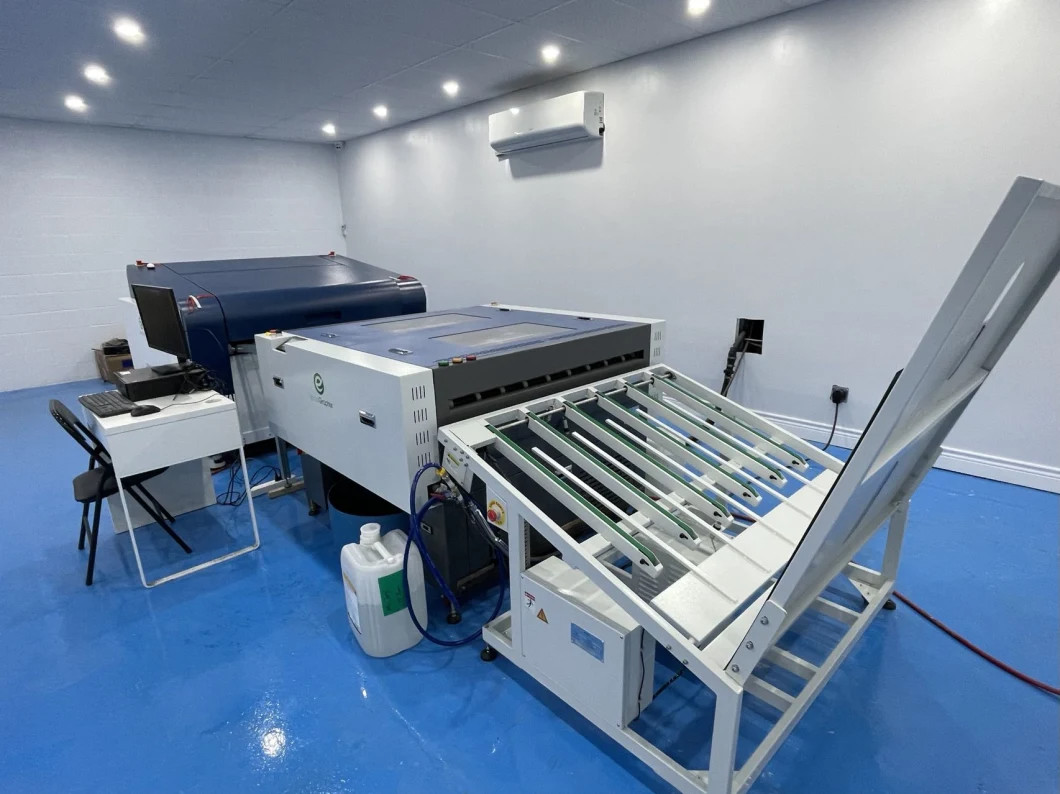

A slide table at the back of the processor is included by default.
The stacker is an optional item and needs to be added separately.
For manual CTP 400 and 800 models, the P-900 processor is sufficient, as plates can be manually turned around and input into the processor in portrait style.
For 800 automatic models, the P-1150 processor is required as plate output in landscape style.
2. Characteristic
Robustness, reliability, and consistency: PVCboard tub and tough rubber roller are used in the machine. it is highly resistant to acid alkali corrosion; a key-slot design is adopted at processor chain and gears transmission, which makes it stronger and resistant to impact.
Optimized plate processing path: double chemical recycling pipes make the chemical better distributed; a well-designed plate path workflow curve ensures the plate processing is stable and smooth through developing, washing, gluing, and drying the tank.
Unique roller design: ensures even squeezing effect along rollers.
Environmental friendliness and energy saving: optimized inner water wash circulation design, can save water as high as 7096 compared with a full running water wash. Heating airflow is protected by pipes, saving energy efficiently.
User-friendly operation: A touch screen is adopted for user operation; it makes the machine more humanized.
Easy maintenance: The main parts are mostly located in the machine, and they are easy to access; scales and position marks are built into the machine; it is easy to get removed parts back after maintenance.
Safety standards: chemical low-level warning, drier overheat self-protection, plate jam warning, and cover safety protection can give warnings or even stop machines for safety purposes.
Producing And Packaging
FAQ
1. How long is the lead time?
The lead time is normally 30 days.
2. How long is the warranty period?
Ecoographix gurantees 1 year of warranty for processor machine. Anyway, it is a mature and stable machine.
3. Do you have accompanying plate products to realize an easy purchase for some end users?
Yes, we have varified CTP/CTCP plates at most competitive price. In addition, blanket, ink, developer, processors are also in our business range.
4. Payment term?
Normally, 30% deposit, 70% before shipping.
5. What about the Installation and after-sales technician support?
Our engineer are all English speakers and can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
