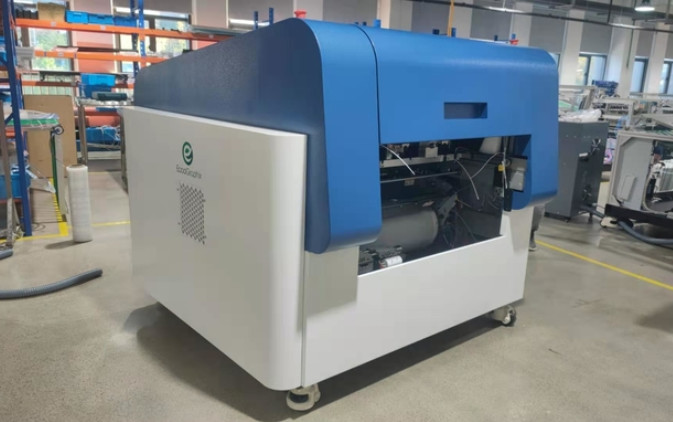

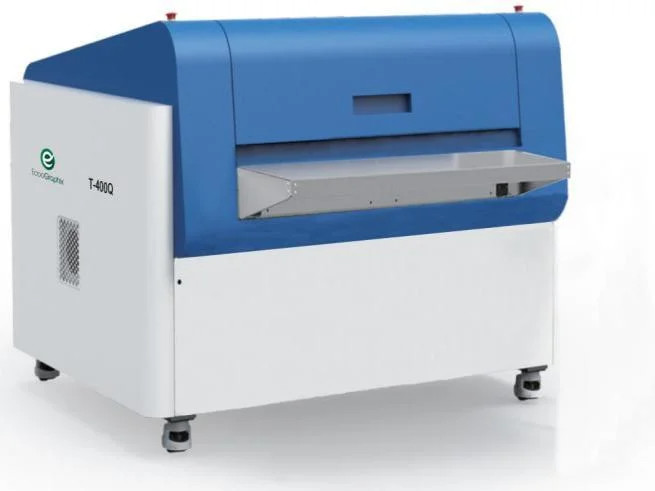

256-Channel A1 Automatic Plate Making Thermal CTP

256-Channel A1 Automatic Plate Making Thermal CTP

T-800 Q (F, V, X)Specifications
Model	F	V	X
Exposing Method	External Drum
Imaging System	825nm laser
Throughput	35plates/hour	45plates/hour	55plates/hour
	1030mm x 800mm, 2400dpi, Plate sensitivity 120mj/cm²
Plate Sizes	Max.1163mm x 940mm Min.400mm x 300mm
Plate Thickness	0.15mm, 0.30mm
Resolution	Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable high resolution option: maximum up to 10000dpi at fast scan direction
Repeatability	0.01mm
Interface	Optical Fiber
Plate Loading	Standard: Simplified Autoloader or multi-cassette Autoloader(four cassettes)
Punching System	Optional: internal punching(maximum four sets of plate holes)
Net Weight	CTP: 1200kg, Simplified Autoloader: 200KG, Multi-cassette Autoloader: 570KG
Machine Size (WxLxH)mm	1900x2370x1320
Power Supply	CTP(single phase:220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W)) Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W))
Operation Environment	recommended:21-25ºC, allowable temperature: 15-30ºC,relative humidity:40-70%

Technical Advantages

At present, there are thermal CTP and photopolymer CTP Thermal CTP accounts for95% of the market share.

Ecoo T-800Q CTP is thermal CTP.
​​

​EOUIPPED WITH ECOO 256-CHANNEL SPATIAL LIGHT MODULATOR

Output speed doubled
Fineness and precision 10 times improved
Color saturation over 21%increased

TRIANGULAR-DISPLACEMENT DYNAMIC AUTOFOCUS SYSTEM

Ecoo T-800Q CTP uses the third-generation dynamic autofocus technology. lts accurate ranging system can directly detect small distance changes of 0.1 micron, and achieve the focus to be accurate at any time driven by voice coil motor. In the process of exposure,this system can real-time measure the distance between the plate and the lens and adjust thelens position to ensure the constant distance between the plate and the lens, so as to achieve the exposure accuracy of the whole plate.

LASER DETECTS PLATE EDGE TECHNOLOGY

Use the ultrafine 650nm infrared to find the edge ofthe plate without any effect on the plate, which perfectly matches the traditional plate edge aligning and punching method; better than the method of punching by cross line registration (the cross line cannot be seen on processing-free plate before printing)

LINEAR MOTOR

The linear motor eliminates all kinds of positioning deviations caused by intermediate links, so the positioning precision is high. inaddition, contact less transmission can be achieved. Except for the guide rail, almost nomechanical friction exists, more stability, less failure and longer service life.

DIRECT DRIVE MOTOR

Extremely high positioning precision, fast acceleration; The direct drive motor significantlyreduces the time of load & unload and greatly improves the efficiency, comparing to the conventional belt driving drum method.

RELIABLE PLATE CLAMP TECHNOLOGY

Innovative design, reliability and freeof maintenance; Even in the case of vacuum module failure, our clamp can still work reliably.

TECHNICAL ADVANTAGES OF 256-CHANNELSPATIAL LIGHT MODULATOR

Differing from the current optical fiber carriage, the 256-channel laser carriage adopts spatial light modulator to divide a laser beam into 256 channels ofsmall laser beams and achieves sharp-edged square dot imaging on plate. In comparison to conventional optical fiber technology, the average energy of each channel is easier to be controlled and the dot quality is more consistent, guaranteeing the printing quality.
In terms of precision, this technology, with the fine dot feature, breaks through the high-precision requirements and reaches up to 12800 dpiresolution. Even applying in the special printing with high resolution requirement, the result is excellent.
The single light source laser used, the flexibility for selecting the light source energy and stable power control provide more selections of output speed,meeting the requirement of different customers.

FAQ
1. Q: How long is the lead time?
A: The lead time for each CTP machine is normally 30 days. We can accelerate for emergency cases.

2. Q: How long is the warranty period?
A: Ecoographix gurantees 3 years of warranty for laser head and spare parts. If the machine user use our plate at the same time, we offer lifetime warranty.

3. Q: Is there any certification for your CTP machine?
A: Yes, All our CTP machines have been certified by SGS and CE. Vary stable and muture. We have hundreds of installation iover the world since 2012.

4. Q: Do you have accompanying plate products to make an easy purchase for some end users?
A: Yes, we have qualified CTP/CTcP plates at most favourite price. In addition, blanket, ink, developer, processors are also in our business range.

5. Q: What is your normal Payment term?
A: Normally, 30% deposit, 70% before shipping.

6. Q: What are your main products ?
A: Generally, we manage two types of products: prepress equipments and consumables, postpress equipments and consumables. Our category is as below:
A: 1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

7. Q: Can you offer some successful installation for reference?
A: Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. But we will not reveal vor the purpose of information privacy.

8. Q: Can you also supply the Workflow and RIP?
A: Yes, we can provide the Workflow Brain New and RIP Compose V9.

9. Q: What about the Installation and after-sales technician support?
A: Our engineer are all Ecan go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.

10.Q: Where is your factory?
A: Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory at any time!

Attention:

Before installation, please measure the thickness of blanket for adjusting the press accurately;
While installation, please use the constant wrench to tighten gradually;
After installation, please clean the rubber surface and ready for print;
During the use, please often use the special solvent to clean the rubber surface for extending the useful time.

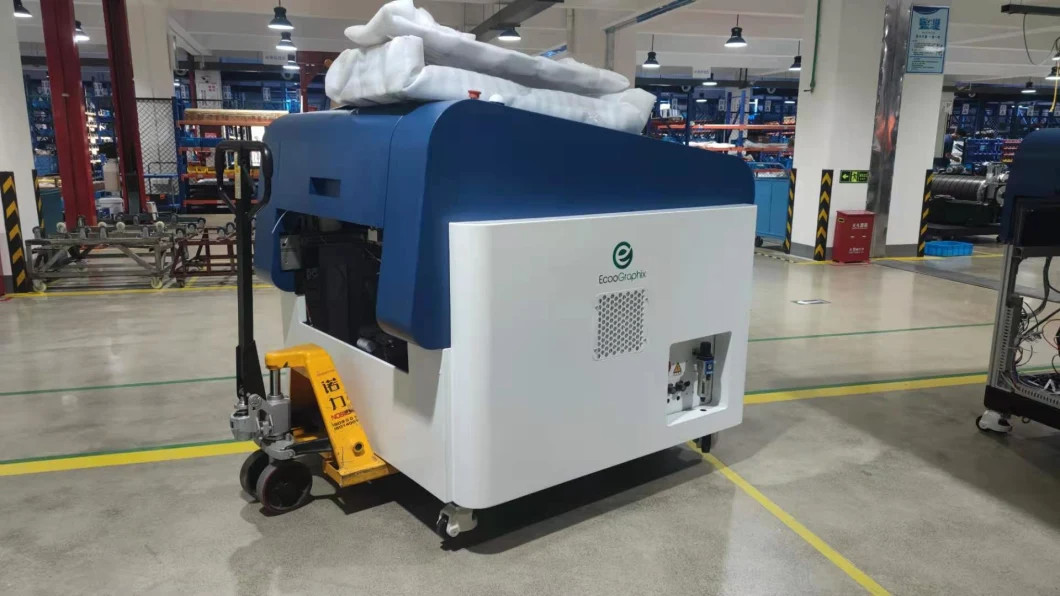

Delivery & Packing:

Any kinds of transpotation is workable for us. The nearest departure port is Shanghai port or Ningbo Port.
The equipment is packed in standard wood carton for exporting use with enough protective layers.
