Roll To Roll Sublimation Digital Inkjet Textile Printing Machine

1SET
MOQ
Negotiable
Price
Roll To Roll Sublimation Digital Inkjet Textile Printing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Roll To Roll Sublimation Digital Inkjet Textile Printing Machine
Resolution: High Quality Model (6 Pass): 1800 X 720dpi
Print Head: Dual EPSON I3200-A1 Print Heads
Head Moisture Method: Auto Head Cleaning And Moisturize
Speed: 30sqm/h (6 Pass)
Media Transfer: Auto Taking-Up Media Device
Inks: Double Four Color (CMYK)
Rip: Maintop5.3/Photoprint10.5/Onyx
Power Supply: 210-230V, 50/60HZ, 16A
Highlight:

Sublimation Digital Inkjet Textile Printing Machine

,

Roll To Roll Sublimation Digital Printer

,

Digital Inkjet Textile Printing Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: E-Jet V21
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 500sets/Year
Product Description

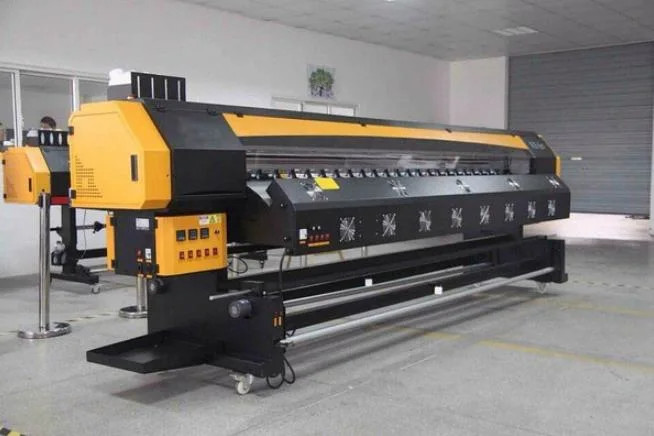

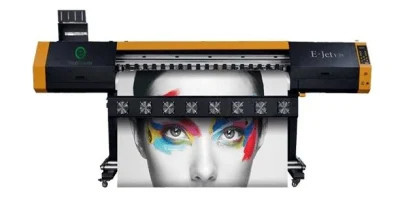

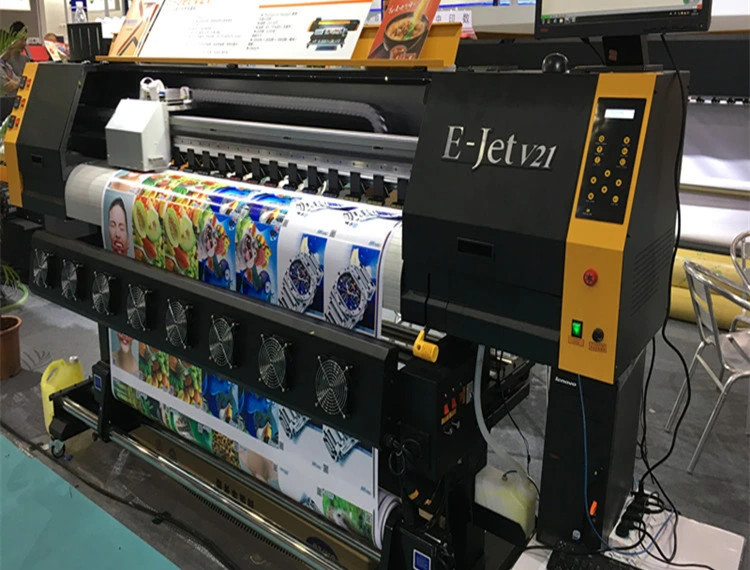

Roll to Roll Sublimation Digital Inkjet Textile Printing Machine
Roll To Roll Sublimation Digital Inkjet Textile Printing Machine 0
                                        (Model: E-Jet V21)



Product Description



Features:

1) Thicker and wider rack, Printer working more stable
2) Updated paper roller, pinch roller to reduce media feeding bulging, and more high precision media feeding
3) Updated print head maintenance system to reduce print head may clog
4) Updated printer platform, higher printing resolution
5) More scientific drive line system
6) Longer Service life
7) Support batch production by take-up and feeding system



Application:
Roll To Roll Sublimation Digital Inkjet Textile Printing Machine 1



Speccification




ModelE-jet V21
Resolution & SpeedHigh quality model (6 pass): 1800 x 720dpi, 30m²/h
Production model (4 pass): 1200 x 720dpi, 45m²/h
High speed model (2 pass): 600x 720dpi, 95m²/h
Media Transfer Auto Taking-Up Media Device
Inks Double four color (CMYK), apply for water-base and dye sublimation ink
Rip Maintop5.3/Photoprint10.5/Onyx
Print head Dual EPSON I3200-A1 print heads (Nozzle Quantity 3200), Auto suck ink, ink suck protect system
Format Dimension2895L x 840W x 1490H (mm)
Head Moisture Method Auto Head Cleaning and Moisturize
MediaModalities: Roll to roll media
Specifications: Max width 1.9 meters, unlimited length
Classification: Banner, sublimation paper, PE, PP, ABS, PU, Vinyl
Print formatPDF, PS, EPS, TIFF, AL etc. (RGB/CMYK)
Power Supply 210-230V, 50/60HZ, 16A, Print Power: 1000W
Dryer Power: Max.3500W Temperature: 18-30ºC
Environment powerTemperature:18-30ºC
Humidity: 35-70%RH
Gross power: 3.6KW
Weight:289KG



Carriage:
Roll To Roll Sublimation Digital Inkjet Textile Printing Machine 2
The height of double printheads can be arbitrarily adjusted. Anti-scratch function on both sides of the car reduces the printhead damage caused by paper warping.



Printhead:
Roll To Roll Sublimation Digital Inkjet Textile Printing Machine 3
Adopt Epson I3200-A1 printhead with 3200 nozzles, which can improve the speed of printing greatly. Variable dot technology, 3 sizes of dots can be generated for smoother gradation vivid colors and sharp images.


Capping Station:
Roll To Roll Sublimation Digital Inkjet Textile Printing Machine 4
Equipped with advanced intelligent auto printhead cleaning and moisturizing device, which can pump ink well and keep the ink flow fluently.

Disc Ink Filter: Bulk tanks with 3L capacity make sure the continuous ink supply. Sub-tank is to keep all colors ink always at the same level.




FAQ



1. Production Lead Time: about 30days after received the deposit
2. Payment Term: 30% deposit, 70% before shipping
3. Warranty: One year warranty (For machine parts, we have one year guarantee. For motor, three months guarantee. For spare parts touching with ink, such as ink sat, ink pump, printhead, we have no guarantee. It's all the same in the market.)
4. Installation and Training: We help the installation through online Video , if you have problem when you use the machine, we will train you online. These are all for free. If needed, we can also send engineers to your place, but you need to pay their travel expense.
