Name: CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-2302AF
Price: 275,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Classification: Digital Inkjet Printer

Printhead Quantity: 2 Pieces

Feeding Width: 2500mm

Printing Resolution: ≥ 180*300dpi

Printhead Model: Ricoh Gen5

Printing Area: 2300mm*2000mm

Corrugated Thickness: Between 3.5~12mm

Color Type: C, M, Y, K

Controlled Ink DOT Size: 7~35pl

Highlight:

2500mm Feeding Digital Inkjet Printer

CMYK Corrugated Digital Inkjet Printer

Intelligent Corrugated Digital Inkjet Printer

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-2302AF

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

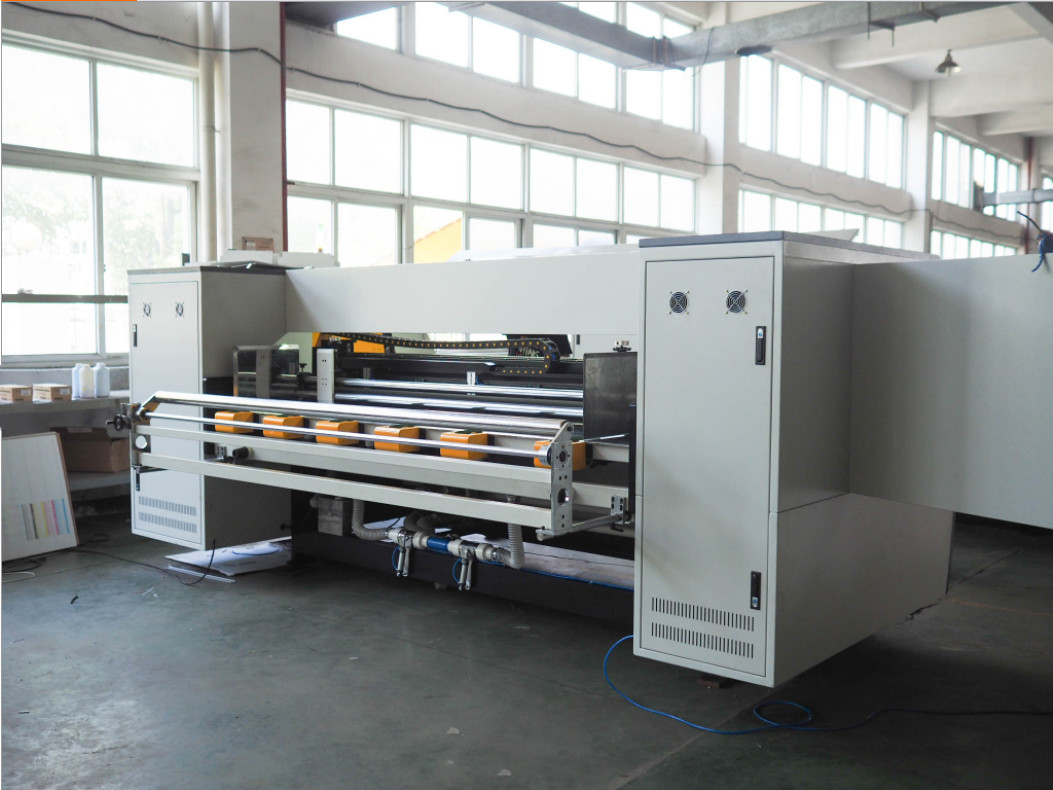

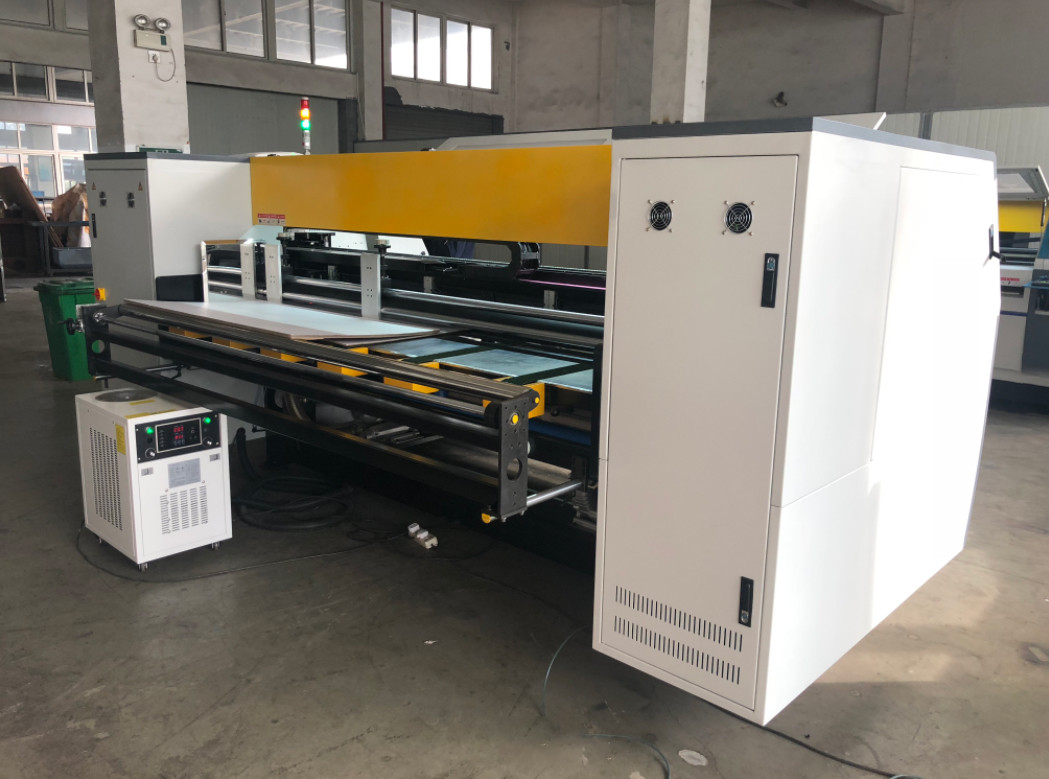

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width

Product Description

2500mm Feeding Width Digital Corugated Non-plate Printer Press

~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ Specifications ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~

Digital Corrugated Printer

Model
ECOO-2302AF

Printhead Quantity
2 pieces

Feeding Width
2500mm

Printing Area
2300mm*2000mm

Color Type
C, M, Y, K

Printhead Model
Ricoh GEN5

Temperature Control
Integrated heater and thermistor

Printhead Life
100 billion actuations per nozzle

Printing Efficiency
3 PASS the highest 25 m²/hour, 4 PASS the highest 20 m²/hour

Printing Resolution
≥ 180*300 dpi

Controlled Ink Dot Size
7~35pl

Jetting Frequency
30KHz

Corrugated Thickness
Between 3.5mm~12mm

Feeding Mode
Automatic feeding

Graphics Format Support
JPG, BMP, TIF

Printing Head
Corrosion-resistant industrial ink jet head

Control System
Digital-printing control system from LeiPeng intelligent Technology

Ink-provide
Automatic two levels supply, Fully enclosed ink supply channel

Print Head Cleaning System
Automatic Negative pressure suction

Work Environment
3-45ºC Indoor temperature, Humidity 20-70%

Press Roll Method
Electrical control

Warranty
6 months for the print head, 1 year for the machine

Operate System
Windows 7 system 64-bit operating system

Power Supply
≤ 1.7KW, AC 220V±10%, 50-60Hz

Machine Size
4000*2600*1700mm

Picking Size
4200*2000*1900mm

Net Weight
2300KG

Digital Corrugated Printer
Model	ECOO-2302AF
Printhead Quantity	2 pieces
Feeding Width	2500mm
Printing Area	2300mm*2000mm
Color Type	C, M, Y, K
Printhead Model	Ricoh GEN5
Temperature Control	Integrated heater and thermistor
Printhead Life	100 billion actuations per nozzle
Printing Efficiency	3 PASS the highest 25 m²/hour, 4 PASS the highest 20 m²/hour
Printing Resolution	≥ 180*300 dpi
Controlled Ink Dot Size	7~35pl
Jetting Frequency	30KHz
Corrugated Thickness	Between 3.5mm~12mm
Feeding Mode	Automatic feeding
Graphics Format Support	JPG, BMP, TIF
Printing Head	Corrosion-resistant industrial ink jet head
Control System	Digital-printing control system from LeiPeng intelligent Technology
Ink-provide	Automatic two levels supply, Fully enclosed ink supply channel
Print Head Cleaning System	Automatic Negative pressure suction
Work Environment	3-45ºC Indoor temperature, Humidity 20-70%
Press Roll Method	Electrical control
Warranty	6 months for the print head, 1 year for the machine
Operate System	Windows 7 system 64-bit operating system
Power Supply	≤ 1.7KW, AC 220V±10%, 50-60Hz
Machine Size	400026001700mm
Picking Size	420020001900mm
Net Weight	2300KG

MACHINE CONFIGURATION LIST:

Product Name	Main Parts	Specification	Quantity	Manufacturers	Producing Area
Printing System	Printing head	Epson	2	Ricoh	Japan
Printing System	Color software		1	Ultriaprint	China
Moving Parts	X servo motor	0.75KW	1	PANASONIC	Japan
	feeding servo motor	0.75KW	1	PANASONIC	Japan
	Z servo motor	86 series	1	MOONS	China
Transmission Part	X guide rail	20	2	WON/ABBA	Korea/Japan
Control System	PLC	XC3 series	1	Xinje	China
	Touch panel		1	PaneMaster	China
	Computer			Lenovo	China
	Printing software		1	Sinlopon	China
UV Light Part	UV light		2		China
UV Light Part	UV Chiller	3000W	1		China

~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ Producing And Packaging ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 0

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 1

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 2

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 3

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 4

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 5

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 6

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 7

~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ Certifications ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 8

CMYK Corrugated Digital Inkjet Printer 2500mm Feeding Width 9

~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ FAQ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~ ○ ~

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?

A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: What is your warranty for the CTPs ?

A: Three years' laser head and main spare parts for the CTPs, one year for the processor. If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.

Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.

Q5: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
