Name: Ecoospark UV Piezo Inkjet Label Roll Embellishment Machine Perfect Solution for Enhanced Effects
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoospark
Price: 180000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: Ecoospark

Description: Digital Postpress Machine For Label Roll

Format: 288mm, 330mm

Resolution: 1440*360 Dpi

Printing Heads: Konica Minolta

Function: Varnishing, Foil Stamping, 3D Shining, Embossing

Vanishing Thickness: 10-180 Micro

Highlight:

Ecoospark Label Roll Embellishment Machine

UV Label Roll Embellishment Machine

Inkjet Label Roll Embellishment Machine

Basic Infomation

Place of Origin: China

Brand Name: Ecoographix

Certification: CE, ISO

Model Number: Ecoospark

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 55 days

Payment Terms: T/T

Supply Ability: 100 sets per year

Gallery

Ecoospark UV Piezo Inkjet Label Roll Embellishment Machine Perfect Solution for Enhanced Effects

Product Description

Machine description

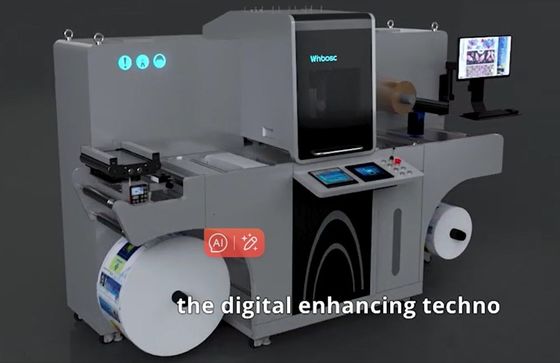

EcooSpark is a digital UV varnishing and foil stamping machine for label printers, no need for plates, purely digital inkejet printing application. EcooSpark is a pioneer in this segment. If you are in label printing industry or having label printing customers, please pay high attention on this message.

It uses konita Minolta printing heads (4pcs for 288mm format, 5 pcs for 330mm fromat) and makes effects of 3D shining, varnishing, cold foil stamping, Braille and embossing on the printed label rolls.No need of plate making. Instant achievement of unique visual effect.

The consumables are digital UV ink and printing heads. The max. speed could be 60 meters per minute.

Machine parameter

Printing Technology	UV Piezo DoD-inkjet
Resolution	up to 1440*360 dpi
Printing speed	10m/min - 60m/min(depend on polymer layer thickness)
Variable Image system	PDF, optimized PDF, Optional barcode system
Supported image standards	PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
Substrates	Offset, Digital, Plastics, Laminated and coated substrates
Printing image width	280mm (extendable to 320 mm)
Polymer	WB-DS-Clear Polymer
Polymer layer thickness	From 10 up to 180 microns
Ink curing	Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter	Max. 700mm, Core 76mm
Rewinder diameter	Max. 700mm, Core 76mm
Substrates thickness	30-400 micro
Substrates width	330mm
Press with Foil station dimensions (LxHxW)	3500mmx1900mmx1800mm
Operating environment	Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical requirements	Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 25 Amps in Production
weight	2800kg

Main function and performance

3D shining and spot varnishing varnish drop on demand, from computer to label digitally and directly. Each single pass could allows 10-180 micro varnish coating.
Embossing Using the unique UV inkjet printing technology, the crystal clear polymer varnish is tightly adhered, stable in nature, full in shape, and durable and compliant. Embossed characters and graphics permanetly maintain a clear outline and will not be deformed.
Cold foil stamping Digital cold foil workflow, high precision, less wasteage. Stick the foil on the varnished area. Allow foil stamping on opp/pet film. The same height of foil staping as varnish.
Braille printing The min. varnishing layer could be 10μm by one pass with normal UV varnish. The maximum thickness of the varnish layer is 150 μm, by one pass with normal UV varnish. But if customer needs to achieve braille printing, which is common in European society, with special UV varnish, the one pass can make 170μm height and can make two pass to achieve max 350 μm height.

Features

Features compared with traditional roller varnish machine
1) All digital workflow, allows variable data printing and small batch label printing.

2) No need of plate or mould, from computer to label, instant effect achievement.

3) Varnish-jet on demand, can make very tiny and accurate and various effect in the same area.

Features with other digital postpress machine
1) Automatic printing head cleaning, which is not available in most other plus

2) Manual registration, which most others do not have

3) Imported (from UK) mainboard and software, durable and reliable

4) SGS certified varnish, CE certified machine.

5)3 years or 5 years warranty policy including the printing heads
