Digital Label Enhancement Foil Stamping And Varnish Finishing Machine

1SET
MOQ
Negotiable
Price
Digital Label Enhancement Foil Stamping And Varnish Finishing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Digital Label Enhancement Foil Stamping And Varnish Finishing Machine
Resolution: 360*360 Dpi, Up To 1440*360 Dpi
Inkjet Platform: Inkjet, Foiling
Printing Speed: 6m/min - 50m/min; Depend On Polymer Layer Thickness
Printing Thickness: 10-160um
Printed Image Size: Max Image Size 288mm X 10 Metres
Maximum Unwind Diameter: Max Roll Dia 700mm, Core Dia 76mm
Substrate: Offset Print, Digital Print, Flexible Material, Lamination & Other Coated Material
Maximum Substrate Width: 330mm
Polymer: WB-DS-Clear Polymer
Polymer Layer Thickness: From 10 Up To 250 Microns
Ink Curing: Inter UV-LED Pre-curing/Full Curing By UV-LED
Highlight:

Digital Label Enhancement Foil Stamping Machine

,

Varnish Finishing Foil Stamping Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoospark
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 100SETS/YEAR
Product Description

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine
Model: EcooSpark

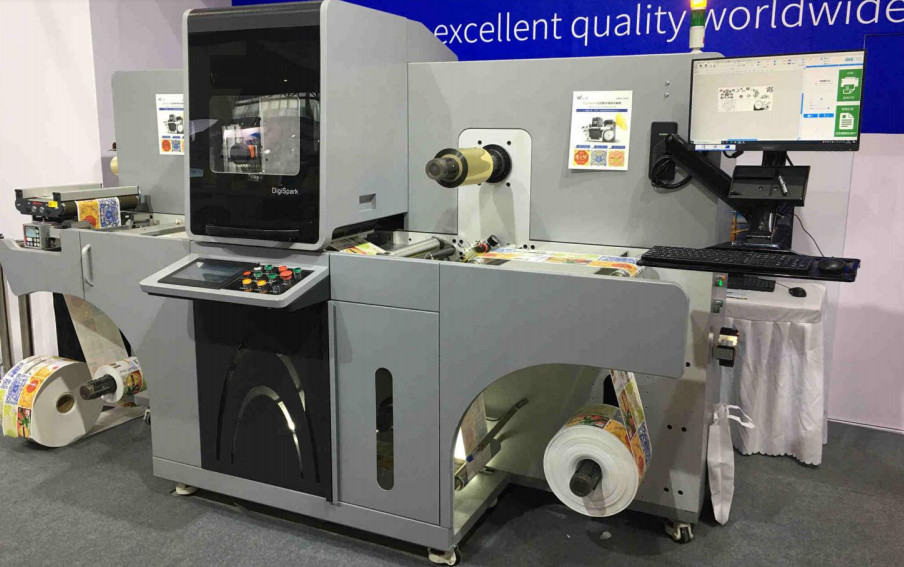

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 0

                (For Cold Foil Stamping, 3D Embossing, Spot Varnishing)





Product Description



EcooGraphix's newly developed EcooSpark digital printing machine realizes digitalsynergistic processes such as digital varnishing, 3D crystal bright, partial glazing, cold foil, stamping, embossing and etc.,without the need for plate making. It can reduce costsand instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.

Applications: Wine Labels, Cosmetic Labels, Luxury labels and so on:

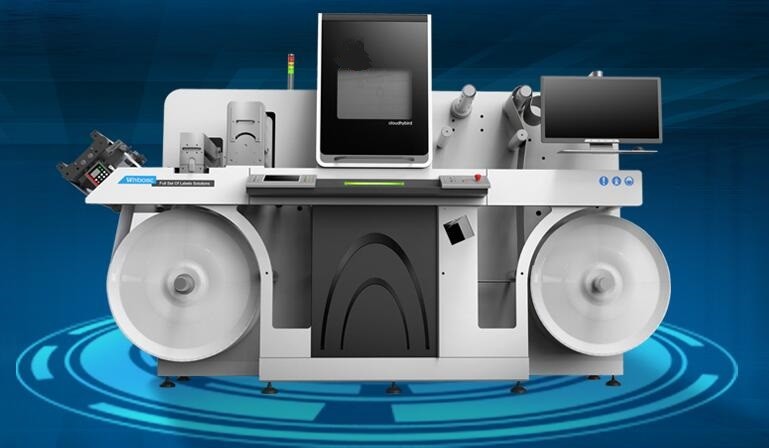

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 1


Specification


Model Digispark
Printing Technology UV Piezo DoD-inkjet
Resolution Up to 1080*360 dpi
Printing speed 6m/min - 30m/min(depend on polymer layer thickness)
Variable Image system PDF, optimized PDF, Optional barcode system
Supported image standards PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing image width 280mm (extendable to 320 mm)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 180 microns
Ink curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micro
Substrates width 330mm
Press with Foil station dimensions (LxHxW) 3500mmx1900mmx1800mm
Operating environment Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production
Weight 2800kg

Features:
Sturdy structure (double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil

High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 2


More Details



EcooSpark Workflow:

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 3



EcooSpark advantages:

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 4



Effect of different thickness of foiling line on BOPPPPPETArt Coated paper:

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 5



Effect of different type of fonts:

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 6


Producing And Packaging

Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 7

















Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 8






















Digital Label Enhancement Foil Stamping And Varnish Finishing Machine 9


FAQ



1. What are the postpress effects achieved by this machine?
Cold foil stamping, varnishing, 3D shining and embossing.


2. Can this model do color printing?
No. If you need a hybrid label printing machine which can do both printing and postpress printing, you can consider our other models. Please consult our sales.

3. How about the lead time and payment term?
We need 45 days to produce this machine. Normally our payment term is 30% deposit and 60% balance before shipment and 10% after installation.

4. How about the installation and operation training?
Our senior will fly to your location to do installation and training. It takes about 2 weeks. The service is free of charge but we will need the buyer to take the round trip freight and local hotel and meal cost.

5. Can you do the sample as we required?
Yes, we can sample your artwork on your specified printing substrate and then courier to you. and also shoted the printing procedure for your reference.

6. Is the machine printing white?
No. This is not a color printing machine. It is more like a varnish-jet postpress machine.

7. Is the machine all digital? What are the other similar machines in the markets?
Yes, all postpress procedures are digital, without any blanket or flexo plate. Just similar to Domino, HP, Epson and screen related products. But much more affordable.
