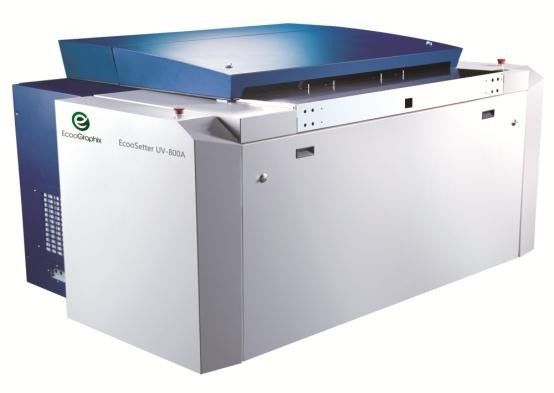

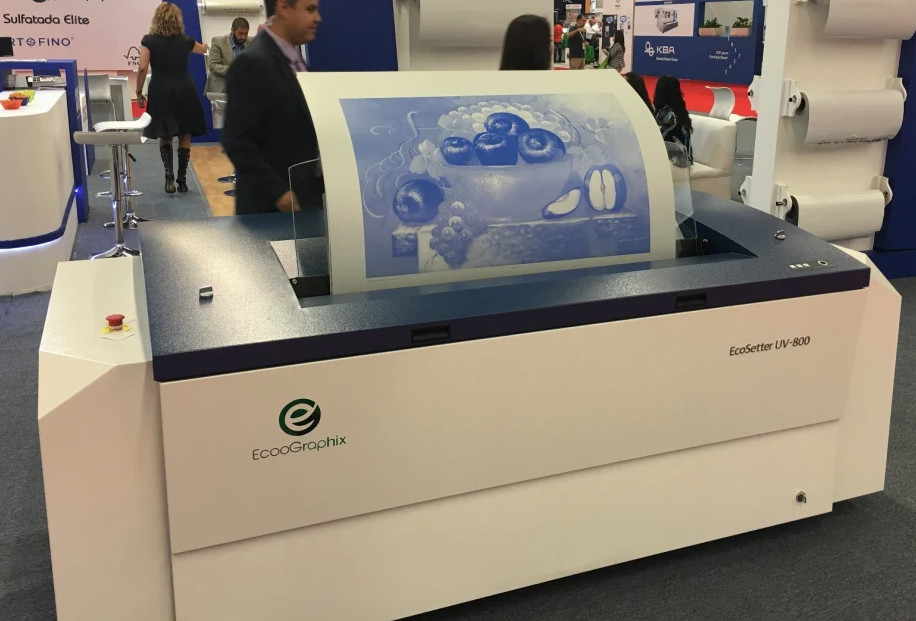

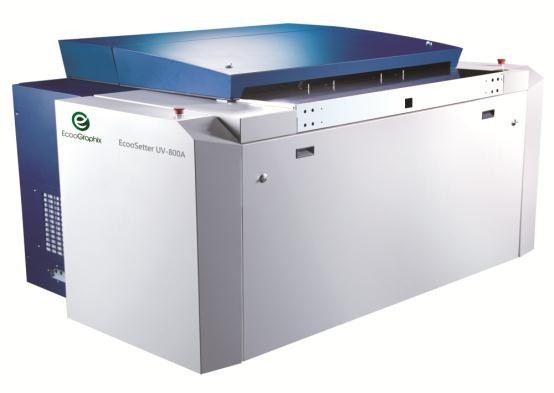

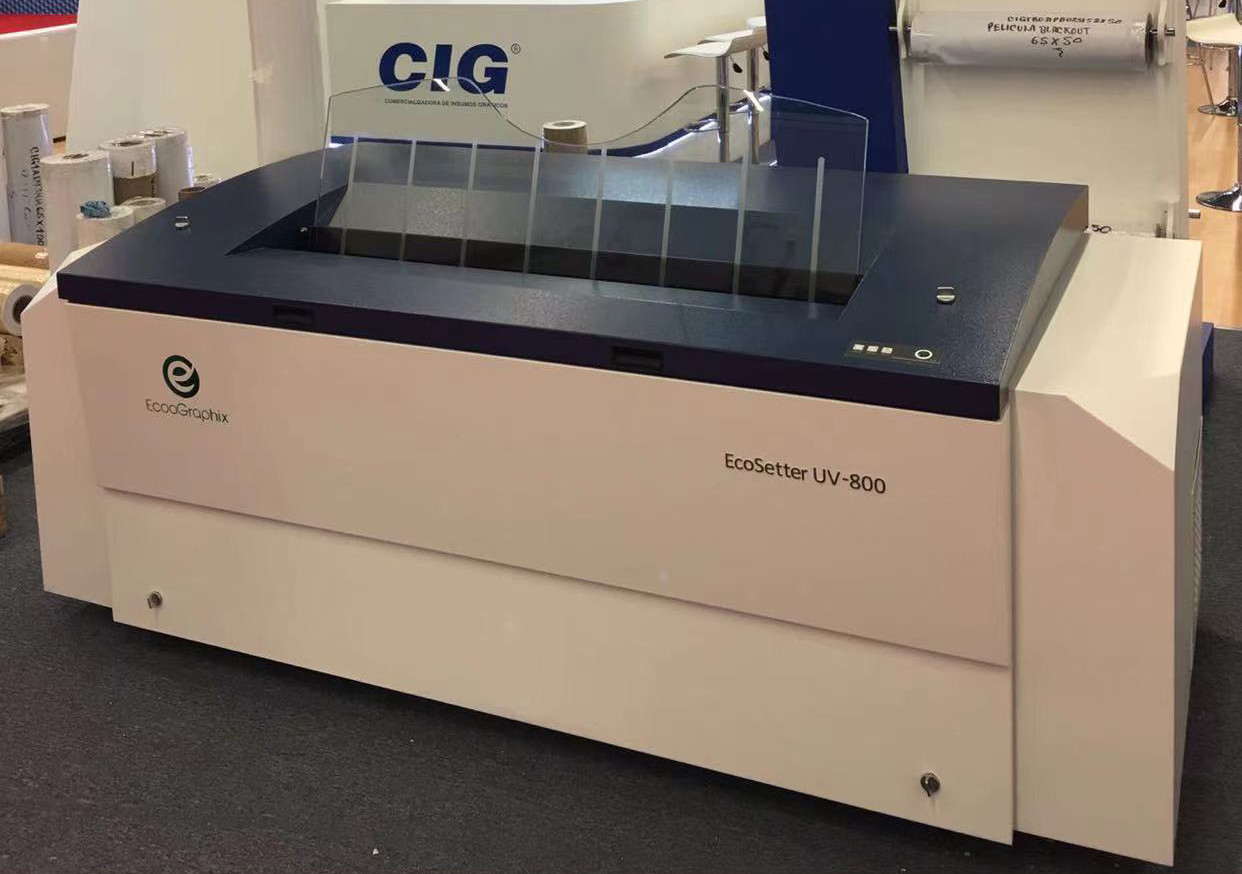

Thermal CTP T-800 Series Platesetter Manual Offset Printing Machine
The EcooGraphix Thermal CTP is an essential prepress solution for fast, short-run offset printing. It transfers digital images directly from the computer onto CTP plates—eliminating the need for film and reducing labor costs.
With EcooGraphix CTP technology, users benefit from exceptional image quality, reliable performance, and a compact design that offers greater operational flexibility.
The EcooGraphix T-800 Series is designed for A1 or B1 format newspaper and commercial printing, offering output speeds from 16 to 28 plates per hour. Its simple manual operation makes it user-friendly and easy to integrate into any print workflow.
Characteristic
Maximum size of plate: 1,163×940mm
Features: Less manpower, high stability, and perfect output quality
UV plates and thermal plates are available for you to lower production costs.
Specification
|
EcooSetter T-800 Series Thermal CTP Specifications
|
|
Model
|
T-800F
|
T-800S
|
T-800E
|
|
Exposing Method
|
External Drum
|
|
Imaging System
|
64-channel
|
48-channel
|
32-channel
|
|
|
Discrete 830nm laser diode
|
|
Throughput
|
28 plates/hour
|
22 plates/hour
|
16 plates/hour
|
|
1,030mm × 800mm, 2400dpi
|
|
Plate Size
|
Max. 1,163 × 940mm, Min. 300 × 400mm
|
|
Media Type
|
Positive 830nm thermal CTP plate
|
|
Plate Thickness
|
0.15mm to 0.30mm
|
|
Resolution
|
2400dpi
|
|
Repeatability
|
±5μm(Continuous exposing for 4 times or above on the same plate with
a temperature of 23℃ and humidity of 60%)
|
|
Interface
|
USB2.0/ USB3.0( USB2.0 is recommended )
|
|
Plate Loading
|
Manual
|
|
Net Weight
|
900 KG
|
|
Machine Size
|
2,320 × 1,080 × 960 mm( L×W×H )
|
|
Power Supply
|
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
|
|
Operation
Environment
|
Recommended: 21-25℃, Max. 15-30℃, Humidity: 40-70%
|
Major Highlights
Superior Dot Quality Reproduction
Proven worldwide with 1%-99% dot reproduction and up to 250lpi screening. Available in both 2400 dpi and 1200 dpi options.
Fully Qualified
Compatible with any thermal non-process plate and process plates.
Robust and Simple Design
Built for durability and ease of use. A user-friendly design minimizes human error.
Top-Class Components
Utilizes worldwide leading components from reputable suppliers in Japan, USA, and Germany.
Long Lifetime and Part Warranty
Laser diodes offer a lifespan of over 10,000 imaging hours (approximately 200,000 plates).
Long Warranty on the Machine
3-year warranty (free part replacement)
Low cost of parts after the 3-year warranty period. For example, laser diodes are available at $250 each.
Guaranteed Service
Installation and training by a technical engineer to ensure optimal setup and performance.
Regular remote maintenance every 2 months, with proactive engineer visits.
24/7 service response available.
Proven Worldwide Market Leadership
Over 6,000 units installed worldwide in the past 10 years.
In the USA and Canada, over 50 units have been installed in the last 3 years by a leading US press manufacturer.
35 units installed in Turkey by Esen Graphics.
Installations in the UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria, and more.
