All-in-One Digital Label Printing, Foiling and Die Cutting Machine

1 SET
MOQ
Negotiable
Price
All-in-One Digital Label Printing, Foiling and Die Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Label Printing Machine
Model: Ecoo Label IQ-330
Max. Roll Diameter: 350mm
Max. Media Width: 330mm
Max. Unwinding Diameter: 600mm
Max. Rewinding Diameter: 600mm
Highlight:

ZBS Flexo Label Printing Machine

,

320 Flexo Label Printing Machine

,

310mm UV Flexo Label Printer
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO ZBS 320
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 500 Sets/Year
Product Description
Product Description
All-in-One Digital Label Printing, Foiling & Die Cutting Machine
Product Description
  1. Integrated Versatility:  One machine, infinite possibilities. The Ecoo Label IQ-330 combines printing, laminating, cutting, and slitting into a single device, simplifying your production line and enhancing overall efficiency.
  2. Excellent Printing Performance: Whether using white, varnish, or colored UV inks, the Ecoo Label IQ-330 delivers outstanding print quality on a wide range of media, helping your labels stand out on the shelf.
  3. High precision cutting: Featuring ball screws and independent servo motors, the machine achieves a cutting accuracy of ±0.1mm, ensuring flawless labels every time.
  4. Wide Range of Applications: From food packaging and cosmetic labels to electronic product identification and industrial data encoding, the Ecoo Label IQ-330 handles it all with ease.
Digital Label Printing Machine
Model Ecoo Label IQ-330
Max. roll diameter 350mm
Max. media width 330mm
Print head EP i3200-U1x4
Ink Type UV ink
Ink color CMYK+W+V
Ink bottle capacity 1L
Print speed 4pass:56m/h 6pass:40m/h 8pass:28m/h
File format JPG/ PNG/ PDF
Cutting length 10-350mm
Cutting width 10-320mm
Repeat die-cutting accuracy 0.1mm
Number of die-cutting heads 2
Number of slitting knives Standard 3 (optional according to requirements)
Power consumption 4kW
Power supply AC220-240V, 50-60hz
Weight 2000KGS
Printer size 2500mm*1800mm*1700mm
Laminating specification Wide 330mm
Gold foil standard Hot foil stamping
Printing resolution 720*1200 720*1800 720*2400
Max. Printing width 330*320mm
Min. Printing width 330*100mm
Max. Printing length 10000mm
Min. Printing length 0.5mm
Thickness of printing materials Less than 300g
Technical data
Description Brand Quantity Origin
Printing roller
3sets China
Anilox roller Auclean/Laser 1set China
Unwind tension controller Mitsubishi 1set Japan
Rewind tension controller ZXTEC 1set China
Main motor Wannan 1set china
Transducer Mitsubishi 2sets Japan
Magnetic power brake/clutch Ningxia 3sets China
Electromagnetic valve Airtac 2 set Taiwan
Inverter Schneider 1set Frence
AC Contactor Schneider 2pcs France
Time relay C-LIN 1pc China
Solid relay Omron 6pcs Japan
Micro relay Weidmiiller 2pcs Germany
Temperature Controller Yuyao 6pcs China
Air switches fromSiemens 8pcs Germany
Low-pressure wiring Schneider All France
All the bearing NSK/CHINA
JAPAN/CHINA

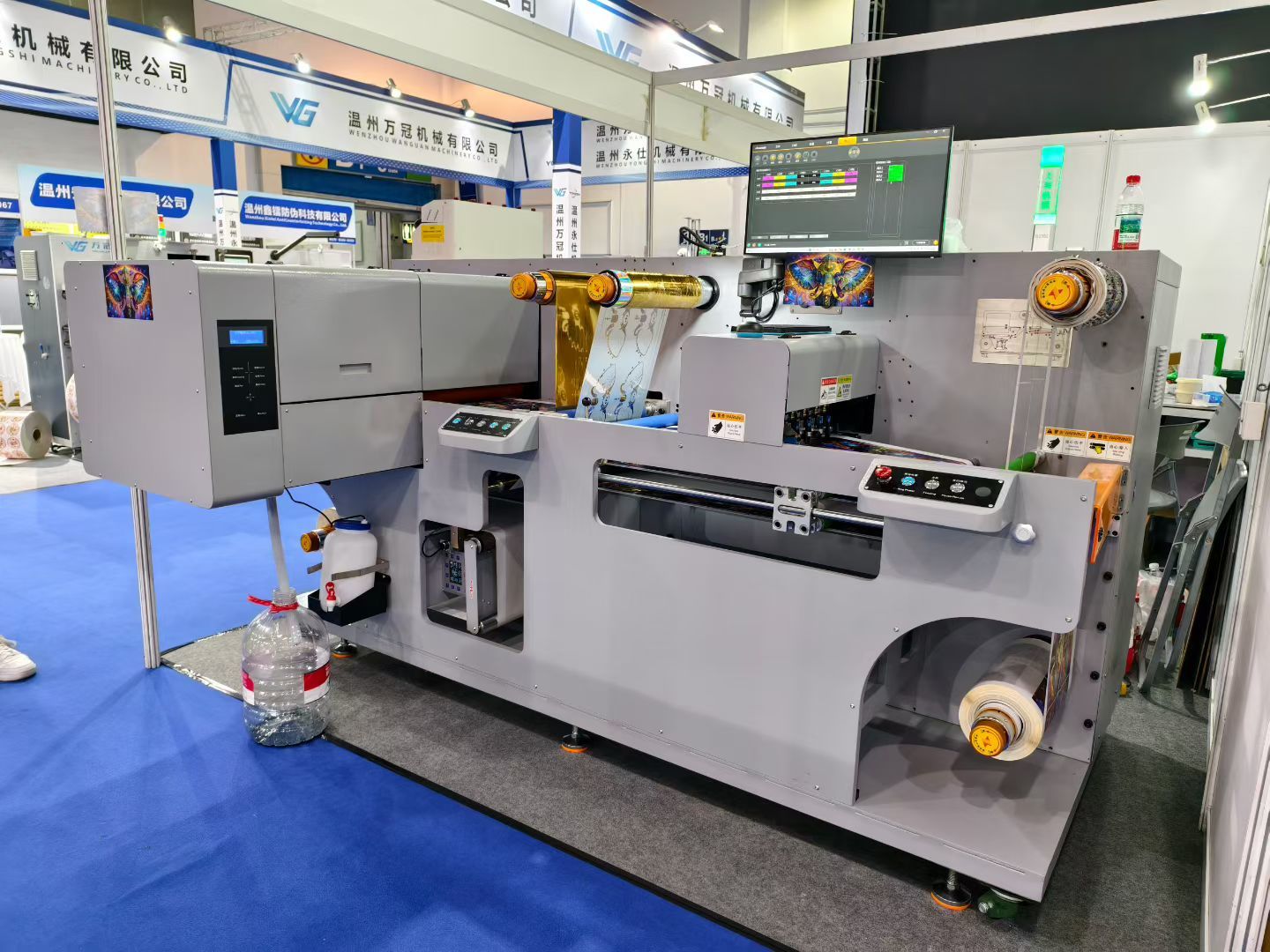

Digital All in One Label Printing and Foiling Die Cutting Machine
Digital All in One Label Printing and Foiling Die Cutting Machine Digital All in One Label Printing and Foiling Die Cutting Machine Digital All in One Label Printing and Foiling Die Cutting Machine Digital All in One Label Printing and Foiling Die Cutting Machine
