Name: T-1600S 16PPH Large Format Prepress Thermal CTP Printing Machine
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSetter VLF T-1600S
Price: 150000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Imaging System: 64-channel

Throughput: 1470mm X 1180mm/ 2400dpi: 16 Plates/hour

Repeatability: ±5μm(Continuous Exposing For 4 Times Or Above On The Same Plate With A Temperature Of 23℃ And Humidity Of 60%)

Power Supply: Single Phase: 220V-240V, Power Consumption(Peak Value): 5.5KW

Plate Size: Max. 1470mm X1180mm; Min. 300mm X 400mm

Environment: Recommended Temprature: 21-25℃; Allowed Temperature: 15-30℃, Humidity: 40-70%RH

Resolutions: 2400dpi

Weight: 1400KG

Highlight:

Large Format CTP Printing Machine

T-1600S CTP Printing Machine

16PPH CTP Printing Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: EcooSetter VLF T-1600S

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

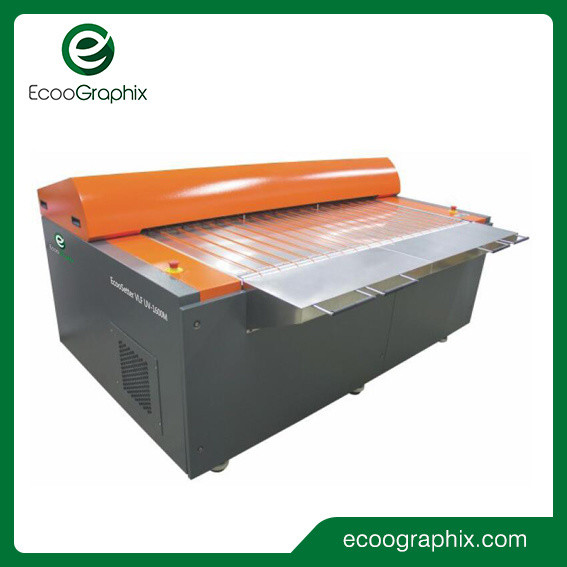

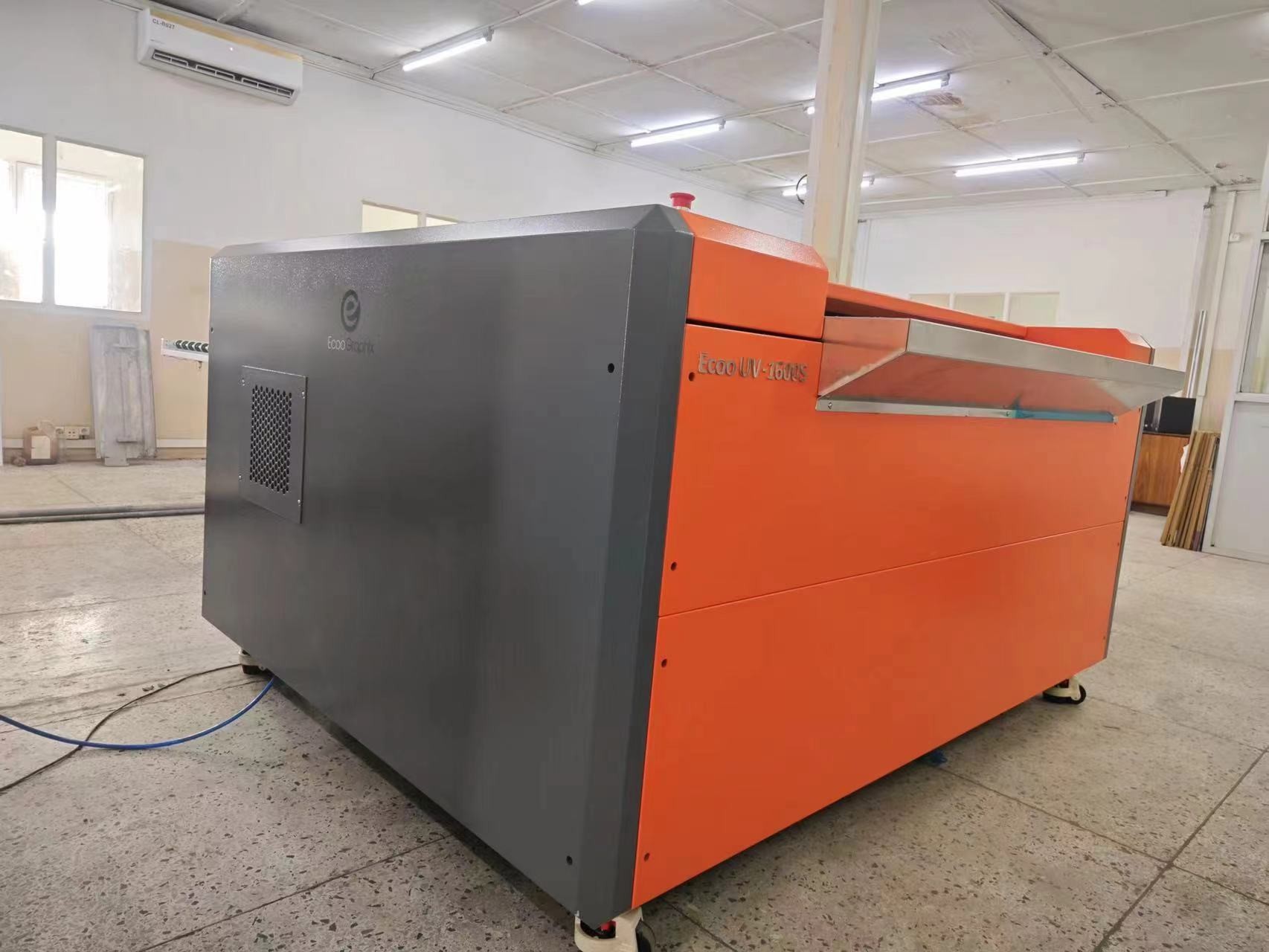

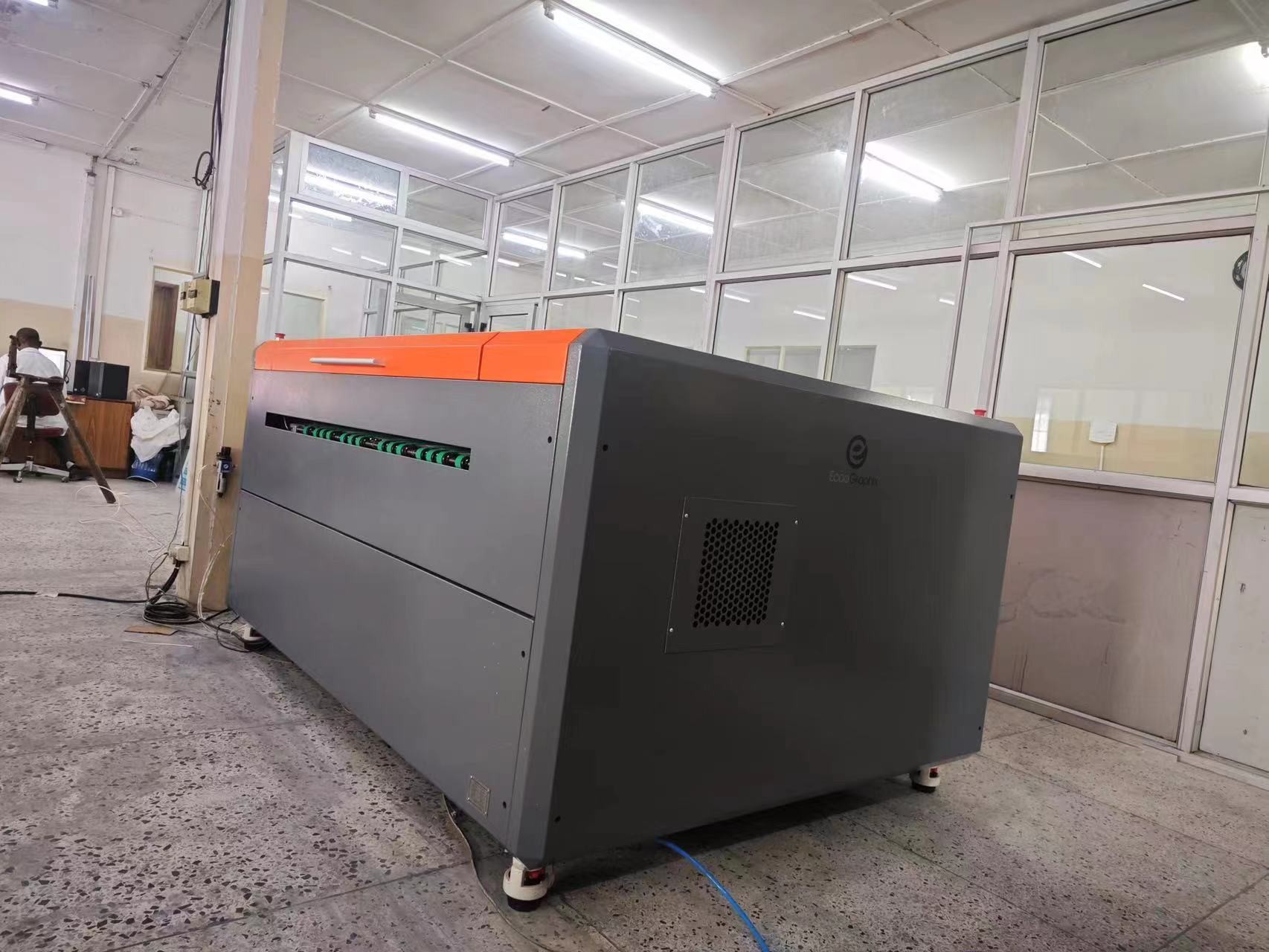

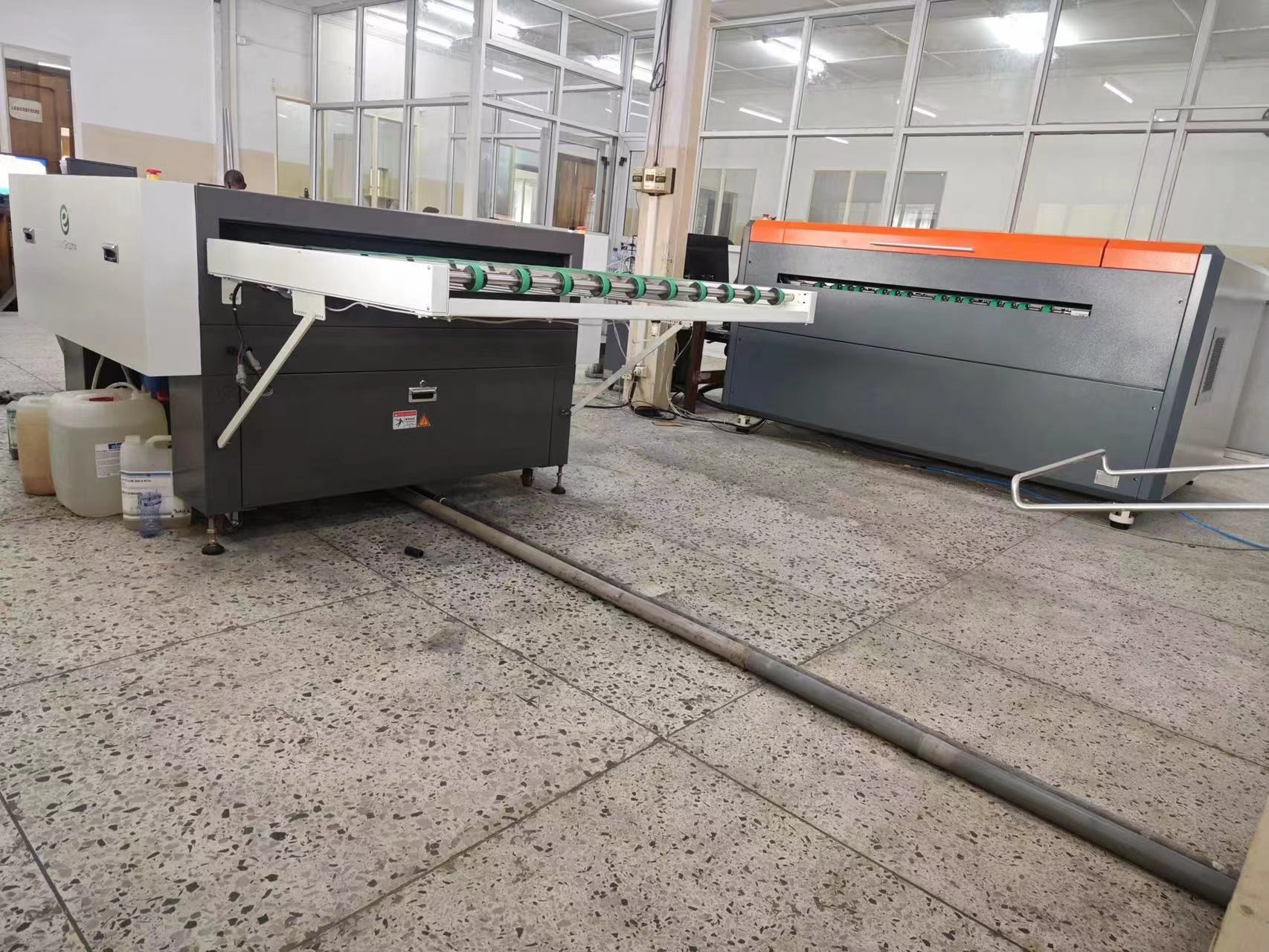

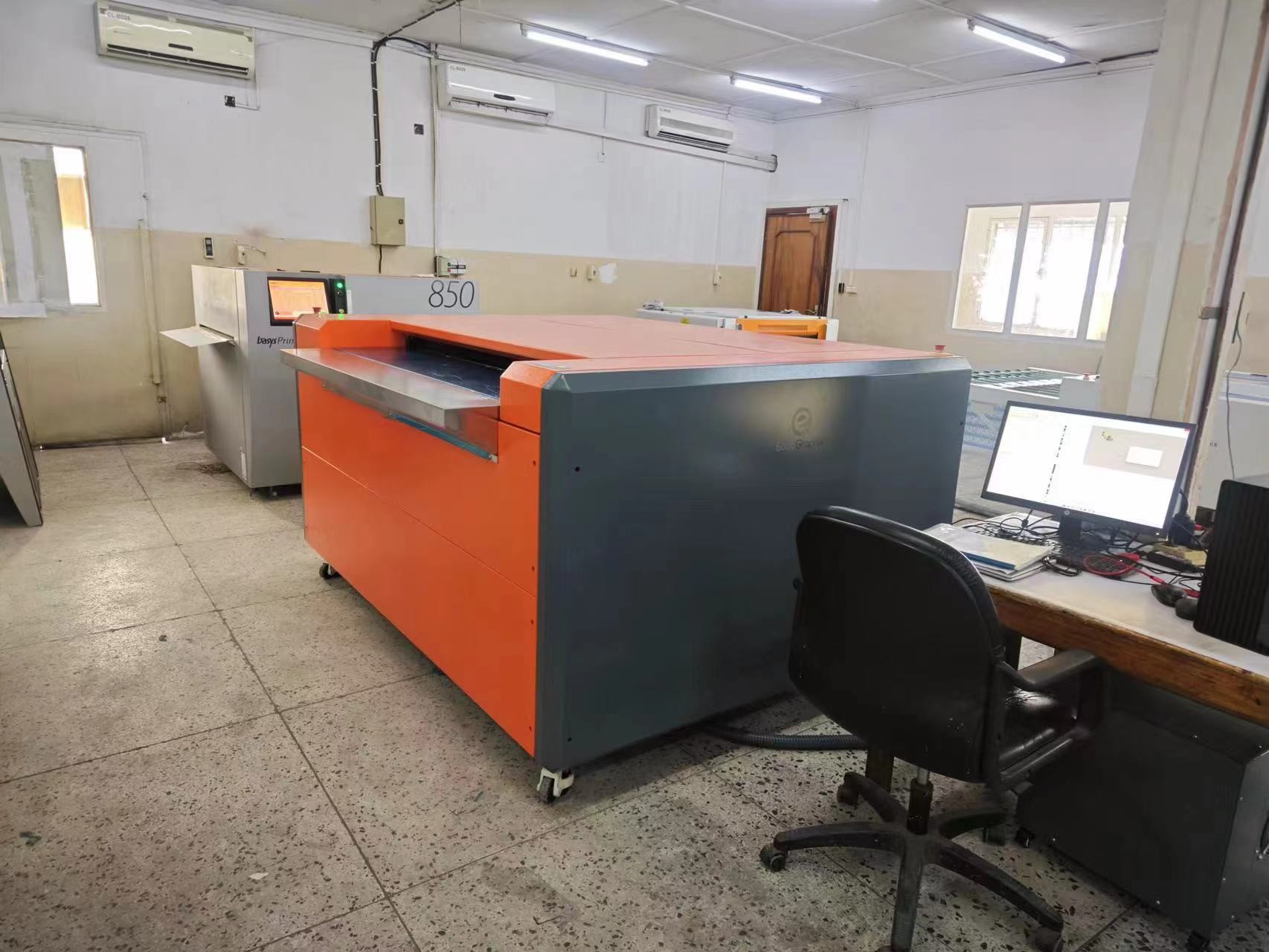

T-1600S 16PPH Large Format Prepress Thermal CTP Printing Machine

Product Description

Very Large Format T-1600S CTP 16PPH Thermal CTP Machine

EcooGraphix Thermal CTP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to print the CTP plate directly through the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

EcooGraphix VLF(Very Large Format) Thermal CTP Machine T-1600S can be used for B0 paper size posters or wall charts, large books, catalogs, yellow pages, packaging processing, and plate-making center, etc., with the output speed of 14-19 plates per hour.

Characteristic

Maximum Plate Size: 1470mm x 1180mm.

Features: Less manpower, high stability, and perfect output quality.

UV plate and thermal plate are available for you to lower production costs.

Specification

ECOO VLF (Very Large Format) T-1600S CTP Specifications
Model	T-1600S
Exposing Method	External Drum
Imaging System	64-channel
Imaging System	Discrete 830nm laser diode
Output Speed	16 plates/hour
	1470mm x 1180mm/ 2400dpi
Plate Sizes	Max. 1470mm x 1180mm; Min. 300mm x 400mm
Exposing Size	Max. 1454mm x 1164mm
Media Type	Positive Thermal CTP Plate
Plate Thickness	0.15mm to 0.30mm or 0.25mm to 0.40mm(alternative)
Resolution	2400dpi
Repeatability	±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface	USB 2.0 or USB 3.0(USB 2.0 is recommended)
Plate Loading	Semi-automatic (alternative autoloader system)
Net Weight	1400KG
Machine Size (WxLxH)mm	2355 x 1910 x 1217
Power Supply	Single Phase: 220V-240V, Power Consumption(Peak value): 5.5KW
Environment	Recommended temprature: 21-25℃; Allowed temperature: 15-30℃, Humidity: 40-70%RH
