Name: T-400QS 825nm Laser Integrated CTP Plate Machine With Single Cassette Autoloader
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: EcooSetter T-400QS
Price: 150000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Type: CTP Machine

Plate Sensitivity: 120mj/square Centimeters

Throughout: 25plates/hour, 800 X 660mm, 2400dpi

Plate Sizes: Max. 800mm X 660mm, Min. 270mm X 270mm

Repeatability: 0.01mm

Resolutions: Standard: 2400 Dpi Or 1200 Dpi

Plate Thickness: 0.15mm, 0.30mm

Interface: Optical Fiber(Fiberway)

Highlight:

825nm Laser Integrated CTP Plate Machine

Single Cassette Autoloader CTP Plate Machine

T-400QS CTP Plate Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: EcooSetter T-400QS

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 1000 Sets/Year

Gallery

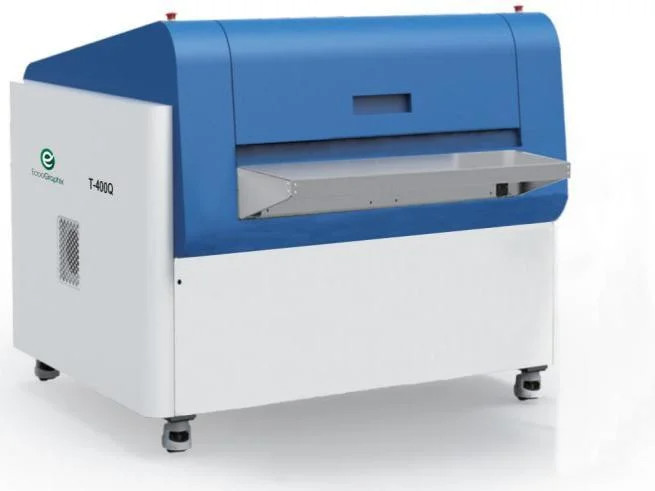

T-400QS 825nm Laser Integrated CTP Plate Machine With Single Cassette Autoloader

Product Description

T-400QS Online Automatic CTP Machine With Single Cassette Autoloader Integrated

Overall Performance Improvement

Linear Motor
In addition to high acceleration, linear motor drive offers extremely stable operation and high positioning accuracy.

Motor Direct Drive Drum
The application of direct motor driving drum technology accelerates start-up time and greatly improves production efficiency.

Full-automatic Plate Making With Inline Punch Option

Equipped with automatic plate loading and unloading, automatic feeding, and automatic punching function(as an option), it can work continuously without interruption to maximize performance.

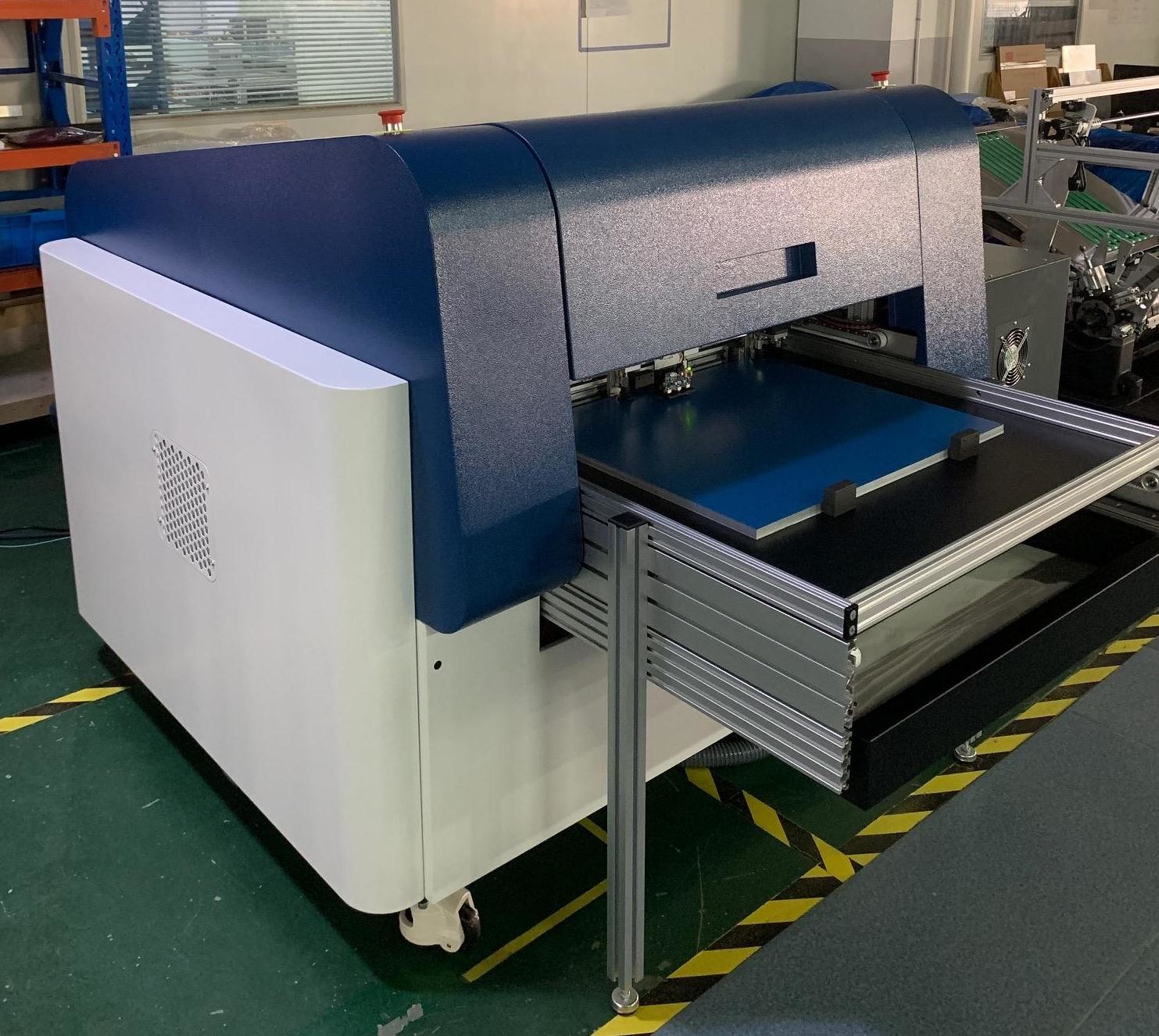

Automatic Plate Loading Cassette
Large capacity automatic plate loading system can load 100 plates at the same time, and also a manual plate insert path is
Included.

Specification

Model	T-400QS
Exposing Method	External Drum
Imaging System	825nm laser
Throughput	800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm²
Plate Sizes	Max. 800mm x 660mm Min. 270mm x 270mm
Plate Thickness	0.15mm, 0.30mm
Resolution	Standard: 2400 dpi or 1200 dpi
Repeatability	0.01mm
Interface	Optical Fiber(Fiberway)
Plate Loading	Standard: single cassette autoloader with manual plate insert function
Inline punching System	Optional feature(available upon request): Internal punching(maximum four sets of punch holes)
Machine Size (W x L x H)mm	1450 x 1950 x 1290(additional 600mm length for conveyor to wash unit)
Power Supply	CTP(Single phase: 220V, Max. power(Peak Value): 4KW) Simplified Autoloader(Single phase: 220V; Max. power(Peak Value): 900W) Multi-cassette Autoloader(Single phase: 220V; Max. power(Peak Value): 1100W)
Operation Environment	Recommended: 21-25ºC, Allowable temperature: 15-30ºC, Relative humidity: 40-70%
