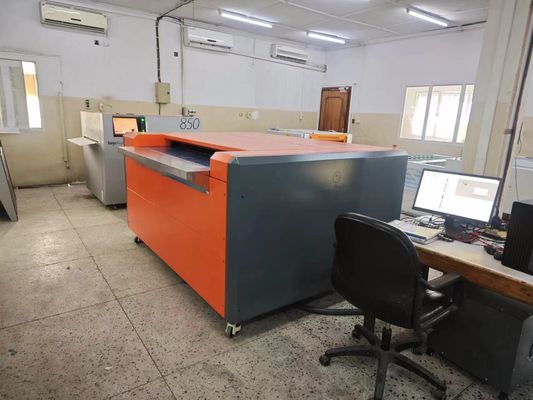

128 Channel Online CTCP/ UV-CTP Plate Machine
Maximum Plate Size: 1680mm x 1350mm
Features: Less manpower, high stability, and perfect output quality.
UV plates are available for you to lower production costs.
Specification
| ECOO VLF(Very Large Format) UV-1600MX CTP Specifications | |
| Model | UV-1600MX |
| Exposing Method | External Drum |
| Imaging System | 128-channel |
| Discrete 400-410nm laser diode | |
| Output Speed | 22plates/hour |
| 1630mm x 1325mm/ 2400dpi | |
| Plate Sizes | Max. 1680mm x 1350mm; Min. 650mm x 550mm |
| Exposing Size | Max. 1680mm x 1336mm |
| Media Type | Positive UV-CTP plate |
| Plate Thickness | 0.15mm to 0.30mm or 0.27mm to 0.40mm(alternative) |
| Resolution | 2400dpi |
| Repeatability |
± 5μm(continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
| Interface | USB 2.0 or USB3.0(USB2.0 is recommended) |
| Plate Loading | Semi-automatic(alternative autoloader system) |
| Net Weight | 1800kg |
| Machine Size (WxLxH)mm | 2400 x 1760 x 1110 |
| Power Supply | Three phases: 380V, Max. power(Peak value): 5.5W |
| Environment |
Recommended temperature: 21-25ºC; Allowed temperature: 15-30ºC, Humidity: < 70%RH |
Application
EcooGraphix CTCP(Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing.
It can output the images on the computer to print the UV plate directly through the UV-CTP machine and save the film and labor.
With the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability,
less space occupied with more flexibility.
EcooGraphix VLF(Very Large Format) CTCP Machine UV-1600MX can be used for B0 paper size Posters or Wall-charts,
Large Books, Catalogue, Yellow pages, Packaging processing, Plate-making center, etc., with the output speed of 22 plates
per hour.
Major Highlights
1) Superior dot-quality reproduction proven by the worldwide market:
1%-99% dot reproduction; Up to 250lpi screening, 2400 dpi or 1200dpi optional.
2) Fully qualified: for any thermal non-process plate and process plates.
3) Robustness and simplicity: robust machine and easy to use. User-friendly and simple design to avoid human error.
4) Worldwide top-class components and parts supplied by international well-known suppliers from Japan, USA
and Germany.
5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours.
(Approximately 20,0000 plates)
6) Long warranty of the machine: 3-year warranty (free replacement of all parts)
Low Cost of Parts: After the 3-year warranty, parts are available at very low costs. For example, the laser diode is priced at just US$250 per piece.
7) Guaranteed service: installation and training conducted by a technical engineer from the factory, ensuring the best setup and
training to be achieved. Regular remote maintenance is to be conducted every 2 months. Proactively revisited by engineers
to be conducted. 7x24 hours service response.
