Name: LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO LL320
Price: 250,000.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Type: Label Printing Machine

Print Technology: 4 Color(Cmyk) LED Technology

Print Speed: Up To 7.26 Meters/Min(30FT/Min)

Print Quality: 1200x2400dpi

Print Width: Min. 210mm, Max. 308mm

Print Length: Min. 98mm, Max. 1200mm

Preparing Time: Less Than 28s

Media Width: 320mm

Highlight:

30Ft Per Min Label Printing Machine

4 Colors Label Printing Machine

Label Printing Machine 1200x2400dpi

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO LL320

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

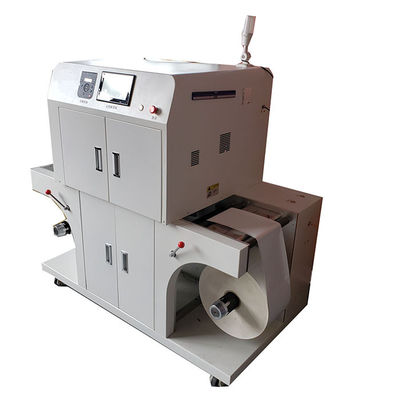

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi

Product Description

30ft/min 4 Colors Automatic Digital Label Printing Machine For Paper/Film

Introduction

With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized. Label printing companies and some enterprises need digital label printers to save printing costs and time costs. Lack of labor force, the operators who are professional for traditional printing machines are becoming less and less, The advantage of digital products is that easy to operate and maintain gradually enter the label printing market, and will replace the traditional printing press step by step. Ecoo Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.

Specification

Digital Label Printing Machine

Model
ECOO LL320

Print speed
Up to 7.26 meters/min (30ft/min)

Print technology
4 Color(CMYK) LED technology

Preparing time
Less than 28s

Printer processor
533MHz

Data port
(Standard)10BASE-T/ 100BASE-TX, USB2.0; (Options)Internet 1000BASE-T, IEEE1284-B

Media width
320mm

Print width
Max. 308mm, Min. 210mm

Print length
Max. 1200mm, Min. 98mm

Substrate types Paper:
Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS.
All of the media was tested in a special environment, not tested media possibly can't be used.

Print Quality
1200x2400dpi

Toner supplies
CMY-18500 sheets(A4, 5% coverage rate); K-26000 sheets(A4, 5% coverage rate); (Rated according to ISO/IEC 19798 guidelines)

Drum supplies
CMYK-100000(Print runs according to the operating cycle, Medium size, and the direction to change)

Size
1400*810*1600mm

Weight Print engine:
423KGS

Operating environment

Temperature: 20ºC-23ºC, Humidity: 45-55% RH

Power supply
110-127 VAC, 50-60Hz @ 2800W; 220-240 VAC, 50-60Hz @ 2800W

Power consumption
(AC220-240V)Sleep 75W; Waiting 100W; Running 1100W

Monthly running job
Max. 20000sqm(advice)

Warranty
1 year(excluding high consumable parts)

Consumables:

Toner K:
Print 26 sheets A4 with 5% coverage

Toner CMY:

Print 18.5K sheets A4 with 5% coverage

Drum:
100K sheets A4

Waste box:
300k sheets A4

Transfer cleaner:
200k sheets A4

Transfer roller:
200k sheets A4

Developer CMYK:
480k sheets A4

Developer house:
480k sheets A4

Fuser:
480k sheets A4

Transfer belt Assy:
480k sheets A4

Digital Label Printing Machine
Model	ECOO LL320
Print speed	Up to 7.26 meters/min(30ft/min)
Print technology	4 Color(CMYK) LED technology
Preparing time	Less than 28s
Printer processor	533MHz
Data port	(Standard)10BASE-T/ 100BASE-TX, USB2.0; (Options)Internet 1000BASE-T, IEEE1284-B
Media width	320mm
Print width	Max. 308mm, Min. 210mm
Print length	Max. 1200mm, Min. 98mm
Substrate types	Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS.
All of the media was tested in a special environment, not tested media possibly can't be used.
Print Quality	1200x2400dpi
Toner supplies	CMY-18500 sheets(A4, 5% coverage rate), K-26000 sheets(A4, 5% coverage rate); (Rated according to ISO/IEC 19798 guidelines)
Drum supplies	CMYK-100000(Print runs according to the operating cycle, Medium size, and the direction to change)
Size	14008101600mm
Weight	Print engine: 423KGS
Operating environment	Temperature: 20ºC-23ºC, Humidity: 45-55% RH
Power supply	110-127 VAC, 50-60Hz @ 2800W; 220-240 VAC, 50-60Hz @ 2800W
Power consumption	(AC220-240V)Sleep 75W; Waiting 100W; Running 1100W
Monthly running job	Max. 20000sqm(advice)
Warranty	1 year(excluding high consumable parts)
Consumables: Toner K: print 26 sheets A4 with 5% coverage Toner CMY: print 18.5K sheets A4 with 5% coverage Drum: 100K sheets A4 Waste box: 300k sheets A4 Transfer cleaner: 200k sheets A4 Transfer roller: 200k sheets A4 Developer CMYK: 480k sheets A4 Developer house: 480k sheets A4 Fuser: 480k sheets A4 Transfer belt Assy: 480k sheets A4

Software Features

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 1

To get high-quality printing, Ecoo researched and developed typical and easy printer software for LL320. This software has a friendly interface and is easy to understand. Automatically edit jobs together, integrated with programmatic printing. PhaserMatch 5 color management system was nested into printing software. You can get the best image label and finish the jobs easily.

Auto Web Guide Tension System

Producing And Packaging

From production to delivery, we carefully make every detail to guarantee good product quality and service to customers.

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 2

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 3

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 4

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 5

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 6

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 7

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 8

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 9

Certifications

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 10

LL320 4 Colors 30Ft Per Min Label Printing Machine 1200x2400dpi 11

FAQ

Q1: What are your main products?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory?

A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: How long is the lead time?

A: The lead time is normally 30 days. We can accelerate for emergency cases.

Q4: Is there any certification for your machine?

A: Yes, all our machines have been certified by SGS and CE.

Q5: How long is the warranty period?

A: EcooGraphix guarantees 1 year of warranty for the laser head and spare parts.

Q6: What is your normal payment term?

A: Normally, 30%TT deposit, 70% before shipping, or LC at sight.

Q7: What about the installation and after-sales technician support?

A: Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets, the service charge, and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and the EcooGraphix technical service team supports these installations remotely with regular onsite visits.

These end users' printers all run the CTP systems with satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle with installations, training, and after-sales service. We guarantee your satisfaction.
