Home /Products/CTP Plate Machine/EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter

EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter

1SET
MOQ
Negotiable
Price
EcooGraphix 2400dpi Thermal Computer To Plate Making Machine CTP Machine / Platesetter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Computer To Plate Making Machine
Exposing Mothod: External Drum
Plate Sizes: Max.800mm X 660mm Min. 400mm X 300mm
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi
Machine Size: 1900x1200x1000(WxLxH)mm
Highlight:

2400dpi Thermal Platesetter

,

EcooGraphix CTP Machine

,

2400dpi Thermal CTP Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter T-400
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Product Description

Thermal Computer To Plate Making Machine CTP Machine

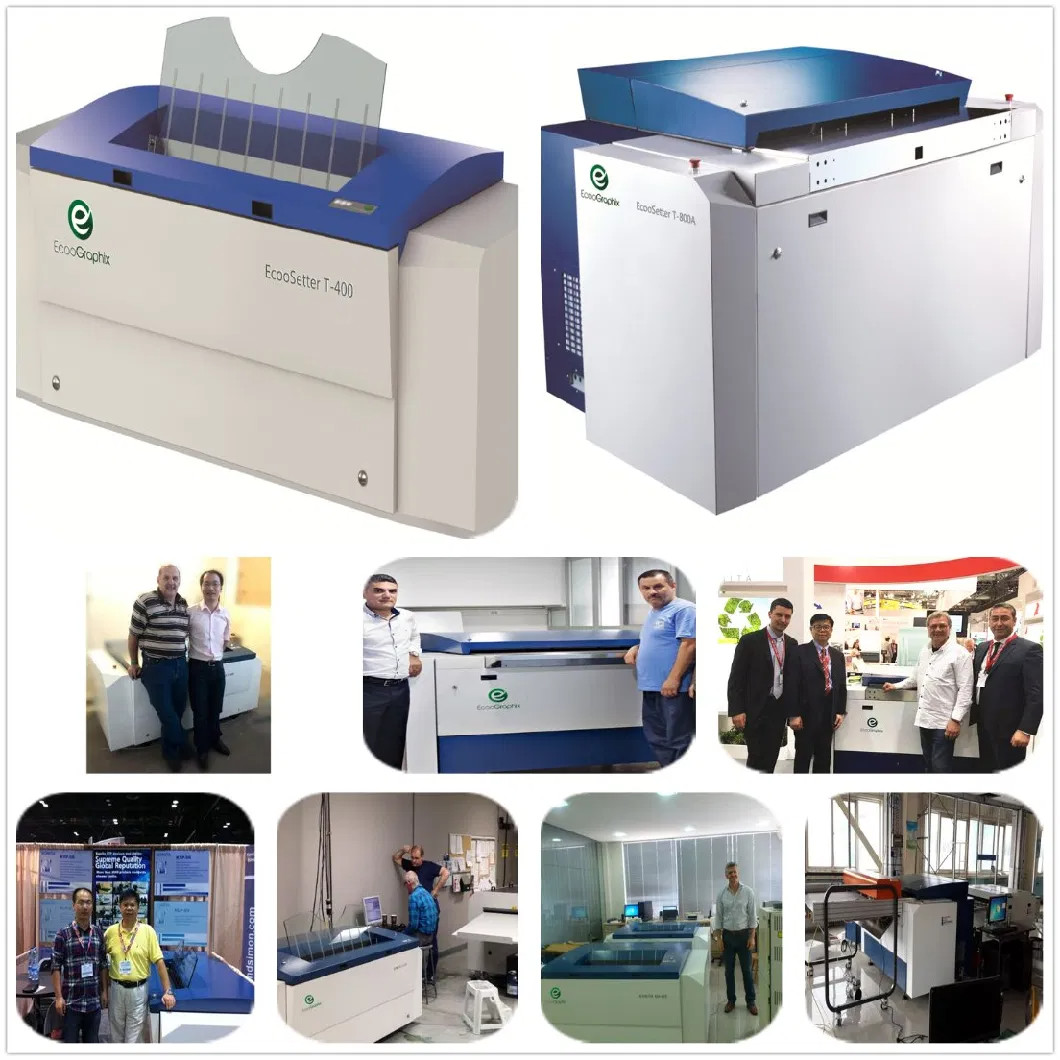

The Thermal-CTP T-400 series is the most popular CTP and one of the best sellers. It is suitable for middle/small printing factories. It is the first Prepress necessity for quick short-run offset printing. It can output images on the computer to print the CTP plate directly through the CTP machine, saving film and labor.



Features:

-Little space occupied, more flexible
-Small volume, high stability, and perfect output quality
-Different speed settings to satisfy different demands.



Specification

EcooGraphix T-400 Series Thermal CTP Specifications
Model T-400F T-400S T-400E
Imaging System 48 channel 32 channel 24 channel
Output Speed 28pph 22pph 16pph
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900×1200×1000mm(W×D×H)
Power Supply single-phase: 260AC, +6%-10%; Power Consumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH
Tag:

offset printing ctp machine

offset printing ctp plate machine

automatic computer to plate machine
